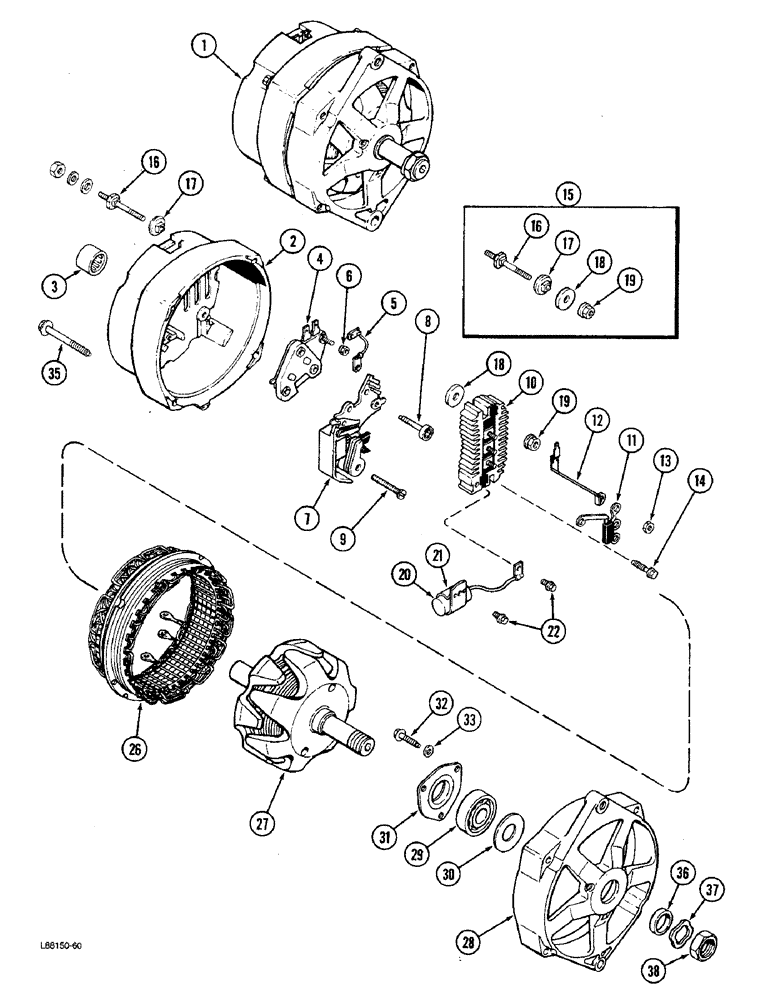

Запчасти Case W36 (3-78) - L101465 ALTERNATOR, METRIC EXTERNAL THREADS, 40 AMPERE - 24 VOLT (03) - FUEL SYSTEM

1

A47484

ALTERNATOR

ALTERNATOR ASSEMBLY - remanufactured, Includes: Ref. 2 - 38

1шт.

1

A47485

CORE-ALTERNATOR

RETURN NUMBER - Use this part number to return alternator core for credit

1шт.

1

L101465

ALTERNATOR

ALTERNATOR ASSEMBLY (Delco-Remy no. 1103123) (Without fan and pulley), Includes: Ref. 2 - 38

1шт.

2

A47595

FRAME

FRAME ASSEMBLY - slip ring end, Includes: Ref. 3

1шт.

3

A47578

ROLLER BEARING,0.6694" ID x 0.937" OD x 0.73"

BEARING - roller

1шт.

4

A46890

REGULATOR

REGULATOR - voltage (Replaces A45372)

1шт.

5

A45369

ELECTRICAL WIRE

WIRE LEAD - regulator

1шт.

6

A45368

NUT

NUT - lead to regulator stud

1шт.

7

A47042

HOLDER

HOLDER ASSEMBLY - brush, with brushes

1шт.

8

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

SCREW - brush holder (Insulated)

2шт.

9

A47043

SCREW,#8 - 32 x 21"

SCREW - brush holder (Grounded)

1шт.

10

A45394

RECTIFIER

BRIDGE ASSEMBLY - rectifier

1шт.

11

A48339

DIODE

DIODE - trio (Replaces A45219)

1шт.

12

A47045

TERMINAL CONNECTOR

TERMINAL - relay

1шт.

13

129-16

NUT,#8-32

NUT, , Diode trio to rectifier bridge #8-32

3шт.

14

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

SCREW - rectifier bridge

1шт.

15

A47597

TERMINAL CONNECTOR

TERMINAL ASSEMBLY - battery, Includes: Ref. 16 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

STUD - terminal

1шт.

17

NSS

NOT SOLD SEPARAT

INSULATOR - terminal stud

1шт.

18

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY - outer

1шт.

19

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY - inner

1шт.

20

A47734

CAPACITOR

CAPACITOR ASSEMBLY (Replaces A45017), Includes: Ref. 21

1шт.

21

A45227

CLAMP

BRACKET - capacitor

1шт.

22

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW - capacitor mounting and lead

2шт.

26

A45233

STATOR

STATOR ASSEMBLY - alternator (Replaces A47048)

1шт.

27

A47050

TORQ CONV IMPELLER

ROTOR ASSEMBLY

1шт.

28

A46933

FRAME

FRAME - drive end

1шт.

29

A49389

BEARING ASSY

BEARING - ball

1шт.

30

A45232

WASHER

SLINGER - grease

1шт.

31

A44433

PLATE

PLATE - ball bearing retainer

1шт.

32

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

SCREW - retainer plate, (Special) No. 10-24 x 3/8 inch

3шт.

33

195-512

WASHER,#10

WASHER - retainer plate screw

3шт.

35

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

BOLT - no. 10-24 x 1-3/4 inch

4шт.

36

A49733

COLLAR

COLLAR - rotor shaft

1шт.

37

R16171

SPRING WASHER

WASHER - lock, drive pulley and fan

1шт.

38

A25546

NUT

NUT - pulley and fan retaining

1шт.
