Запчасти Case W36 (3-70) - FUEL INJECTOR NOZZLE, 504BDTI ENGINE, WHITE COLOR CODE IDENTIFICATION (03) - FUEL SYSTEM

A156329

NOZZLE INJECTION

NOZZLE ASSEMBLY - fuel injection, Includes: Ref. 1 - 11

6шт.

1

NSS

NOT SOLD SEPARAT

NOZZLE ASSEMBLY - fuel injection, American Bosch (Order A156329), Includes: Ref. 2 - 11

1шт.

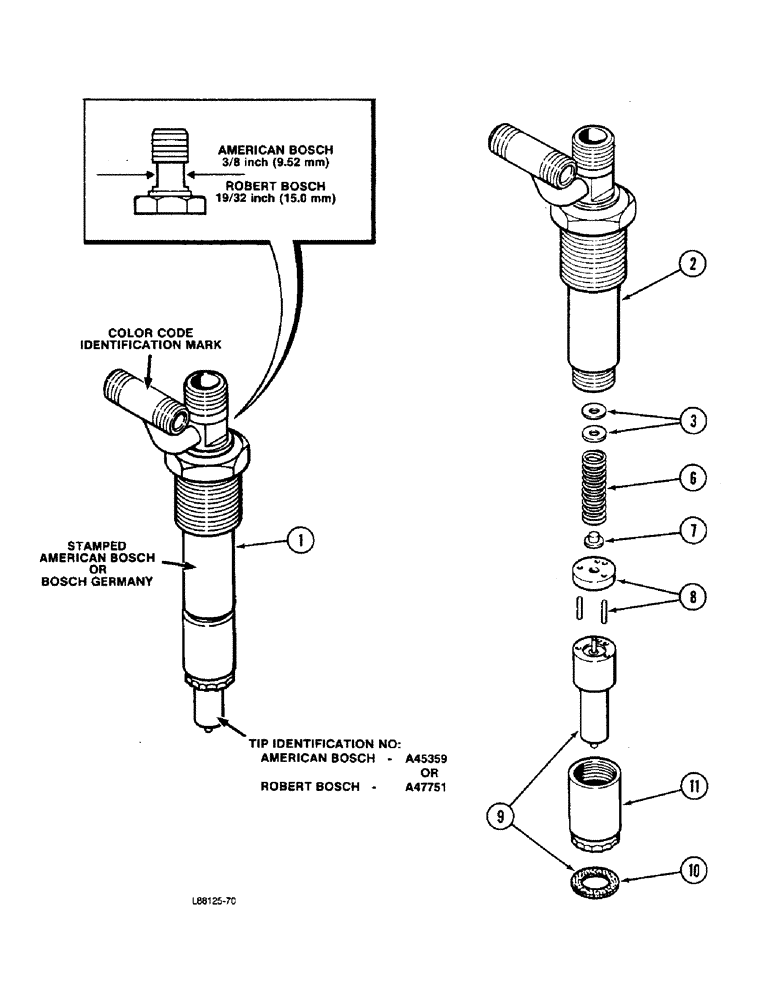

American Bosch and Robert Bosch injector nozzle components are not interchangeable. See illustration for identification.

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A156329)

1шт.

A44860

SHIM

KIT - shim, nozzle opening pressure (One kit required to repair six nozzles)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 0.062 inch (6 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 0.002 inch (80 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 0.007 inch (50 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 0.010 inch (50 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 0.025 inch (20 in kit)

1шт.

6

A44864

SPRING

- nozzle pressure adjusting

1шт.

7

A44863

SEAT

- nozzle pressure adjusting spring

1шт.

8

A44862

VALVE

STOP - nozzle assembly, with pin

1шт.

9

A45359

NOZZLE CAP

TIP ASSEMBLY - nozzle injector

1шт.

10

A76640

GASKET

- nozzle

1шт.

Whenever nozzle is removed from head, A76640 gasket must be replaced before nozzle is installed back in head.

1шт.

11

A44861

NUT

NUT - nozzle end

1шт.
