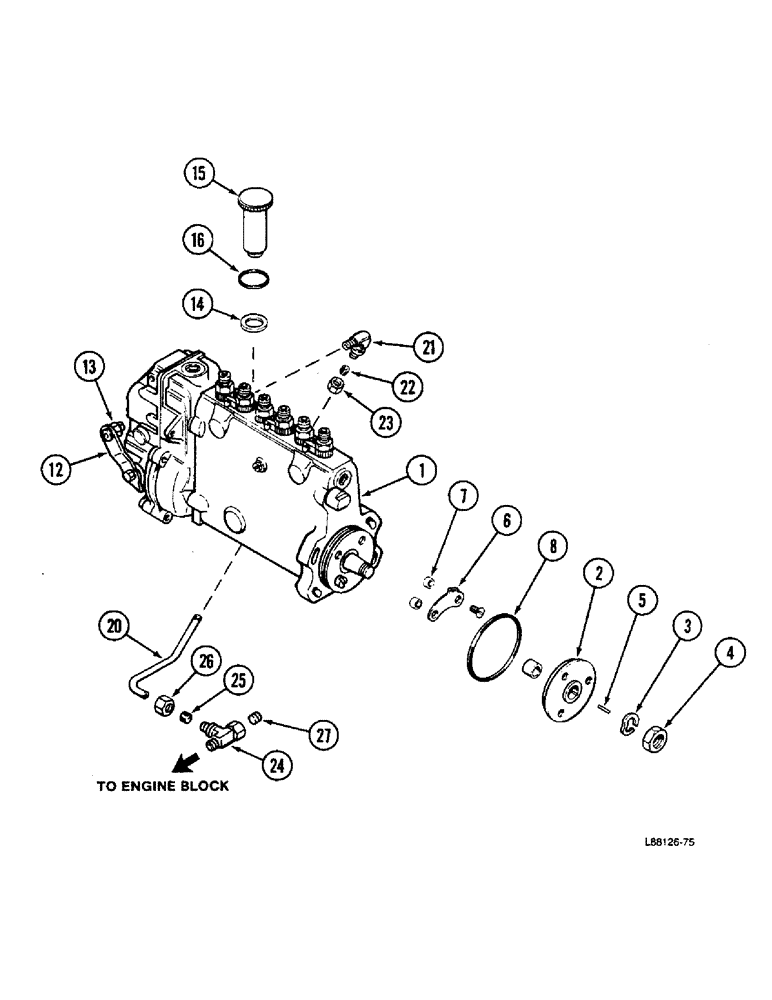

Запчасти Case W36 (3-68) - FUEL INJECTION PUMP, 504BDTI ENGINE (03) - FUEL SYSTEM

1

A150042

PUMP

ASSEMBLY - injection, with push type lever, 2200 RPM, Includes: Ref. 2 - 16

1шт.

1

A166260

PUMP, FUEL INJECTION

PUMP ASSEMBLY - injection, with pull type lever, 2200 RPM, Includes: Ref. 2 - 16

1шт.

2

A41857

HUB

- pump drive

1шт.

3

A41851

LOCK WASHER

- lock, hub nut

1шт.

4

A41852

LOCK NUT

- hub retaining

1шт.

5

A41850

KEY

- hub to pump shaft

1шт.

6

A41858

INDICATOR

POINTER - hub adjustment

1шт.

7

A41859

BUSHING

SPACER - pointer

2шт.

8

A41856

O-RING,3mm Thk x 75mm ID

- 3 x 3-3/16 x 1/8 inch

1шт.

12

A66116

CABLE

LEVER - fuel shut-off

1шт.

REF. 12 A66116 LEVER USES A59101 STOP CONTROL PIVOT

1шт.

13

814-4008

BOLT,Hex, M4 x 0.7 x 8mm, Cl 8.8, Full Thd

- hex, control cable, 4M x 8 MM

1шт.

REF. 13 814-4008 BOLT DOES NOT GO INTO THE TOP HOLE IN A66116...IT GOES THROUGH THE BOTTOM HOLE INTO THE PUMP

1шт.

14

A43351

SEAL

- hand primer, copper

2шт.

15

A43343

CARTRIDGE

PRIMER ASSEMBLY - hand pump, Includes: Ref. 16

1шт.

16

A45342

GASKET

- and primer (Rubber)

1шт.

20

A136903

TUBE

- lube, oil gallery to injection pump

1шт.

21

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSEMBLY - lube tube, Includes: Ref. 22 and 23

1шт.

22

222-102

SLEEVE,1/4" Tube

1шт.

23

87017024

TUBE NUT,1/2"-24

NUT - for 1/4 inch tube

1шт.

24

222-82

TEE,1/2"-12 Male x 1/8 NPT Fem Run x 1/8 NPT Br

ASSEMBLY - lube tube (In oil gallery), Includes: Ref. 25 and 26

1шт.

25

222-102

SLEEVE,1/4" Tube

1шт.

26

87017024

TUBE NUT,1/2"-24

NUT - for 1/4 inch tube

1шт.

27

221-849

PLUG,Hex Soc, 1/8"-27

- socket head, 1/8 inch PT

1шт.
