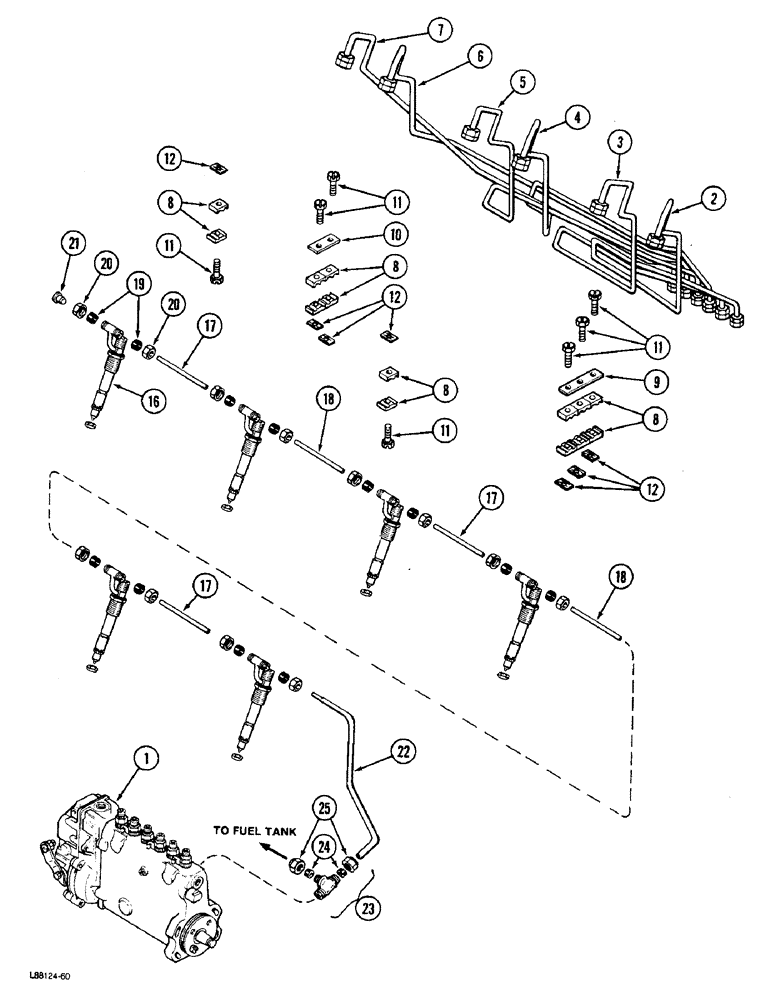

Запчасти Case W36 (3-62) - FUEL INJECTION SYSTEM, 504BDTI ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Fig. 3-66)

1шт.

2

A156879

NOZZLE INJECTION

TUBE - fuel injection, no. 1 cylinder (Replaces A76645)

1шт.

3

A156880

TUBE ASSY.

TUBE - fuel injection, no. 2 cylinder (Replaces A76646)

1шт.

4

A156881

TUBE

- fuel injection, no. 3 cylinder (Replaces A76647)

1шт.

5

A156882

TUBE

- fuel injection, no. 4 cylinder (Replaces A76648)

1шт.

6

A156883

TUBE

- fuel injection, no. 5 cylinder (Replaces A76649)

1шт.

7

A156884

TUBE

- fuel injection, no. 6 cylinder (Replaces A76650)

1шт.

8

A58709

BRACKET

CLAMP - injection tubes

14шт.

9

A58708

PLATE

- tie, injection tube brackets (For 6 lines)

1шт.

10

A58710

PLATE

- tie, injection tube brackets (For 4 lines)

1шт.

11

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

BOLT - tube bracket, slotted hex head no. 10 NC x 1 inch

7шт.

12

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - tube bracket bolts, Tinnerman, no. 10

7шт.

16

REF

INSTRUCTION

NOZZLE ASSEMBLY - fuel injectors (See Figure 3-68 and Fig.3-70)

6шт.

17

A76642

TUBE

- fuel leak-off line, 4-11/16 inch long

3шт.

18

A76641

TUBE

- fuel leak-off, 5-3/4 inch long

2шт.

19

222-101

SLEEVE,3/16" Tube

- for 3/16 inch tube

12шт.

20

222-111

TUBE NUT,7/16" - 24

NUT - for 3/16 inch tube

12шт.

21

47-37

RIVET,FH, 3/16" x 7/16"

PLUG - fuel leak-off line

1шт.

22

A153816

TUBE

- fuel leak-off line (No. 1 nozzle to injection pump) (Replaces A136189)

1шт.

23

A59097

VALVE

ASSEMBLY - check (One way valve), Includes: Ref. 24 and 25

1шт.

24

222-102

SLEEVE,1/4" Tube

2шт.

25

87017024

TUBE NUT,1/2"-24

NUT - for 1/4 inch tube

2шт.
