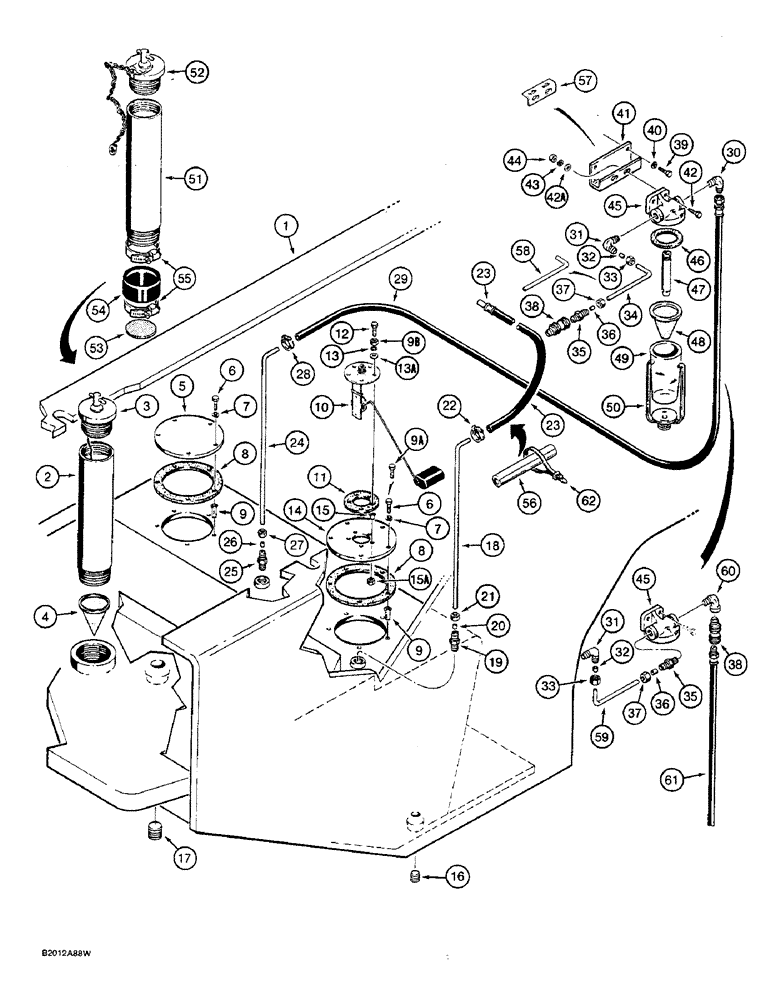

Запчасти Case W36 (3-58) - FUEL TANK AND FUEL LINES (03) - FUEL SYSTEM

1

REF

INSTRUCTION

FRAME - rear chassis, see Fig. 9-476, Includes: Ref. 2 - 17

1шт.

L71664

PIPE ASSY.

PIPE AND CAP - filler, use , Includes: Ref. 2 and 3, Serial Range: -9131058

1шт.

2

NSS

NOT SOLD SEPARAT

PIPE - filler

1шт.

3

L71465

FILLER CAP

CAP - filler pipe

1шт.

4

L52650

STRAINER ELEMENT

SCREEN - used with L71664 filler pipe and cap

1шт.

5

L79088

PLATE

- clean out, if used

1шт.

6

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

If used Hex, 1/4"-20 x 1 1/4", G5

10шт.

7

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal-external lock, 1/4", plated, if used

10шт.

8

L79876

GASKET,4.57mm Thk

- fuel tank

1-2шт.

9

L70575

NUT

- special, 1/4" - 20 NC, used, Serial Range: -9149605

10шт.

9a

L108414

BOLT

- special, used with L77441 plate on, Start Serial: 9149605

5шт.

9b

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - hex, lock, no. 10 - 32 NF, plated, if used

1шт.

10

L118306

TRANSMITTER

SENDER - fuel level

1шт.

11

A11822

GASKET

- sender, if used

1шт.

12

163-4

SCREW,Hex, #10 - 32 x 5/8"

BOLT - hex head, no. 10 - 32 NF x 5/8", used with L13193 plate

5шт.

12

163-1

SCREW

BOLT - hex head, no. 10 - 24 NC x 5/8", used with L77441 plate, Serial Range: -9149605

5шт.

13

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, , If used Int Tooth, #10

5шт.

13a

L115306

WASHER

- special, used with L77441 plate

5шт.

14

L13193

LARGE PLATE

PLATE - used, Serial Range: -9131058

1шт.

14

L77441

PLATE

- used on, Start Serial: 9131058

1шт.

15

L13194

NUT

NUT - special, no. 10 - 32 NF, used with L13193 plate

5шт.

15a

86625057

NUT,#10-24, GB

NUT, LOCK, , Used with L77441 plate #10-24, GB to 9149605

5шт.

16

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - square socket head, 3/4" NPT

1шт.

17

221-38

PLUG,Sq Soc, 1 1/2"-11 1/2, NTPF

- square socket head, 1-1/2" NPT

1шт.

18

L70400

FUEL TUBE,0.25" OD x 19.6, 1.4" L

TUBE - return

1шт.

222-639

FITTING,7/16"-24 x 1/4" NPT, Comp

ASSEMBLY - straight, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

20

222-652

SLEEVE,1/4" Tube, Comp

- fitting

1шт.

21

222-662

TUBE NUT,7/16"-24, 45 Degree Fl, Comp

COMPRESSION NUT - fitting

1шт.

22

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

1шт.

23

L71044

HOSE

- 1/4" (6 mm ID x 34" (864 mm) long

1шт.

24

L71206

TUBE,0.375" OD x 20, 1.8" L

- supply

1шт.

222-638

FITTING,9/16"-24 x 3/8" NPT, Comp

- straight, Includes: Ref. 25 - 27

1шт.

25

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

26

222-654

FERRULE,3/8" Tube, Comp

- fitting

1шт.

27

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

COMPRESSION NUT - fitting

1шт.

28

214-251

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP - hose

1шт.

29

L71204

FUEL HOSE

HOSE - 3/8" (10 mm) ID x 46" (1168 mm) long, no longer available, order L104812 fuel hose kit, see below

1шт.

30

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree male

1шт.

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

FITTING - 90 degree, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

32

222-104

SLEEVE,3/8" Tube

- fitting

1шт.

33

222-114

NUT,5/8"-24

COMPRESSION NUT - fitting

1шт.

34

L71690

FUEL TUBE,0.375" OD x 6.2, 2.1" L

TUBE - fuel, used with L71842 bracket, Ref. 41

1шт.

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

FITTING - straight, Includes: Ref. 35 - 37

1шт.

35

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

36

222-104

SLEEVE,3/8" Tube

- fitting

1шт.

37

222-114

NUT,5/8"-24

COMPRESSION NUT - fitting

1шт.

38

L17627

VALVE

- check

1шт.

39

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

40

92-6

LOCK WASHER,3/8"

2шт.

41

L71842

BRACKET

- sediment bowl, used, Serial Range: -9133902

1шт.

41

L71842

BRACKET

- sediment bowl, used, Serial Range: -9133901

1шт.

42

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2-4шт.

42a

95-4

WASHER,1/4"

- flat, 1/4"

2-4шт.

43

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2-4шт.

44

25-104

NUT,1/4"-20, G5

2-4шт.

R18798

STRAINER ELEMENT

SEDIMENT BOWL - fuel, Includes: Ref. 45 - 50

1шт.

45

R21356

HOUSING

BODY - sediment bowl

1шт.

46

R21357

GASKET

- sediment bowl

1шт.

47

R21360

TUBE,0.687" DIA x 3.344" L

- sediment bowl

1шт.

48

R21359

FILTER SCREEN

SCREEN - sediment bowl

1шт.

49

R21361

BOWL

- sediment bowl

1шт.

50

R21358

CLAMP

BAIL - sediment bowl

1шт.

NSS

NOT SOLD SEPARAT

PIPE AND CAP - filler, used, order Refs. 51 and 52 below, Includes: Ref. 51 and 52, Start Serial: 9131058

1шт.

51

L77269

PIPE

- filler

1шт.

52

L74929

FILLER CAP

CAP, FILLER - fuel tank - Pipe

1шт.

53

L77398

STRAINER ELEMENT

SCREEN - used with L77269 filler pipe

1шт.

54

L77270

HOSE,89.00 mm ID x 102.00 mm, SAE 30R2

89 mm ID x 102 mm, SAE 30R2, Filler Pipe

1шт.

55

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose

2шт.

56

L79780

HOSE

GUARD - hose, 3/8" (9.5 mm) ID x 7-1/2" (191 mm) long

1шт.

57

L101076

BRACKET

- sediment bowl, used, if sed, Serial Range: -9133901

1шт.

57

L101076

BRACKET

- sediment bowl, used, if sed, Serial Range: -9133903

1шт.

58

L101072

FUEL TUBE,0.375" OD x 6.2, 1.9" L

TUBE - fuel, used with L101076 bracket, Ref. 57

1шт.

59

L105998

FUEL TUBE,9.52 mm OD x 207, 47 mm L

TUBE - fuel, used when L17627 check valve, Ref. 38, is located at sediment bowl inlet

1шт.

60

221-412

ELBOW,90 Degree, 1/4"-27, NPT

STREET ELBOW - 90 degrees

1шт.

61

L104802

FUEL HOSE,9.53 mm ID x 1168.00 mm, SAE 30R3

Supply 9.53 mm ID x 1168.00 mm, SAE 30R3

1шт.

62

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

L104812

FUEL HOSE

KIT - fuel supply hose, includes Refs. 59-61 above

1шт.
