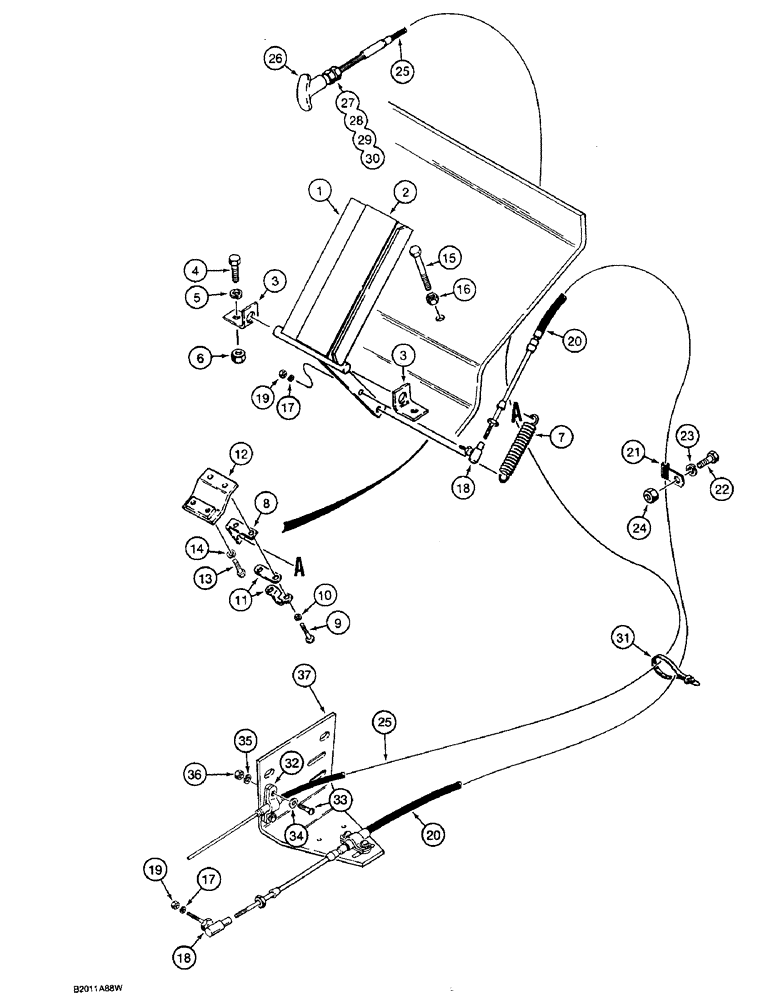

Запчасти Case W36 (3-56) - THROTTLE AND LINKAGE, P.I.N. 9161226 AND AFTER (03) - FUEL SYSTEM

1

L114144

PEDAL ASSY.

PEDAL - accelerator

1шт.

2

D55216

PAD,2" x 9"

PAD - accelerator pedal

1шт.

3

L73462

BRACKET

- accelerator pedal

2шт.

4

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

7

L78607

SPRING

- return, accelerator

1шт.

8

L114523

BRACKET

- spring return, accelerator

1шт.

9

182-147

SCREW,Sl Pan Hd, #10 - 32 x 3/4"

- machine, pan head slotted, no. 10-32 NF x 3/4"

2шт.

10

192-107

LOCK WASHER,#10

WASHER - light lock, no. 10

2шт.

11

L12441

CLAMP

- two piece, accelerator cable

1шт.

12

L114336

BRACKET

- cable mounting, accelerator, front

1шт.

13

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

14

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

15

113-202

BOLT,Hex, 3/8" - 16 x 4", Gr 5

Hex, 3/8"-16 x 4", G5

1шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

17

192-107

LOCK WASHER,#10

WASHER - light lock, no. 10, plated

2шт.

18

L12437

BALL JOINT,#10 - 32 x 7/8"

JOINT - ball, accelerator linkage

2шт.

19

129-37

NUT,#10-32

2шт.

20

L114650

CABLE

ASSEMBLY - accelerator

1шт.

21

49845

CLAMP

- accelerator cable

1шт.

22

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

L105315

CABLE

ASSEMBLY - fuel shutoff, has grooved tube on lower end, Includes: Ref. 25 - 30

1шт.

25

NSS

NOT SOLD SEPARAT

CABLE - fuel shutoff

1шт.

26

L32679

HANDLE

- tee

1шт.

27

129-141

JAM NUT,Jam, 1/4"-20, G5

1шт.

28

L32866

SEAL

NUT - hex, special, 3/8" - 24 NF

1шт.

29

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

30

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex, jam, 3/8" - 24 NF, plated

1шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

32

L12441

CLAMP

- two piece, Serial Range: cable-bracket

2шт.

33

182-147

SCREW,Sl Pan Hd, #10 - 32 x 3/4"

MACHINE SCREW - pan head slotted, no. 10 - 32 NC x 3/4"

4шт.

34

195-516

WASHER,#12

- flat, no. 10, plated

4шт.

35

192-107

LOCK WASHER,#10

WASHER - light lock, no. 10, plated

4шт.

36

129-37

NUT,#10-32

4шт.

37

L114280

BRACKET

- cable, throttle, use existing hardware on engine

1шт.
