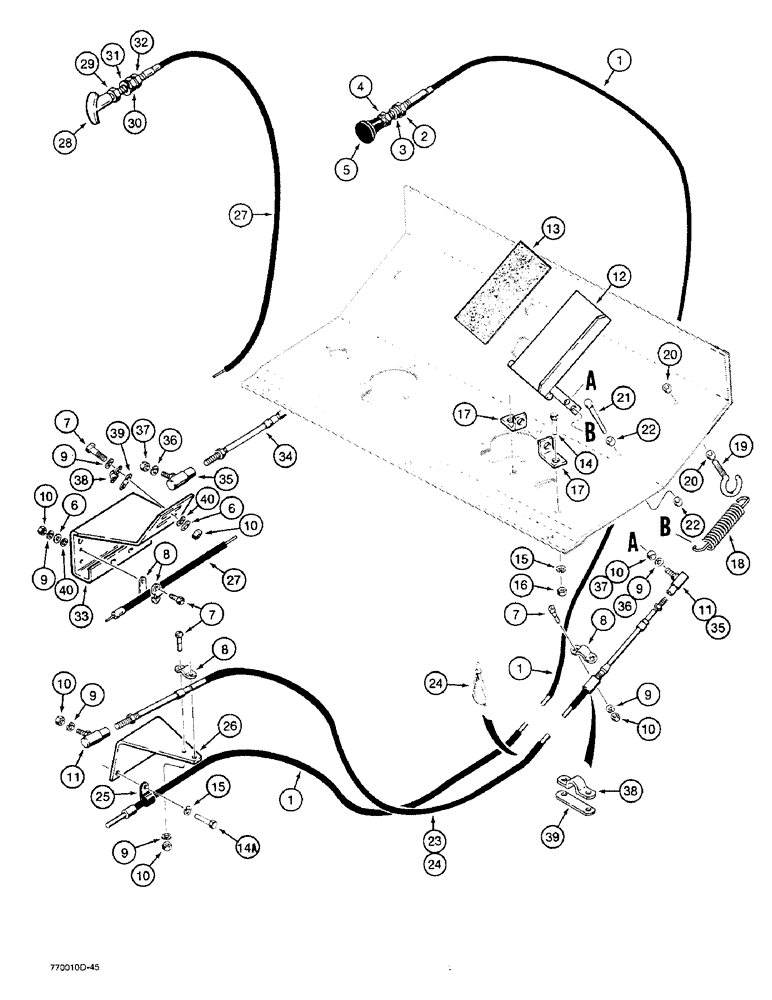

Запчасти Case W36 (3-54) - THROTTLE AND LINKAGE, PRIOR TO P.I.N. 9161226 (03) - FUEL SYSTEM

L71023

CABLE

ASSEMBLY - fuel shut off, has smooth tube on lower end, no longer available, order L105315 cable, L105287 bracket and L12441 clamp, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

CABLE - fuel shutoff

1шт.

2

NSS

NOT SOLD SEPARAT

NUT - hex, seal

1шт.

3

195-25

WASHER,3/8"

- flat, 3/8"

1шт.

4

25-156

JAM NUT,Jam, 3/8"-24, G5

JAM NUT - hex, 3/8" - 24 NF

1шт.

5

D77385

KNOB

- cable

1шт.

6

95-3

WASHER,#12

- flat, no. 10

4шт.

7

163-12

SCREW,Hex, #10 - 24 x 3/4"

- slotted hex head, no. 10-24 NC x 3/4"

8шт.

8

L12441

CLAMP

- used with L70993 and L105315 cables, includes spacer

1-2шт.

9

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4-6шт.

10

129-7

NUT,Hex, #10 - 24

- hex, no. 10-24 NC

4-6шт.

11

L12437

BALL JOINT,#10 - 32 x 7/8"

- used with L70993 cable

2шт.

12

L78609

PEDAL

- accelerator

1шт.

13

D55216

PAD,2" x 9"

PAD - accelerator pedal

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

14a

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

17

L73462

BRACKET

- accelerator pivot

2шт.

18

L78607

SPRING

- return, accelerator

1шт.

19

L78474

EYEBOLT

EYE BOLT - return spring

1шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

21

113-202

BOLT,Hex, 3/8" - 16 x 4", Gr 5

Hex, 3/8"-16 x 4", G5

1шт.

22

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

23

L70993

CABLE

- accelerator, no longer available, order L36204 kit below

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

25

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- used with L71023 cable assembly

2шт.

26

L48671

BRACKET

- throttle cable, Serial Range: -9133902

1шт.

26

L48671

BRACKET

- throttle cable, Serial Range: -9133901

1шт.

L105315

CABLE

ASSEMBLY - fuel shutoff, has grooved tube on lower end, Includes: Ref. 27 - 32

1шт.

27

NSS

NOT SOLD SEPARAT

CABLE - fuel shutoff

1шт.

28

L32679

HANDLE

- tee

1шт.

29

129-141

JAM NUT,Jam, 1/4"-20, G5

1шт.

30

L32866

SEAL

NUT - hex, special, 3/8" - 24 NF

1шт.

31

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

32

25-156

JAM NUT,Jam, 3/8"-24, G5

JAM NUT - hex, 3/8" - 24 NF

1шт.

33

L105287

BRACKET

- cable, rear, Start Serial: 9133901

1шт.

33

L105287

BRACKET

- cable, rear, Start Serial: 9133903

1шт.

34

L112450

CABLE

- accelerator, has 1/4" - 28 NF ends

1шт.

35

L101057

JOINT

BALL JOINT - used with L112450 cable

2шт.

36

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

37

129-37

NUT,#10-32

2шт.

38

L40314

CLAMP

- used with L112450 cable

2шт.

39

L40315

SHIM,5.55mm ID x 12.7mm OD x 2.28mm Thk

SPACER - clamp

2шт.

40

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

2шт.

L36204

KIT

- accelerator cable, includes Refs. 6 and 33-39 above, plus Refs. 42, 42A, 57 and 58 on Figure 3-60

1шт.
