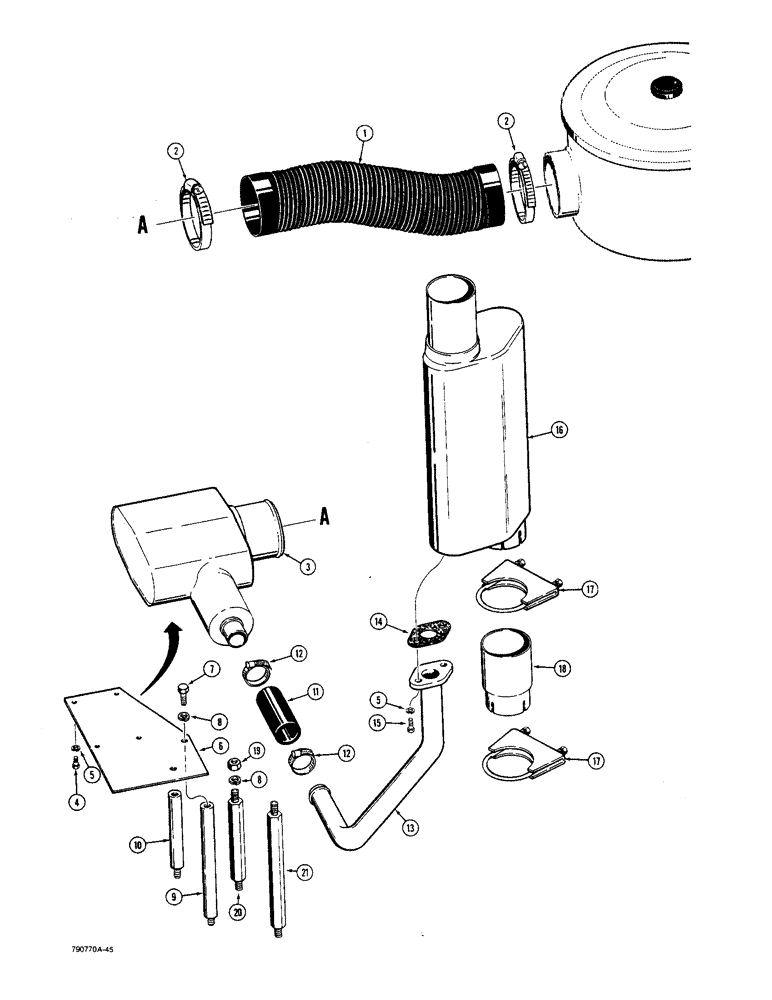

Запчасти Case W36 (2-52) - PRECLEANER FOR TURBOCHARGED ENGINE (02) - ENGINE

1

L115557

INTAKE AIR HOSE,139.70 mm ID x 609.60 mm

- Air Cleaner 139.70 mm ID x 609.60 mm

1шт.

2

214-275

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

CLAMP - hose

2шт.

3

A76869

CLEANER

PRECLEANER - engine

1шт.

4

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

5

92-6

LOCK WASHER,3/8"

6шт.

6

A76873

PLATE

- precleaner mounting

1шт.

7

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Used with Refs. 9 and 10 Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

A76871

TUBE

SUPPORT - precleaner to block, no longer available, order A162433, Ref. 21

1шт.

10

A76872

TUBE

SUPPORT - precleaner to pump, no longer available, order A162432, Ref. 20

1шт.

11

L79809

HOSE

- precleaner

1шт.

12

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

13

L103363

TUBE

- precleaner

1шт.

14

A76059

GASKET

- precleaner tube

1шт.

15

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

16

A147044

MUFFLER

- exhaust

1шт.

Ref. 16 - (4.0" Inlet)

1шт.

17

A162896

CLAMP

- muffler

2шт.

18

L103374

ADAPTER

- exhaust

1шт.

19

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC, used with Refs. 20 and 21

2шт.

20

A162432

SUPPORT

-, Serial Range: precleaner-pump

1шт.

21

A162433

SUPPORT

-, Serial Range: precleaner-block

1шт.
