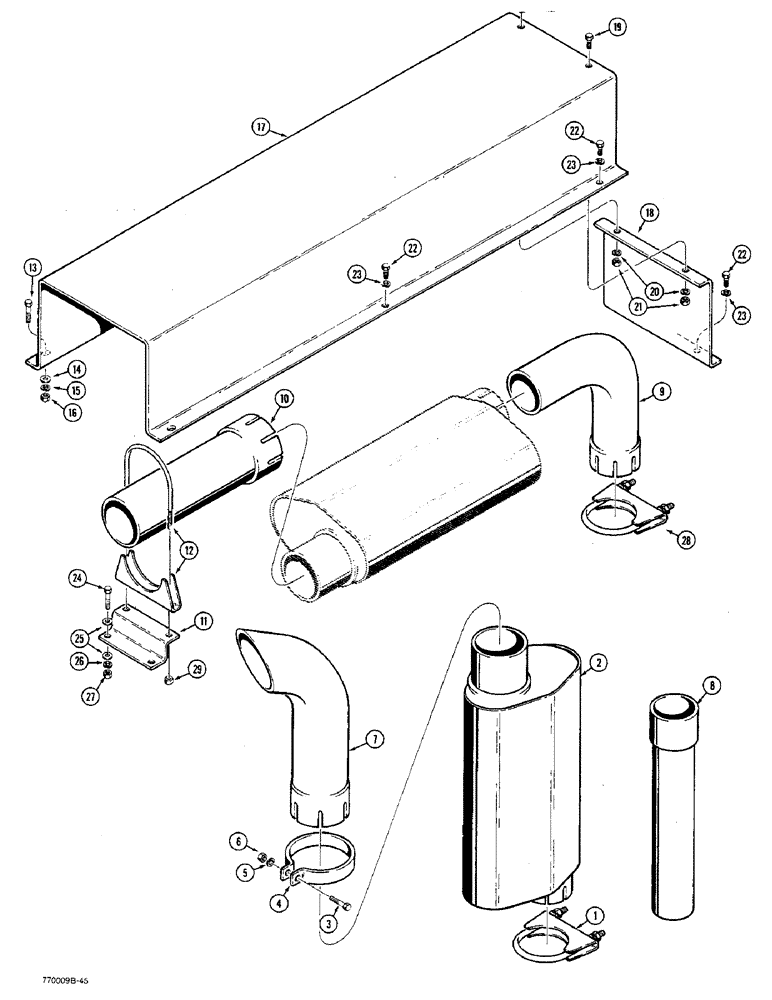

Запчасти Case W36 (2-50) - EXHAUST SYSTEM (02) - ENGINE

1

A17851

CLAMP

ASSEMBLY - includes hardware

1-2шт.

2

L74472

MUFFLER

- engine exhaust

1шт.

Ref. 2 - (3.515" I.D. Inlet)

1шт.

3

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

1шт.

4

A162895

CLAMP

- muffler

1шт.

5

92-6

LOCK WASHER,3/8"

1шт.

6

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

7

L103743

PIPE, EXHAUST SYSTEM

EXHAUST PIPE - muffler

1шт.

8

L44329

PIPE, EXHAUST SYSTEM

EXTENSION - muffler, used on early models, if used

1шт.

9

L76478

ELBOW

ADAPTER - exhaust manifold to muffler, forestry package

1шт.

10

L76476

PIPE

EXHAUST PIPE - forestry models, package

1шт.

11

L77128

BRACKET

- exhaust support, forestry package

1шт.

12

A162896

CLAMP

ASSEMBLY - support, includes hardware, forestry package

1шт.

13

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2", forestry package

2шт.

14

95-6

WASHER,3/8"

- flat, , forestry package 3/8"

2шт.

15

92-6

LOCK WASHER,3/8"

forestry package 3/8"

2шт.

16

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, forestry package

2шт.

17

L77126

FILTER ASSY

COVER - muffler, forestry package

1шт.

18

L77127

PLATE

COVER - end, forestry package

1шт.

19

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Forestry package Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

20

92-6

LOCK WASHER,3/8"

forestry package 3/8"

2шт.

21

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, forestry package

2шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Forestry package Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

23

92-6

LOCK WASHER,3/8"

forestry package 3/8"

6шт.

24

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Forestry package Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

25

95-6

WASHER,3/8"

- flat, , forestry package 3/8"

4шт.

26

92-6

LOCK WASHER,3/8"

forestry package 3/8"

2шт.

27

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, forestry package

2шт.

28

A17851

CLAMP

ASSEMBLY - exhaust pipe, includes hardware, forestry package

1шт.

29

131-672

LOCK NUT,3/8"-24, GB

NUT - hex, self-locking, 3/8" - 24 NF, forestry package

2шт.
