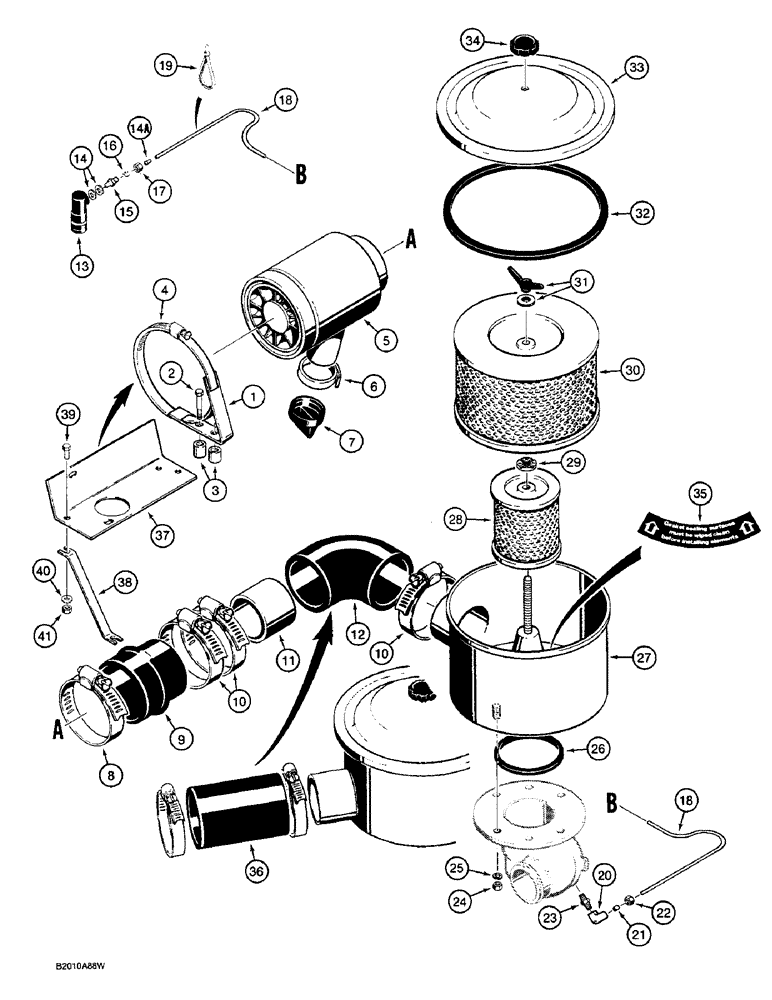

Запчасти Case W36 (2-48) - AIR CLEANER (02) - ENGINE

1

L76669

BRACKET

- precleaner, used, Serial Range: -9144046

1шт.

2

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex head, 3/8" - 16 NC x 2-3/4"

2шт.

4

214-285

HOSE CLAMP,#136, 8.12" - 9", Type F Worm

CLAMP - hose

1шт.

L73185

SEPARATOR

PRECLEANER - air, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - precleaner

1шт.

6

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - hose

1шт.

7

L30414

VALVE

- dust

1шт.

8

214-277

HOSE CLAMP,#100, 5.88" - 6.75", Type F Worm

CLAMP - hose

1шт.

9

L74363

REDUCER

TUBE - reducer

1шт.

10

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP - hose

3шт.

11

L74370

TUBE,5" OD x 4" L

- air cleaner

1шт.

12

L74362

ELBOW

- hose, used, Serial Range: -9144046

1шт.

13

A17652

ELECTRICAL GAUGE

RESTRICTION INDICATOR - air cleaner

1шт.

14

192-25

LOCK WASHER,5/8"

WASHER - flat, 3/8"

2шт.

14a

222-2452

INSERT

- nylon tubing, if used

1шт.

222-5104

FITTING,5/16"-24 x 1/8" NPT

- compression, does not require insert

1шт.

222-2633

FITTING

- compression, used with Ref. 14A insert, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

16

NSS

NOT SOLD SEPARAT

SLEEVE - tube

1шт.

17

NSS

NOT SOLD SEPARAT

COMPRESSION NUT - fitting

1шт.

18

D35090

TUBE

- nylon, 1/8" (3 mm) OD x 57" (1448 mm) long

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

222-5126

ELBOW,5/16"-24 Male x 1/8" NPTF Fem

FITTING - 90 degree, compression, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

21

NSS

NOT SOLD SEPARAT

SLEEVE - tube

1шт.

22

NSS

NOT SOLD SEPARAT

COMPRESSION NUT - fitting

1шт.

23

D36264

FITTING

- with internal filter

1шт.

24

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

6шт.

25

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

6шт.

L73186

CLEANER

AIR CLEANER ASSEMBLY - engine, Includes: Ref. 26 - 35

1шт.

26

A44801

GASKET

- air cleaner

1шт.

27

NSS

NOT SOLD SEPARAT

HOUSING - air cleaner

1шт.

28

A44805

AIR CLEANER

ELEMENT - filter, inner

1шт.

29

A44188

SEAL

NUT - element retainer

1шт.

30

A44804

AIR FILTER

ELEMENT - filter, outer

1шт.

31

L35499

NUT

WING NUT - element retainer

1шт.

32

A44191

GASKET

- cover

1шт.

33

A44190

COVER

- air cleaner

1шт.

34

A42918

KNOB

- air cleaner

1шт.

35

D76945

DECAL

- air cleaner

1шт.

36

L106691

INTAKE AIR HOSE,5.00" ID x 11.25"

- Air Cleaner, If used 5.00" ID x 11.25", Start Serial: 9144046

1шт.

37

L106782

SUPPORT

- precleaner, used, Start Serial: 9144046

1шт.

38

L106783

SUPPORT

BRACKET - precleaner support, used, Start Serial: 9144046

1шт.

39

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

40

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

41

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

1шт.
