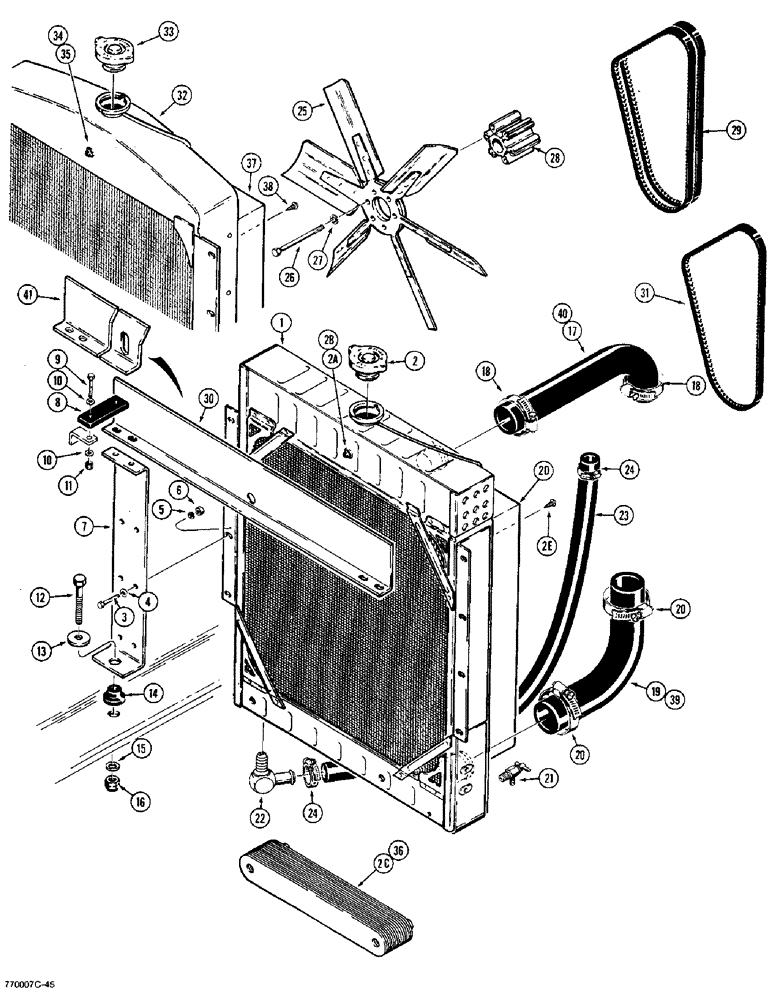

Запчасти Case W36 (2-46) - RADIATOR, FAN, AND FAN BELTS (02) - ENGINE

L108146

RADIATOR

- cooling, has welded tank, no longer available, order L36233 kit below, Includes: Ref. 1 - 2E

1шт.

1

NSS

NOT SOLD SEPARAT

RADIATOR - engine cooling

1шт.

2

D25826

CAP

- radiator

1шт.

2a

D80513

SIGHTGLASS

GLASS - sight gauge

1шт.

2b

D80514

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- sight gauge

1шт.

2c

D83221

TANK

OIL COOLER - transmission

1шт.

2d

N6189

SHROUD

- radiator

1шт.

2e

168-24

DRIVE SCREW,Type U, Rnd Hd, #10 - 24 x 1/2"

- self-tapping, no. 10 -24 NC x 1/2"

6шт.

3

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

4

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

5

92-6

LOCK WASHER,3/8"

8шт.

6

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

8шт.

7

L100853

SUPPORT

- radiator

2шт.

8

L50641

CONNECTING STRIP

STRAP - radiator

2шт.

9

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

6шт.

10

95-6

WASHER,3/8"

- flat, 3/8"

10шт.

11

131-463

NUT,3/8"-16

NUT - hex, self-locking, NC 3/8"-16

6шт.

12

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

13

195-2070

WASHER,0.66" ID x 1.88" OD x 0.08" Thk

- flat, 5/8"

2шт.

14

L77573

BUSHING,16.51mm ID x 34.29mm OD x 25.4mm L

CUSHION - rubber

2шт.

15

L77574

WASHER

- special

2шт.

16

131-656

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8" - 11 NC

2шт.

17

L70946

RADIATOR HOSE,2.50" ID x 14.50", SAE 20R4 Class R Grade 1A

Upper, Used with L108146 radiator 2.50" ID x 14.50", SAE 20R4 Class R Grade 1A

1шт.

18

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose

2шт.

19

L72969

RADIATOR HOSE,3.00" ID x 13.50", SAE 20R4 Class R Grade 1A

- Lower, Used with L108146 radiator 3.00" ID x 13.50", SAE 20R4 Class R Grade 1A

1шт.

20

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose

2шт.

21

A27862

COCK, DRAIN

VALVE - drain

1шт.

22

217-166

STEM,90 Degree Elbow, 1-1/4" Hose Barb x 1" Male NPTF

FITTING - 90 degree hose barb, if used, used on some early model radiators

1шт.

23

L76902

RADIATOR HOSE,1.25" ID x 34.50", SAE 20R1 Class B

1.25" ID x 34.50", SAE 20R1 Class B

1шт.

24

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

25

A173018

FAN

- pusher

1шт.

P/N A173539 suction fan can be used.

1шт.

26

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- hex head, 3/8" - 16 NC x 4-1/2"

6шт.

27

92-6

LOCK WASHER,3/8"

6шт.

28

L73836

SPACER

- fan

1шт.

29

L71057

SET OF BELTS,0.69" W x 62.00" L

(2), Fan, 40 amp alternator 0.69" W x 62.00" L

1шт.

29

T38546

SET OF BELTS,0.69" W x 65.75" L

V-Belt (2), Fan, 65 amp alternator 0.69" W x 65.75" L

1шт.

30

L78234

BAFFLE

- radiator, used with L108146 radiator

1шт.

31

L71058

BELT,.050" W x 47.00" L

Compressor .050" W x 47.00" L

1шт.

L36233

RADIATOR

KIT - radiator, Includes: Ref. 32 - 41

1шт.

L109593

COOLER, OIL

RADIATOR - cooling, has one piece tank

1шт.

32

NSS

NOT SOLD SEPARAT

RADIATOR - engine cooling

1шт.

33

D25826

CAP

- radiator

1шт.

34

D80513

SIGHTGLASS

GLASS - sight gauge

1шт.

35

D80514

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- sight gauge

1шт.

36

D83221

TANK

OIL COOLER - transmission

1шт.

37

N7897

SHROUD

- radiator

1шт.

38

168-24

DRIVE SCREW,Type U, Rnd Hd, #10 - 24 x 1/2"

- self-tapping, no. 10 - 24 NC x 1/2"

6шт.

39

L109360

PIPE

HOSE - lower, used with L109593 radiator

1шт.

40

L109597

PIPE

HOSE - upper, used with L109593 radiator

1шт.

41

L114978

BAFFLE

- radiator, used with L109593 radiator

1шт.
