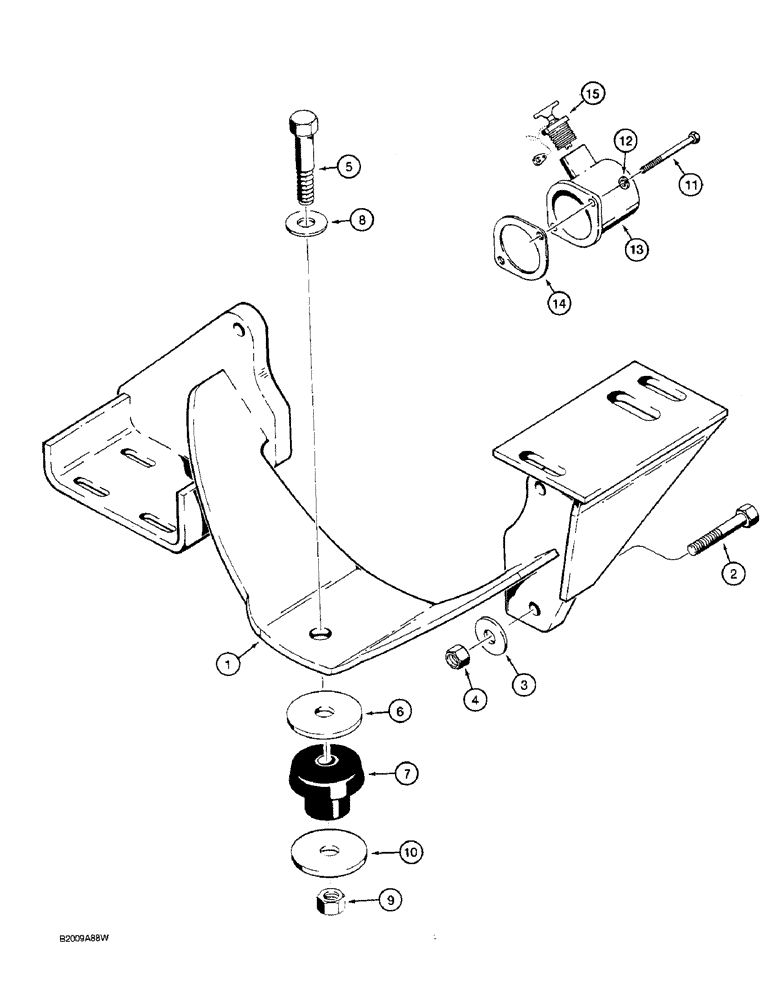

Запчасти Case W36 (2-44) - ENGINE MOUNTING (02) - ENGINE

1

L79712

BRACKET

- engine mounting

1шт.

2

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

3

L79179

WASHER

- hardened

4шт.

4

25-1012

NUT,3/4"-10, G5

4шт.

5

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

1шт.

6

L100884

WASHER

- hardened

1шт.

7

A19066

MOUNTING PARTS

CUSHION - rubber

1шт.

8

L79179

WASHER

- hardened

1шт.

9

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

1шт.

10

A19068

WASHER

- flat, special

1шт.

11

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- hex head, 3/8" - 16 NC x 3-1/2"

2шт.

12

195-104

WASHER,3/8"

- lock, , plated 3/8"

2шт.

13

L116956

HOUSING

FILLER - engine oil

1шт.

14

A58617

GASKET

- filler

1шт.

15

L61111

PLUG

CAP - oil filler

1шт.
