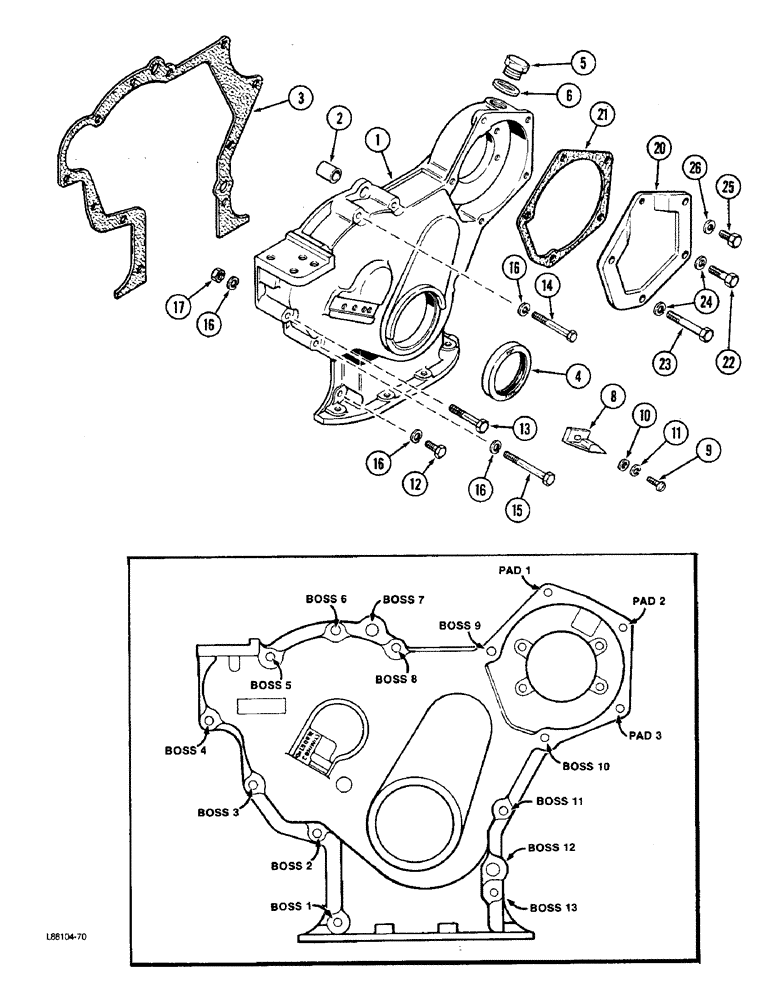

Запчасти Case W36 (2-42) - TIMING GEAR COVER, 504BDTI ENGINE (02) - ENGINE

1

A166142

COVER

ASSEMBLY - timing gears (Replaces A63909), Includes: Ref. 2

1шт.

2

A58611

PIN

DOWEL - cover, locating, 3/8 x 5/8 x 1 inch (Boss 7 and 12)

2шт.

3

A58612

GASKET

-, Serial Range: cover-block

1шт.

4

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

- oil, crankshaft, front

1шт.

5

A21140

PLUG

- timing window

1шт.

6

A58613

SEALING WASHER

GASKET - plug, nylon, 1 x 1-1/4 x 1/16 inch

1шт.

8

A63911

INDICATOR

POINTER - timing

1шт.

9

169-119

SCREW,Sl Fil Hd, #12 - 24 x 3/4"

- pointer, slotted head, no. 12-24 x 3/4 inch

1шт.

10

195-16

WASHER,#12

- flat, 1/4 x 9/16 x 1/16 inch

1шт.

11

192-108

LOCK WASHER,#12

WASHER - lock, no. 12

1шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Cover (Boss 1, 2, 11 and 13) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

13

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- cover, hex, 3/8 NC x 3-1/2 inch (Boss 4 and 5)

2шт.

14

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

Cover (Boss 6 and 8) Hex, 3/8"-16 x 2 1/2", G5

2шт.

15

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

Cover (Boss 3) Hex, 3/8"-16 x 2 1/2", G5

1шт.

16

492-11038

LOCK WASHER,3/8"

9шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

20

A61053

COVER

- injection pump gears

1шт.

21

A58615

GASKET

- injection pump gear cover

1шт.

22

A151921

BOLT

- cover, hex, drilled, 3/8 NC x 1-1/4 inch (Pad 2 and 3) (Replaces A150118)

2шт.

23

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- cover, hex, 3/8 NC x 3-1/2 inch (Boss 9 and 10)

2шт.

24

492-11038

LOCK WASHER,3/8"

4шт.

25

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Cover (Pad 1) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

26

92-5

LOCK WASHER,5/16"

1шт.
