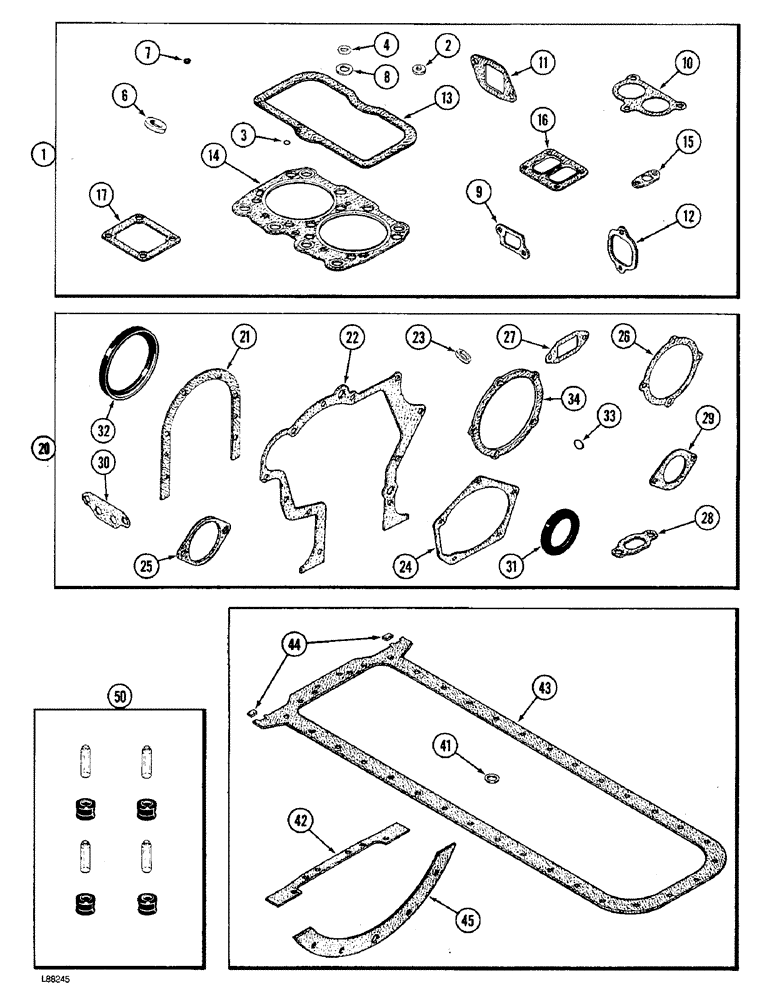

Запчасти Case W36 (2-40) - ENGINE GASKET KITS, 504BDTI ENGINE, VALVE GRIND KIT (02) - ENGINE

1

A157300

GASKET

KIT - valve grind (Replaces A151404), Includes: Ref. 2 - 17

1шт.

For a complete engine overhaul order 1-A157300, 1-A44075 and 1-A152479.

1шт.

2

A142098

GROMMET

GASKET - valve cover stud (Replaces A23684)

6шт.

3

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- rocker arm lube tube

3шт.

4

A34133

GASKET

- breather tube, upper

3шт.

6

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle

6шт.

7

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem (See Ref. 50)

12шт.

8

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube, lower

3шт.

9

A166147

GASKET

- water manifold (Replaces A58637)

3шт.

10

A166148

GASKET

- thermostat housing (Replaces A58639)

1шт.

11

A58662

MANIFOLD GASKET

- intake manifold

6шт.

12

A58895

GASKET

- exhaust manifold (Replaces A140252)

6шт.

13

A156960

CYLINDER HEAD GASKET,3.05mm Thk

- cylinder head cover (Replaces A65734)

3шт.

14

A138397

CYLINDER HEAD GASKET

- cylinder head

3шт.

15

A58892

GASKET,1.59mm Thk

- turbo oil drain tube

1шт.

16

A58899

GASKET,0.45mm Thk

- turbo base

2шт.

17

A58910

GASKET

- air intake elbow

1шт.

20

A44075

GASKET KIT

- cylinder block, Includes: Ref. 21 - 34

1шт.

For a complete engine overhaul order 1-A157300, 1-A44075 and 1-A152479.

1шт.

21

A32830

GASKET

- rear oil seal retainer, cylinder block kit

1шт.

22

A58612

GASKET

- timing gear cover, cylinder block kit

1шт.

23

A58613

SEALING WASHER

GASKET - timing window plug, cylinder block kit

1шт.

24

A58615

GASKET

- fuel pump cover, cylinder block kit

1шт.

25

A58617

GASKET

- (Not used this application), cylinder block kit

1шт.

26

A58646

GASKET

- water pump body, cylinder block kit

1шт.

27

A58649

GASKET

- water pump body to block, cylinder block kit

1шт.

28

A58670

GASKET

- oil cooler water opening, cylinder block kit

1шт.

29

A58680

OIL PAN GASKET SET

- (Not used this application), cylinder block kit

1шт.

30

A58756

OIL PAN GASKET SET

- (Not used this application), cylinder block kit

1шт.

31

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

- oil, crankshaft, front (Replaces A62049), cylinder block kit

1шт.

32

A62050

OIL SEAL

- oil, crankshaft, rear, cylinder block kit

1шт.

33

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- oil filter base and oil pump, cylinder block kit

3шт.

34

A76656

GASKET

- (Not used this application), cylinder block kit

1шт.

A152479

GASKET KIT

- oil pan (Replaces A46005), Includes: Ref. 41 - 45

1шт.

For a complete engine overhaul order 1-A157300, 1-A44075 and 1-A152479.

1шт.

41

A27968

RING

- oil pan drain plug, pan kit

1шт.

42

A150689

GASKET

- flywheel housing (Replaces A76249), oil pan kit

1шт.

43

NSS

NOT SOLD SEPARAT

GASKET - oil pan, kit

1шт.

44

A150690

OIL PAN GASKET SET

- oil pan corners (Replaces A75308), kit

2шт.

45

A57966

GASKET

- torque tube to oil pan, kit

1шт.

50

M20614

SEAL KIT

- valve seat (Includes 4 seal and installation tool), oil pan

3шт.
