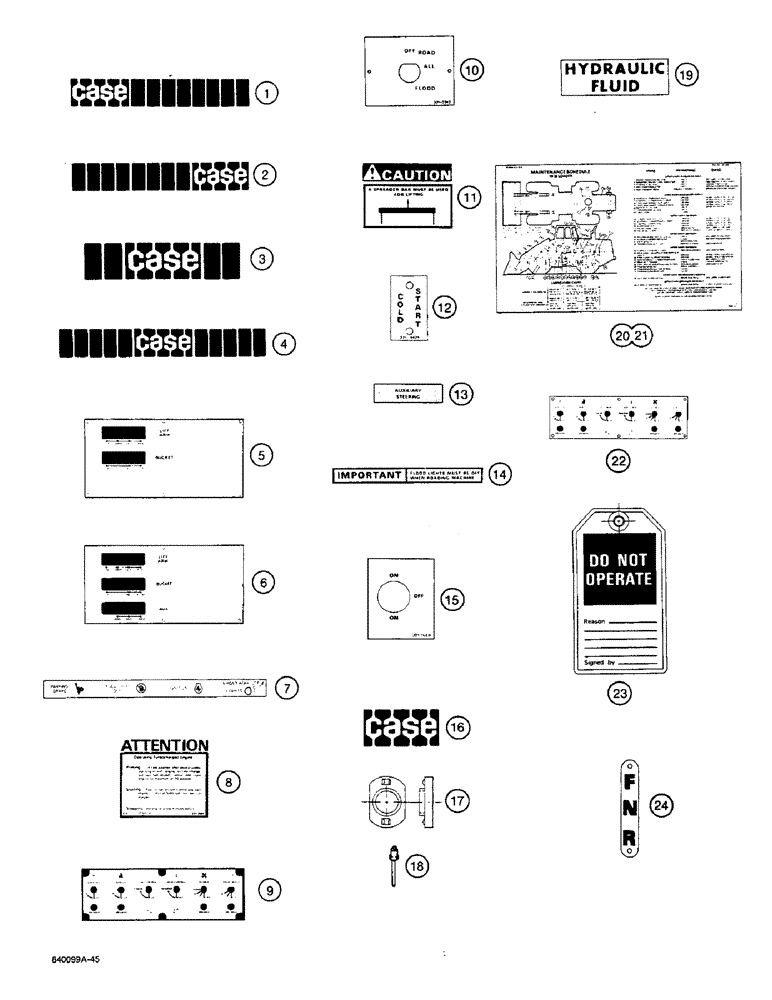

Запчасти Case W36 (9-562) - DECALS, FOR TAN OR YELLOW TRACTORS (09) - CHASSIS

1

321-3129

DECAL

- Case, right-hand, if used

1шт.

2

321-3072

DECAL

- Case, left-hand, if used

1шт.

3

321-3098

DECAL

- Case, rear, if used

1шт.

4

321-3126

DECAL

- Case, front, if used

1шт.

5

321-4448

DECAL

- Caution and Bucket Control, 2 spool cab model

1шт.

6

321-4449

DECAL

- Caution and Bucket Control, 3 spool cab model

1шт.

7

321-3889

DECAL

- instrument cluster, use 321-4736, Figs. 9-558 and 9-560

1шт.

8

321-2605

DECAL

- attention, operating engine

1шт.

9

321-3002

DECAL

- Case, cab models

1шт.

10

321-5913

DECAL

- Off-Road-All-Flood

1шт.

11

321-3574

DECAL

- lifting and tie down instructions

1шт.

12

321-4425

DECAL

- Cold Start

1шт.

13

321-5009

DECAL

- Auxiliary Steering

1шт.

14

321-4632

DECAL

- important, flood lights

1шт.

15

321-5008

DECAL

- On-Off-On

1шт.

16

321-4739

EMBLEM

MEDALLION - Case

1шт.

17

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - clip

2шт.

18

151-525

RIVET,Pop, 1/8" x .275"

- pop

1шт.

19

321-6313

DECAL

- hydraulic filter

1шт.

20

321-4308

DECAL

- maintenance chart, used with hydraulic filter in tank

1шт.

21

L109631

INSTRUCTION

DECAL - maintenance chart, used with external hydraulic filters

1шт.

22

321-4137

DECAL

- instrument switches, if used

1шт.

23

321-4614

TAG

- do not operate

1шт.

24

321-5872

DECAL

- shift control

1шт.
