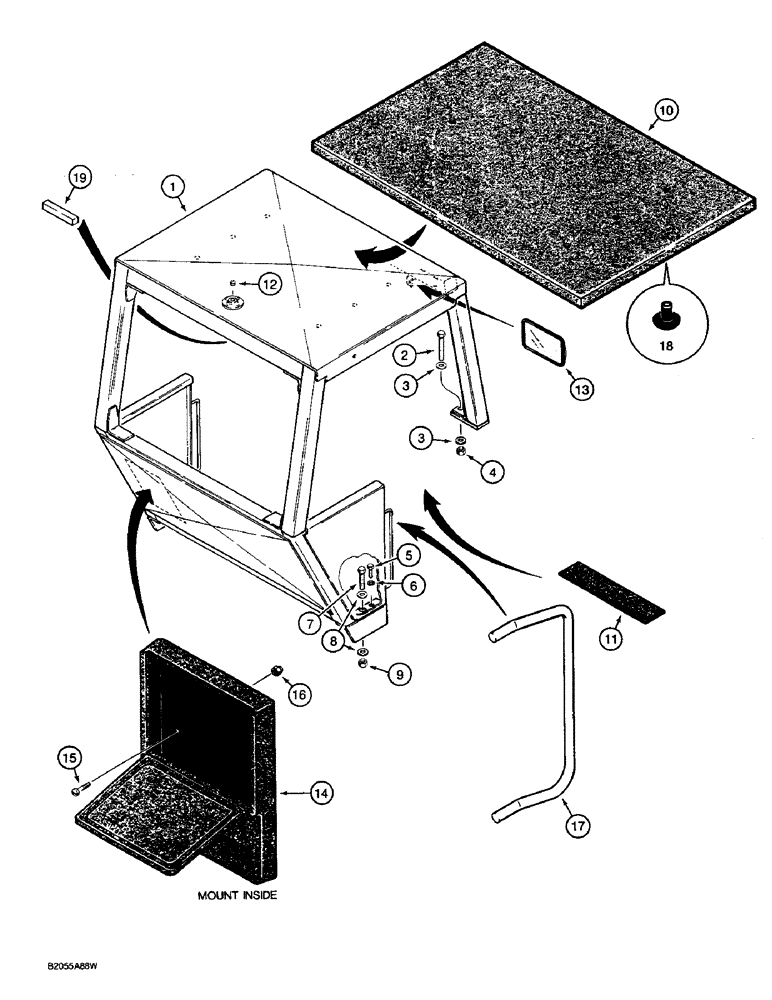

Запчасти Case W36 (9-556) - ROPS CANOPY (09) - CHASSIS

1

REF

INSTRUCTION

CANOPY - ROPS, machinery item

1шт.

2

26-1664

BOLT,Hex, 1" - 8 x 4", Gr 8

- hex head, 1" - 8 NC x 4", grade 8

2шт.

3

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- hardened

4шт.

4

131-199

LOCK NUT,1"-8, GC

NUT - hex, self-locking, 1" - 8 NC

2шт.

5

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

2шт.

6

92-8

LOCK WASHER,1/2"

2шт.

7

26-1644

BOLT,Hex, 1" - 8 x 2-3/4", Gr 8

- hex head, 1" - 8 NC x 2-3/4", grade 8

2шт.

8

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- hardened

4шт.

9

131-199

LOCK NUT,1"-8, GC

NUT - hex, self-locking, 1" - 8 NC

2шт.

10

L114406

ROOF LINING

HEADLINER - canopy, order L36277 kit, see below

1шт.

11

D55216

PAD,2" x 9"

PAD - non skid

3шт.

12

221-1036

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - square socket head, 1" NPT

1шт.

13

L74714

MIRROR

AND HARDWARE - rear view

1шт.

14

A177376

BOX

- operator's manual

1шт.

15

182-202

SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"

MACHINE SCREW - slotted head, 1/4" - 20 NC x 1/2"

3шт.

16

129-501

NUT,Crown, 1/4"-20

DOME NUT - 1/4" - 20 NC

3шт.

17

L52012

HOLDER

HANDRAIL -, Serial Range: welded-chassis

2шт.

18

R37161

RETAINER

CAP - headliner retainer, if used

6шт.

19

D71967

BAR

- headliner retainer, if used

2шт.

L36277

ROOF LINING

KIT headliner adapter, consists of: (2) P/N D71967 retainer bars and P/N L114146 beacon switch bracket, see Fig. 4-172

1шт.
