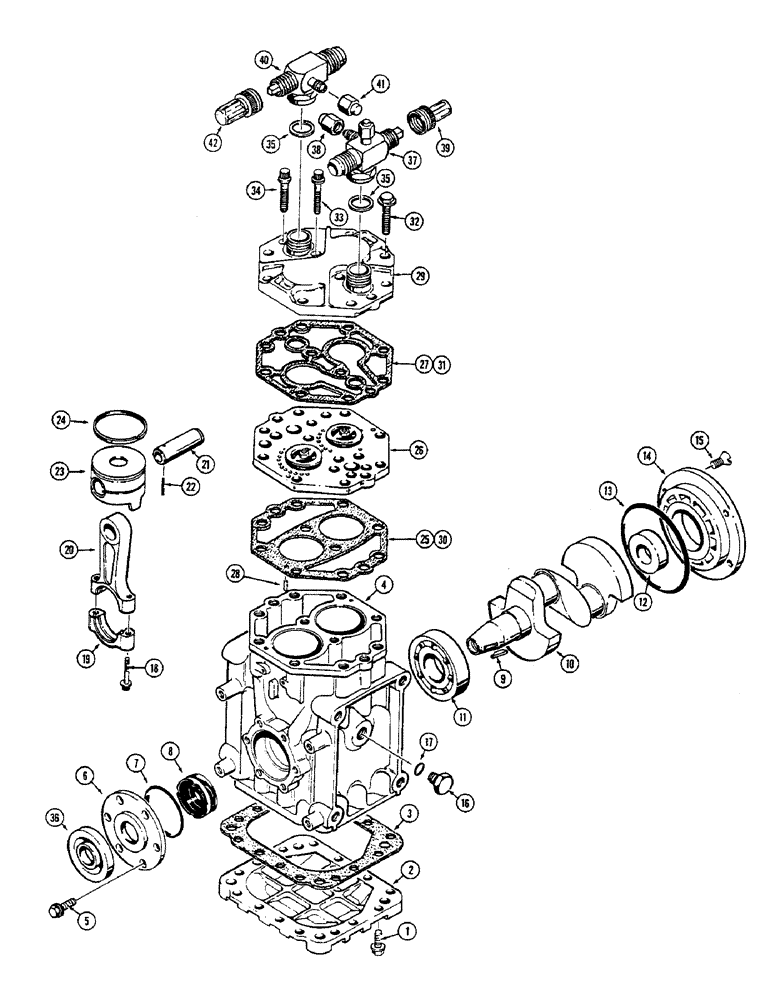

Запчасти Case W36 (9-552) - L73416 AIR CONDITIONING COMPRESSOR (09) - CHASSIS

L73416

AIRCOND. COMPRESSOR

COMPRESSOR ASSEMBLY - York no. ER210L-20769, Includes: Ref. 1 - 42

1шт.

417888C93

AIRCOND. COMPRESSOR

Compressor Assy., A/C

1шт.

1924004C2

REMAN-A/C COMPRESSOR

Remanufactured COMPRESSOR

1шт.

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

1

A42951

FLANGE BOLT

BOLT - special

14шт.

2

D77056

PLATE

SPARE PART COVER - bottom

1шт.

3

D77057

GASKET

SPARE PART GASKET - housing

1шт.

Part of Gasket Kit P/N A42964

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING - compressor

1шт.

5

A42961

CAPTIVE WASHER SCREW,Hex, #10 - 24 x 0.469", Full Thd

BOLT - special

6шт.

A48248

SEAL

KIT - shaft seal, front, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

COVER - seal

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - cover

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - crankshaft

1шт.

9

A42939

KEY

KEY - crankshaft

1шт.

10

D77051

CRANKSHAFT

CRANKSHAFT - compressor

1шт.

11

D77047

BALL BEARING

BEARING - ball, front

1шт.

12

D77048

BEARING

SPARE PART BEARING - ball, rear

1шт.

13

D77050

O-RING,3.239" ID x 3.379" OD

O-RING - cover

1шт.

Part of Gasket Kit P/N A42964

1шт.

14

D77049

HOUSING

COVER - rear

1шт.

15

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

SCREW - flat head, 1/4" - 20 NC x 5/8"

4шт.

16

114-210

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5, Full Thd

BOLT - hex head, 3/8" - 24 NF x 3/8"

2шт.

17

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

O-RING - cover

2шт.

Part of Gasket Kit P/N A42964

1шт.

D77052

ROD

SPARE PART PISTON AND ROD ASSEMBLY - compressor, Includes: Ref. 18 - 24

2шт.

18

NSS

NOT SOLD SEPARAT

BOLT - special

2шт.

19

NSS

NOT SOLD SEPARAT

CAP - rod

1шт.

20

NSS

NOT SOLD SEPARAT

ROD - connecting

1шт.

21

NSS

NOT SOLD SEPARAT

PIN - piston

1шт.

22

NSS

NOT SOLD SEPARAT

PIN - retaining

1шт.

23

NSS

NOT SOLD SEPARAT

PISTON - compressor

1шт.

24

NSS

NOT SOLD SEPARAT

RING SET - piston

1шт.

A45420

VALVE

VALVE ASSEMBLY - compressor, Includes: Ref. 25 - 27

1шт.

25

D77060

GASKET

SPARE PART GASKET - bottom

1шт.

Part of Gasket Kit P/N A42964

1шт.

26

NSS

NOT SOLD SEPARAT

PLATE AND VALVES - head

1шт.

27

D77059

GASKET

SPARE PART GASKET - top

1шт.

Part of Gasket Kit P/N A42964

1шт.

28

G16772

PIN - guide

2шт.

D77058

HEAD

SPARE PART HEAD KIT - compressor, Includes: Ref. 29 - 31

1шт.

29

NSS

NOT SOLD SEPARAT

HEAD - compressor

1шт.

30

D77060

GASKET

SPARE PART GASKET - bottom

1шт.

Part of Gasket Kit P/N A42964

1шт.

31

D77059

GASKET

SPARE PART GASKET - top

1шт.

Part of Gasket Kit P/N A42964

1шт.

32

A42949

FLANGE BOLT

BOLT - 5/16" - 18 NC x 1-3/8"

8шт.

33

A42948

12 PT SCREW,5/16" - 18 x 1.516", Gr 6

BOLT - Ferry head, 5/16" - 18 NC x 1-17/32"

2шт.

34

A42947

SCREW,5/16" - 18 x 1.375", Grade 6, Steel

SPARE PART BOLT - Ferry head, 5/16" - 18 NC x 1-3/8"

2шт.

35

A42938

GASKET

SEAL - valve

2шт.

36

A42965

CAP

CAP - dust

1шт.

D77053

FITTING

VALVE ASSEMBLY - discharge, Includes: Ref. 37 - 39

1шт.

37

NSS

NOT SOLD SEPARAT

VALVE - discharge

1шт.

38

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - 1/4"

1шт.

39

A45152

BUSHING

CAP- 1/2"

1шт.

A42937

VALVE

VALVE ASSEMBLY - suction, Includes: Ref. 40 - 42

1шт.

40

NSS

NOT SOLD SEPARAT

VALVE - suction

1шт.

41

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - 1/4"

1шт.

42

A42944

CAP

CAP - 1/2"

1шт.

A42964

GASKET

KIT - gasket, Includes: Ref. 3, 13, 17, 25, 27, 30 and 31

1шт.
