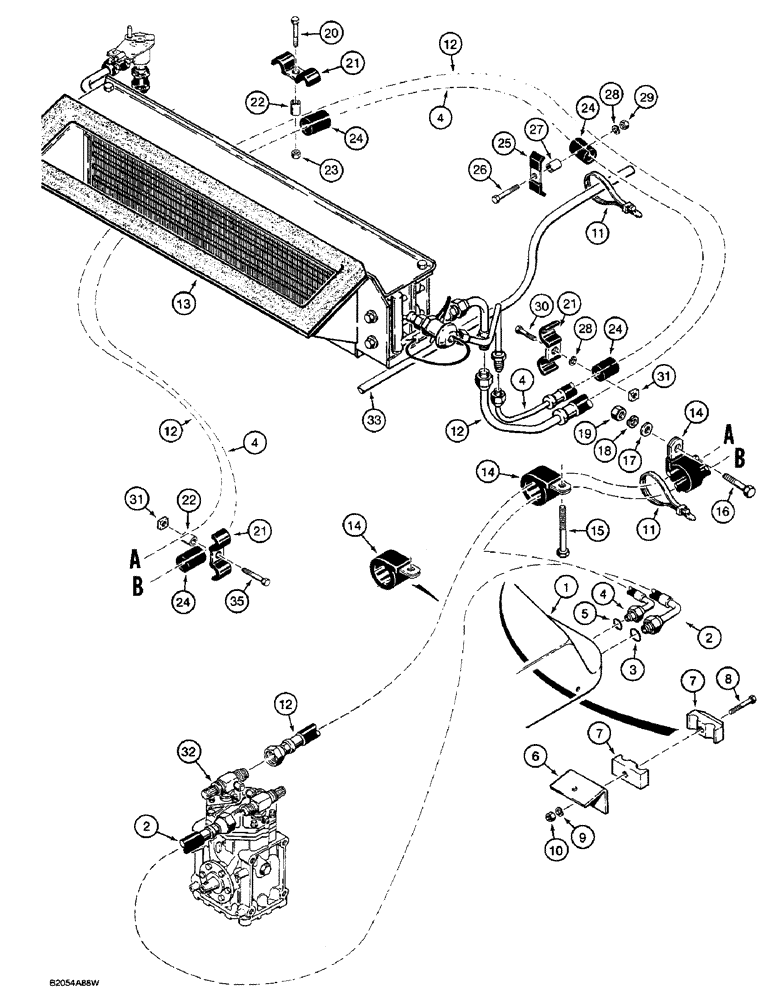

Запчасти Case W36 (9-546) - AIR CONDITIONING LINES, PIN 9161226 AND AFTER (09) - CHASSIS

1

L115234

CONDENSER

CONDENSER - air conditioning, see Figs. 9-548 and 9-550

1шт.

2

L116492

HOSE ASSY.

HOSE - 72" (1828 mm) long, condenser to compressor, Includes: Ref. 3

1шт.

3

N13633

O-RING,7/16" ID x 1/16" Width

O-RING - hose

1шт.

4

L116493

HOSE ASSY.

SPARE PART HOSE - 244" (6198 mm) long, condenser to evaporator core in cab, Includes: Ref. 5

1шт.

5

A61198

O-RING,0.07" Thk x 0.301" ID, -11

O-RING - hose, at condenser

1шт.

6

L114417

BRACKET

SPARE PART BRACKET - hose clamp

1шт.

7

L115095

CLAMP

CLAMP - double, includes both plastic halves and top steel plate

1шт.

8

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

BOLT - hex head, 5/16" - 18 NC x 2-1/2", plated

1шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP - tie, 15 inch, nylon

1шт.

12

L72894

HOSE

SPARE PART HOSE - 165" (4191 mm) long, lower pressure

1шт.

13

REF

INSTRUCTION

PLENUM - see Fig. 9-538

1шт.

14

L17513

CLAMP

CLAMP - hose

3шт.

15

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

BOLT - hex head, 5/8" - 11 NC x 2-1/4", plated

1шт.

16

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

BOLT, Hex, 1/2"-13 x 1 3/4", G5

1шт.

17

495-21056

WASHER,1/2"

WASHER - flat, , plated 1/2"

1шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

20

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

BOLT - hex head, 3/8" - 16 NC x 2-1/4", plated

1шт.

21

R15257

CLAMP

CLAMP - hose

3шт.

22

D36040

BUSHING

SPACER - clamp

2шт.

23

131-217

LOCK NUT

NUT - hex, 3/8" - 16 NC, plated, grade 8

1шт.

24

L117254

SLEEVE

SLEEVE - hose

4шт.

25

D40236

CLAMP

CLAMP - hose

1шт.

26

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT - hex, 3/8" - 16 NC x 2", plated

1шт.

27

F14117

SPACER

SPACER - clamp

1шт.

28

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

29

425-106

NUT,3/8"-16, Cl 5

NUT, 3/8"-16, G5

1шт.

30

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT - hex head, 3/8" - 16 NC x 1", plated

1шт.

31

25-286

NUT,Sq, 3/8"-16, G2, Hvy

NUT - square, heavy, 3/8" - 16 NC

2шт.

32

A141060

COMPRESSOR

COMPRESSOR - air conditioning, parts list Fig. 9-554

1шт.

32

417888C93

AIRCOND. COMPRESSOR

Compressor Assy., A/C

1шт.

32

1924004C2

REMAN-A/C COMPRESSOR

Reman For New P/N 417888C93

1шт.

32

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

33

L73689

TUBE,0.5" OD x 41" L

TUBE - condensation drain

2шт.
