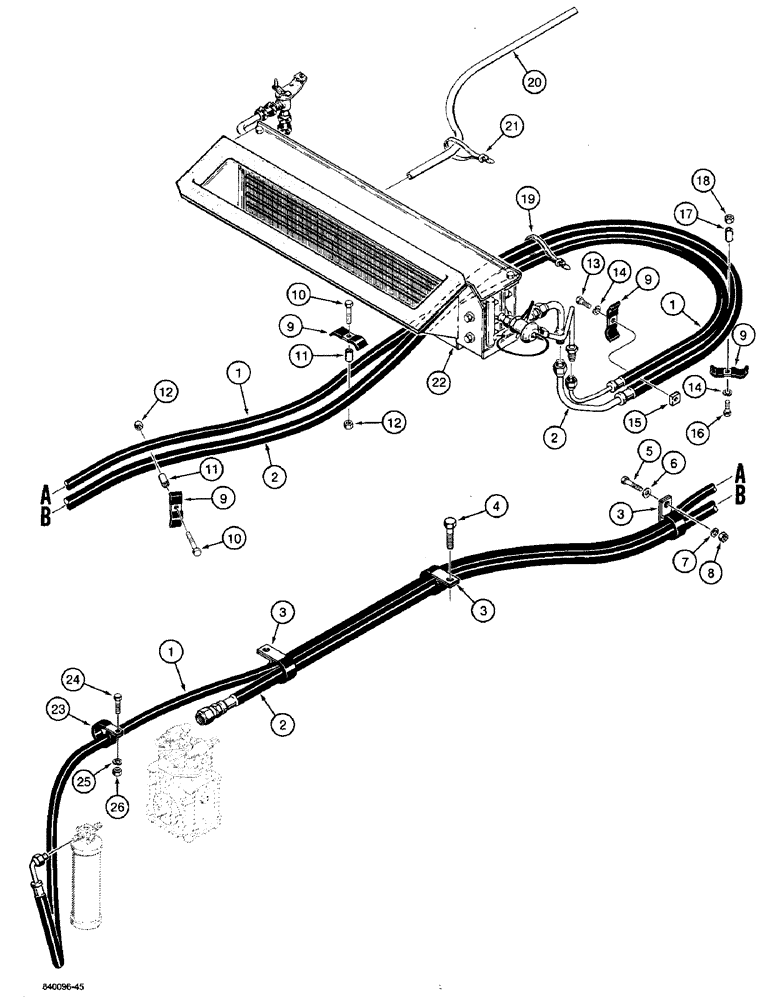

Запчасти Case W36 (9-544) - AIR CONDITIONING LINES, DRYER TO PLENUM, PRIOR TO P.I.N. 9161226 (09) - CHASSIS

1

L72893

HOSE ASSY.

HOSE - condenser to plenum, 205" (5207 mm) long

1шт.

2

L72894

HOSE

- compressor to plenum, 165" (4191 mm) long

1шт.

3

L17513

CLAMP

- hose

3шт.

4

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

1шт.

5

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

1шт.

6

95-8

WASHER,1/2"

flat 1/2"

1шт.

7

92-8

LOCK WASHER,1/2"

1шт.

8

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

9

L79797

CLAMP

- hose

4шт.

10

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

11

33126

BUSHING

SPACER - clamp

2шт.

12

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

- hex head, 3/8" - 16 NC x 2"

1шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

25-286

NUT,Sq, 3/8"-16, G2, Hvy

- square, 3/8" - 16 NC

1шт.

16

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

1шт.

17

F14117

SPACER

- hose

1шт.

18

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

20

L73689

TUBE,0.5" OD x 41" L

- drain

2шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

22

REF

INSTRUCTION

PLENUM - see Figure 8-450

1шт.

23

R14192

CLAMP,2", Insul, 3/8" Bolt

- hose

1шт.

24

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

1шт.

25

92-6

LOCK WASHER,3/8"

1шт.

26

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.
