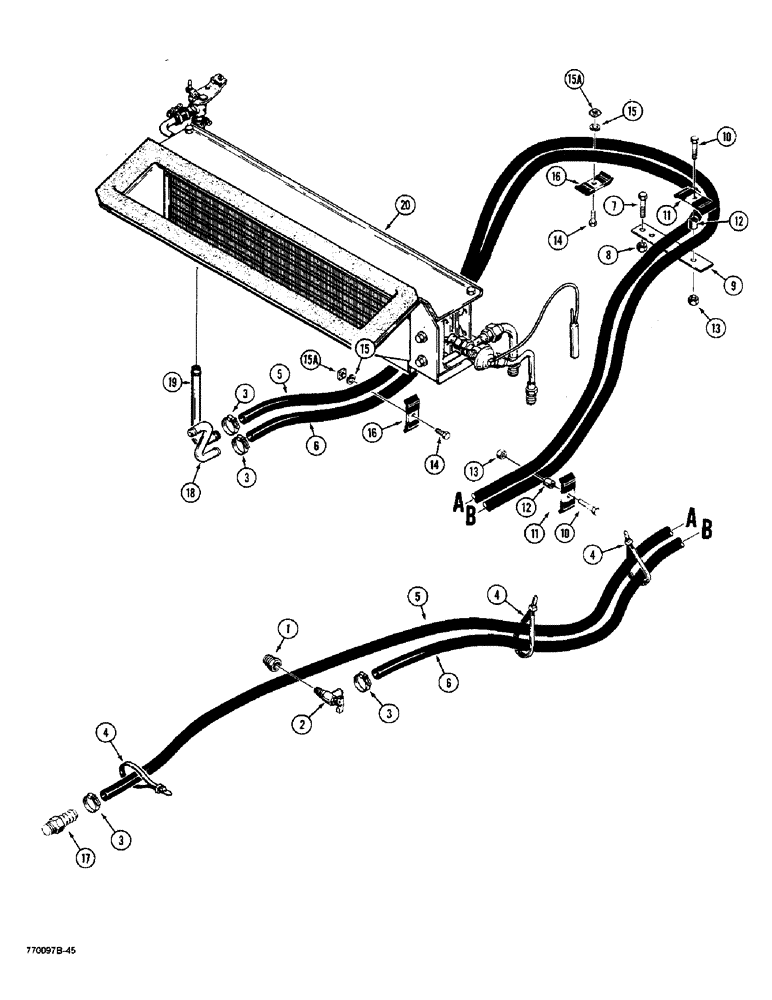

Запчасти Case W36 (9-540) - HEATER LINES (09) - CHASSIS

1

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer, 1/2" NPT x 3/8" NPT

1шт.

2

A16764

VALVE

- shut-off

1шт.

3

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

4шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

5

L52722

HOSE ASSY.

HOSE - 5/8" (16 mm) ID x 151" (3835 mm), use A42610

1шт.

6

L18326

HOSE

- 5/8" (16 mm) ID x 144" (3658 mm), use A42610

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

- hex head, 5/8" - 16 NC x 1-1/4"

2шт.

8

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

9

L73664

BRACKET

- hose support

1шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

2шт.

11

D40236

CLAMP

- hose

2шт.

12

33126

BUSHING

SPACER - clamp

2шт.

13

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

15a

25-286

NUT,Sq, 3/8"-16, G2, Hvy

- square, 3/8" - 16 NC

2шт.

16

D40236

CLAMP

- hose

2шт.

17

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - straight, hose stem

1шт.

18

L100843

HEATER TUBE,127, 95 mm L

TUBE - straight, hose stem

1шт.

18

L100843

HEATER TUBE,127, 95 mm L

TUBE - outlet

1шт.

19

L100842

HEATER TUBE,147.5, 63.5 mm L

TUBE - inlet

1шт.

20

REF

INSTRUCTION

PLENUM - heater and air conditioning, parts list Fig. 9-538

1шт.

A42610

LARGE HOSE

HOSE - bulk roll, not shown, 5/8" (16 mm) ID x 50 ft. (15.2 M) long

1шт.
