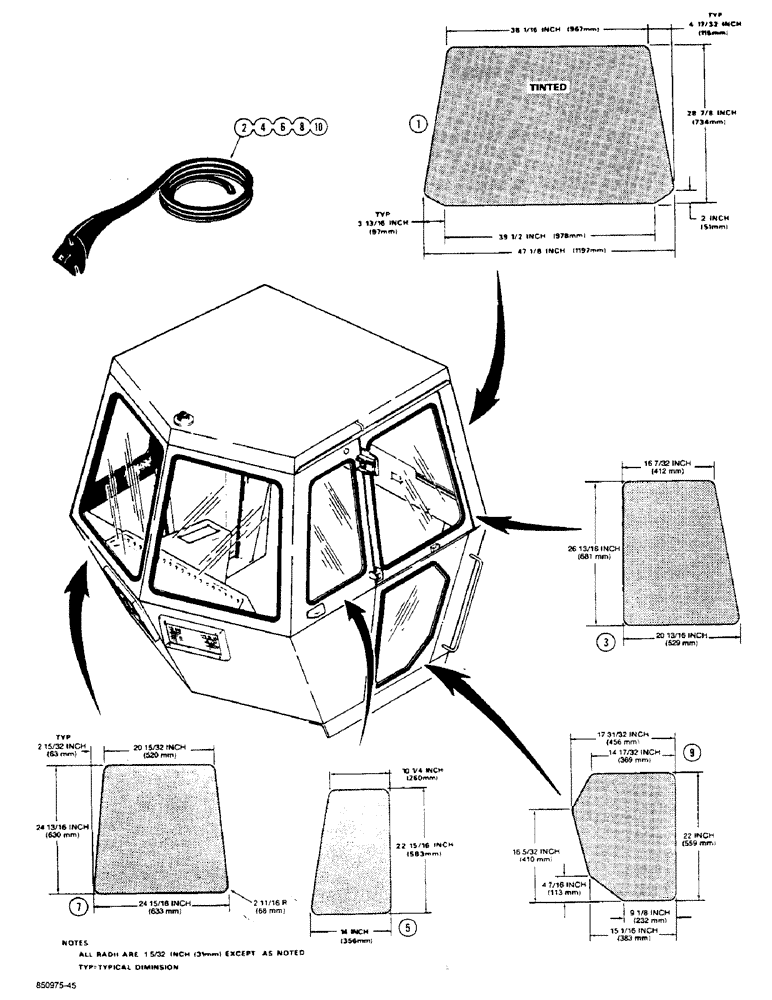

Запчасти Case W36 (9-536) - CAB GLASS AND MOLDINGS, CAB SERIAL NUMBER 54970 AND AFTER (09) - CHASSIS

1

NSS

NOT SOLD SEPARAT

GLASS - windshield

1шт.

All cab glass must be obtained from local sources. Order laminated safety glass to dimensions shown on this figure's illustration.

1шт.

2

REF

INSTRUCTION

MOULDING - windshield, 140-1/8" (3559 mm) long, cut from L35717 bulk

1шт.

Cut from bulk moulding P/N L35717, see below.

1шт.

3

NSS

NOT SOLD SEPARAT

GLASS - upper door

2шт.

All cab glass must be obtained from local sources. Order laminated safety glass to dimensions shown on this figure's illustration.

1шт.

4

REF

INSTRUCTION

MOULDING - upper door glass, 91-1/8" (2315 mm) long, cut from L35717 bulk

2шт.

Cut from bulk moulding P/N L35717, see below.

1шт.

5

NSS

NOT SOLD SEPARAT

GLASS - side panel

2шт.

All cab glass must be obtained from local sources. Order laminated safety glass to dimensions shown on this figure's illustration.

1шт.

6

REF

INSTRUCTION

MOULDING - side panel glass, 76" (1930 mm) long, cut from L35717 bulk

2шт.

Cut from bulk moulding P/N L35717, see below.

1шт.

7

NSS

NOT SOLD SEPARAT

GLASS - rear window

2шт.

All cab glass must be obtained from local sources. Order laminated safety glass to dimensions shown on this figure's illustration.

1шт.

8

REF

INSTRUCTION

MOULDING - rear window glass, 97" (2464 mm) long, cut from L35717 bulk

2шт.

Cut from bulk moulding P/N L35717, see below.

1шт.

9

NSS

NOT SOLD SEPARAT

GLASS - lower left-hand door and lower right-hand panel

2шт.

All cab glass must be obtained from local sources. Order laminated safety glass to dimensions shown on this figure's illustration.

1шт.

10

REF

INSTRUCTION

MOULDING - lower glass, 73-1/2" (1867 mm) long, cut from L35717 bulk

2шт.

Cut from bulk moulding P/N L35717, see below.

1шт.

L35717

GASKET

MOULDING bulk, 50 ft., 15.2 M, roll, used for Refs. 2, 4, 6, 8 and 10

1шт.
