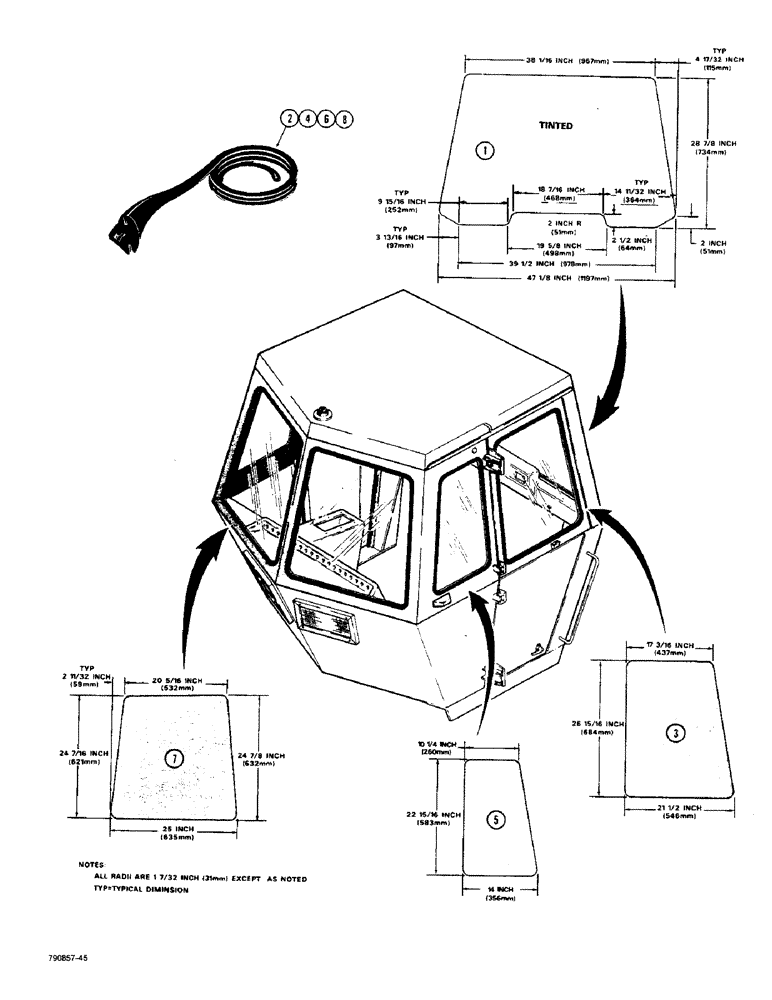

Запчасти Case W36 (9-534) - CAB GLASS AND MOLDINGS, PRIOR TO CAB SERIAL NUMBER 54970 (09) - CHASSIS

1

REF

INSTRUCTION

GLASS - windshield

1шт.

All cab glass must be obtained from local sources. Order laminated safety glass to dimensions shown on this figure's illustration.

1шт.

2

REF

INSTRUCTION

MOLDING - windshield, 149" (3785 mm) long, cut from L35717 bulk

1шт.

3

REF

INSTRUCTION

GLASS - door

2шт.

All cab glass must be obtained from local sources. Order laminated safety glass to dimensions shown on this figure's illustration.

1шт.

4

REF

INSTRUCTION

MOLDING - door, 96" (2438 mm) long, cut from L35717 bulk

2шт.

5

REF

INSTRUCTION

GLASS - side panel

2шт.

All cab glass must be obtained from local sources. Order laminated safety glass to dimensions shown on this figure's illustration.

1шт.

6

REF

INSTRUCTION

MOLDING - side panel, 73" (1854 mm) long, cut from L35717 bulk

2шт.

7

REF

INSTRUCTION

GLASS - rear window

2шт.

All cab glass must be obtained from local sources. Order laminated safety glass to dimensions shown on this figure's illustration.

1шт.

8

REF

INSTRUCTION

MOLDING - rear window, 98" (2489 mm) long, cut from L35717 bulk

2шт.

9

A42677

MOLDING

- bulk, 50 ft. (15.2 M) roll, not shown

1шт.

9

L35717

GASKET

MOLDING - bulk, 50 ft. (15.2 M) roll, not shown

1шт.
