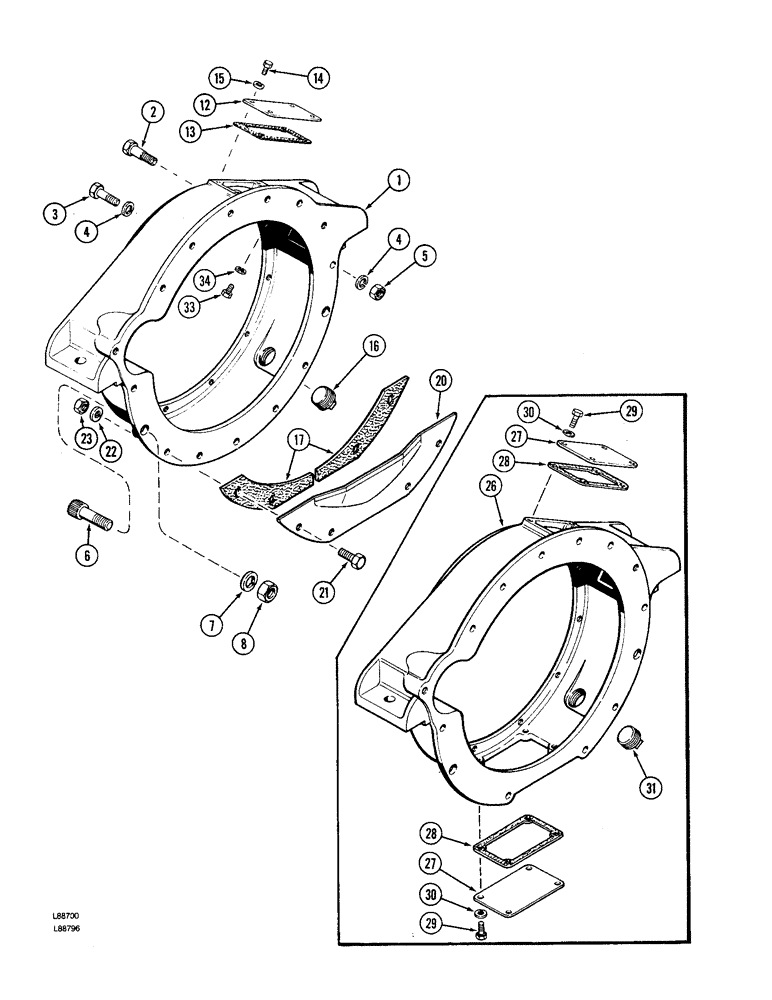

Запчасти Case W36 (2-34) - FLYWHEEL HOUSING, 504BDTI ENGINE (02) - ENGINE

1

A21040

HOUSING

- flywheel (J I Case installed) (Order A153190 housing, Ref. 26)

1шт.

2

A149764

STEP BOLT

BOLT - shoulder, hex, 1/2 NC x 3-3/8 inch

1шт.

2

A149765

STEP BOLT

BOLT - shoulder, hex, 1/2 NC x 2-13/16 inch

1шт.

3

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

3

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

3

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

2шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

6

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

BOLT - 12 point head, 3/4 NC x 3 inch

2шт.

7

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

8

129-137

NUT,3/4"-10, G5

2шт.

12

A22584

COVER

PLATE - hand hole cover

1шт.

13

A22585

GASKET

- cover plate

1шт.

14

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Plate to housing Hex, 5/16"-18 x 5/8", G5, Full Thd

4шт.

15

92-5

LOCK WASHER,5/16"

4шт.

16

221-17

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - housing, square head, 1-1/4 inch PT

1шт.

17

L111430

GASKET

- flywheel housing

2шт.

20

A58931

GUARD

SHIELD - dust

1шт.

21

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Shield to housing Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

22

92-8

LOCK WASHER,1/2"

4шт.

23

25-108

NUT,1/2"-13, G5

- hex, 1/2 inch NC

4шт.

26

A153190

HOUSING

ASSEMBLY - (Service only), Includes: Ref. 27 - 31

1шт.

27

A22584

COVER

PLATE - hand hole cover

2шт.

28

A22585

GASKET

- cover plate

2шт.

29

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

30

92-5

LOCK WASHER,5/16"

8шт.

31

221-17

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - square head, 1-1/4 inch PT

1шт.

33

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

34

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.
