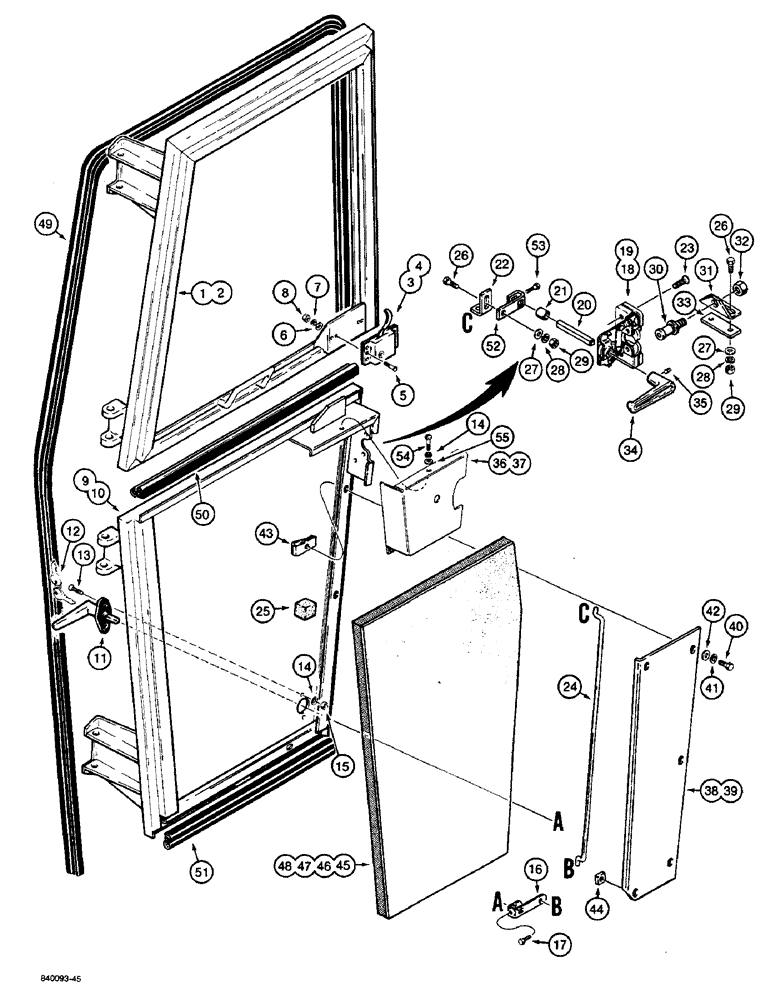

Запчасти Case W36 (9-524) - CAB DOORS, CAB SN 44769 THRU 54969 (09) - CHASSIS

1

N6994

DOOR

ASSEMBLY - upper, right-hand, service replacement, not shown, also includes Refs. 24-29 on Fig. 9-514, and all Refs. on Fig. 9-516

1шт.

2

N6995

DOOR

ASSEMBLY - upper, left-hand, service replacement, also includes Refs. 24-29 on Fig. 9-514, and all Refs. on Fig. 9-516

1шт.

3

D71511

LATCH

- upper door, left-hand

1шт.

4

D71512

LATCH

- upper door, right-hand, not shown

1шт.

5

182-532

SCREW,Sl Pan Hd, #10 - 32 x 3/4"

BOLT - pan head, slotted, no. 10 - 32 NF x 3/4"

4шт.

6

195-513

WASHER,#10

- flat, no 10

4шт.

7

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

8

129-37

NUT,#10-32

4шт.

9

N8622

DOOR

ASSEMBLY - lower, right-hand, not shown

1шт.

10

N8621

DOOR

ASSEMBLY - lower, left-hand

1шт.

11

D83139

HANDLE

ASSEMBLY - outside, locking, mounting holes on 1-13/16" centers, includes D83205 keys, Includes: Ref. 12

2шт.

12

D83205

KEY

- set of two

1шт.

13

182-532

SCREW,Sl Pan Hd, #10 - 32 x 3/4"

MACHINE SCREW - pan head slotted, no. 10 - 32 NF x 3/4"

4шт.

14

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

6шт.

15

129-37

NUT,#10-32

4шт.

16

N9750

LATCH

ARM - latch, bottom

2шт.

17

22-48

SELF-TAP SCREW,Hex, 1/4" - 20 x 1/2", Gr 2

BOLT - hex head, self-tapping, 1/4" - 20 NC x 1/2", if used

2шт.

17

187-1506

SELF-TAP SCREW,0.164"-32 x 1/2"

BOLT - hex head, self-tapping, 8-32" NC x 1/2", if used

2шт.

18

D88774

LATCH ASSY.

LATCH - door, left-hand

2шт.

19

D88776

LATCH ASSY.

LATCH - door, right-hand

2шт.

20

N8634

PIN

SHAFT - door latch

2шт.

21

N8633

SPACER

- door latch

2шт.

22

N8642

BRACKET

- latch rod

2шт.

23

171-250

SCREW,Sl Flat Hd, 1/4" - 20 x 3/4"

- flat head, slotted, 1/4" - 20 NC x 3/4"

8шт.

REF. 23 171-250 NSS MAY BE ABLE TO USE 443-12512 SAME SIZE ACCEPT OVAL HD

1шт.

24

D71516

ROD

- latch pull

2шт.

25

REF

INSTRUCTION

STRIP - foam, 1" (25 mm) long, if used, cut from L35741 bulk, see below

2шт.

26

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

27

195-102

WASHER,1/4"

- flat, 1/4"

6шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

29

25-104

NUT,1/4"-20, G5

6шт.

30

N8637

LATCH

STRIKER - door

2шт.

31

N8641

BRACKET

- striker

2шт.

32

131-926

NUT,Flg, USR, 7/16"-14

- self-locking, 7/16" - 14 NC

2шт.

33

N8632

SHIM

- bracket

1шт.

34

F63925

HANDLE

- inside, includes set screw, Includes: Ref. 35

2шт.

35

176-48

SET SCREW,5/16"-18 x 1 1/4", Slotted

- slotted, cone point, 5/16" - 18 NC x 1/4"

1шт.

36

N8639

COVER

- latch, left-hand

1шт.

37

N8640

COVER

- latch, right-hand, not shown

1шт.

38

N8630

PANEL

- door cover, right-hand, not shown

1шт.

39

N8629

PANEL

- door cover, left-hand

1шт.

40

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

10шт.

41

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

10шт.

42

195-102

WASHER,1/4"

- flat, 1/4"

10шт.

43

131-646

SPRING NUT,Tinn, U, 1/4"-20

- U-type

8шт.

44

129-504

NUT,Sq, 1/4"-20

- square, 1/4" - 20 NC

2шт.

45

D71514

FOAM

- lower door, right-hand, not shown, black

1шт.

46

D71515

INSULATOR

FOAM - lower door, left-hand, black

1шт.

47

N8627

FOAM

- lower door, right-hand, not shown, brown

1шт.

48

N8628

FOAM

- lower door, left-hand, brown

1шт.

49

REF

INSTRUCTION

SEAL - door frame, 173" (4394 mm) long, cut from F43086 bulk seal, see below

2шт.

50

REF

INSTRUCTION

SEAL - top of lower door, 24" (610 mm) long, cut from F43086 bulk seal, see below

2шт.

51

REF

INSTRUCTION

SEAL - bottom of lower door, 18" (457 mm) long, cut from F43086 bulk seal, see below

2шт.

52

N9750

LATCH

ARM - latch, top

2шт.

53

22-48

SELF-TAP SCREW,Hex, 1/4" - 20 x 1/2", Gr 2

BOLT - hex head, self-tapping, 1/4" - 20 NC x 1/2", if used

2шт.

53

187-1506

SELF-TAP SCREW,0.164"-32 x 1/2"

BOLT - hex head, self-tapping, 8-32" NC x 1/2", if used

2шт.

54

182-557

SCREW,Cross Pan Hd, #10-32 x 3/4"

- pan head, no. 10 - 32 NF x 3/4"

2шт.

55

195-513

WASHER,#10

- flat, no. 10

2шт.

L35741

FOAM

- bulk , 50 ft. (15.2 M) long

1шт.

F43086

SEAL

- bulk roll, 100 ft. (3048 CM) long

1шт.
