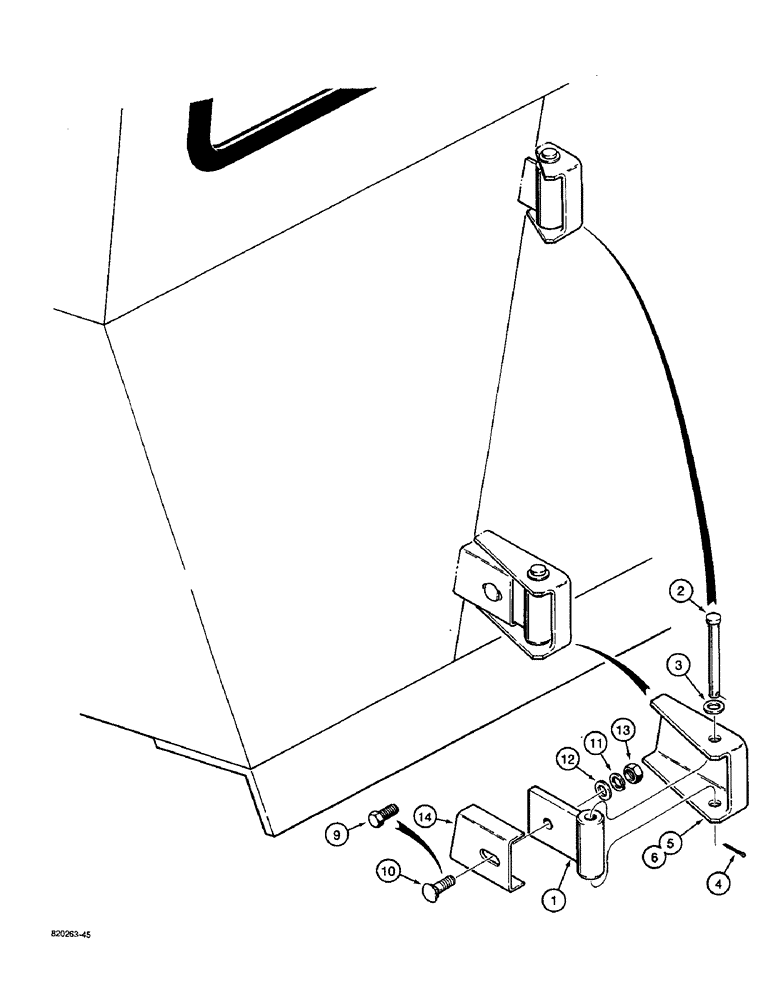

1
D71528
HINGE
- doors, adjustable
8шт.
2
N6998
PIN
- hinge, 4" long
8шт.
2
N6990
AXLE PIN
PIN - hinge, 3-7/16" long, if used
8шт.
3
195-104
WASHER,3/8"
- flat, 3/8"
8шт.
4
N6991
PIN
COTTER PIN - 5/32" x 3/4", brass
8шт.
5
NSS
NOT SOLD SEPARAT
BRACKET - hinge, long, right-hand
4шт.
6
NSS
NOT SOLD SEPARAT
BRACKET - hinge, long, left-hand, not shown
4шт.
7
RESERVED
1шт.
8
RESERVED
1шт.
9
113-206
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
12шт.
10
111-316
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5
BOLT, CARRIAGE, , If used Short NK, 3/8"-16 x 1", G5
8шт.
11
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
12шт.
12
195-104
WASHER,3/8"
- flat, 3/8"
12шт.
13
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, , If used 3/8"-16, G5
12шт.
14
NSS
NOT SOLD SEPARAT
BRACKET - hinge, if used
4шт.
