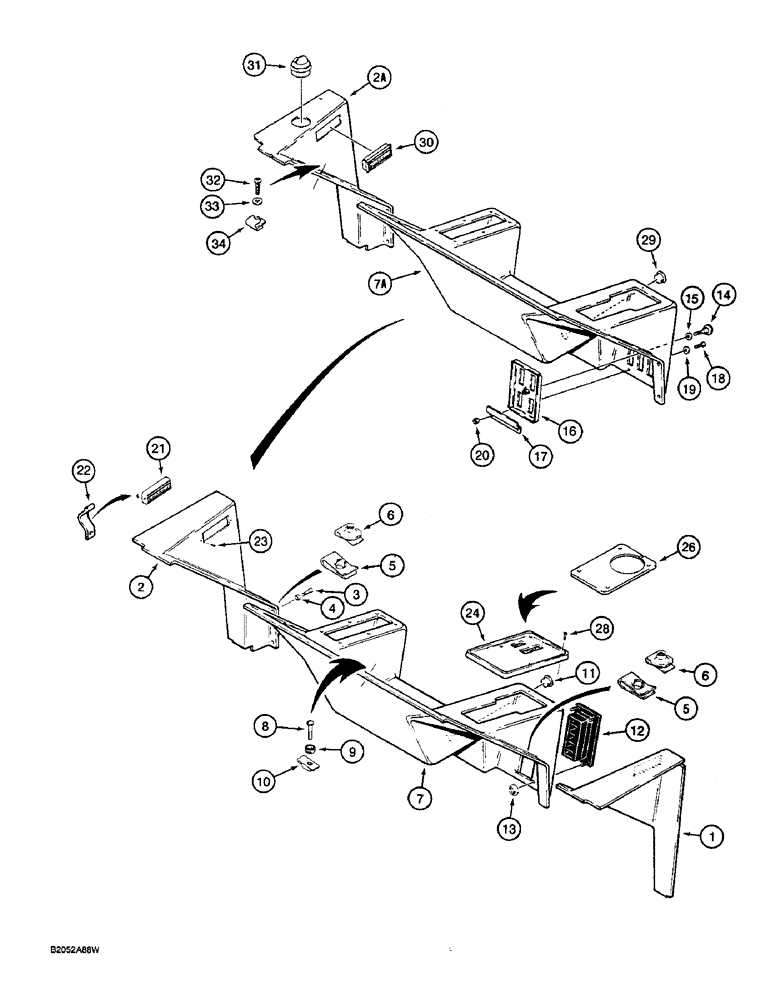

Запчасти Case W36 (9-510) - CAB CLOSURE PARTS (09) - CHASSIS

1

L74567

PANEL

- right-hand side, cab, black

1шт.

1

L111763

PANEL

- right-hand side, brown, used with one bolt-on rectangular louver

1шт.

1a

L115316

PANEL

- right-hand, brown, used with two self-retained louvers, not shown

1шт.

2

L74562

PANEL

- left-hand, cab, black

1шт.

2

L111762

PANEL

- left-hand, brown, used with one bolt-on rectangular louver

1шт.

2a

L115317

PANEL

- left-hand, brown, used with two self-retained louvers, if used

1шт.

3

187-1906

SELF-TAP SCREW,Cross Oval Hd, #10 x 1"

SCREW - oval head, no. 10 - 16 NC x 1"

14шт.

4

F43576

WASHER

- special, black, nylon

14шт.

5

131-642

SPRING NUT,Tinn, U, #10

- U-type, no. 10

8шт.

6

131-645

NUT,Tinn, U, #10

- U-type, no. 10

4-1шт.

7

L103722

PANEL

- center, black

1шт.

7

L111750

PANEL

- center, brown, with stationary louvers

1шт.

7a

L116036

PANEL

- center, brown, with sliding air vents, if used

1шт.

8

187-1099

SELF-TAP SCREW,Cross Oval Hd, #10 x 1 1/4"

SCREW - oval head, no. 10 - 16 NC x 1-1/4"

5шт.

9

F43576

WASHER

- countersunk, black, nylon

5шт.

10

131-642

SPRING NUT,Tinn, U, #10

- U-type, no. 10

5шт.

11

353-416

PLUG,Dome, 1.750" hole, Nylon

- nylon, 1-3/4" diameter

1шт.

12

F43507

PLATE

LOUVER - outlet

2шт.

13

131-436

LOCK NUT,Push, 3/16"

NUT - special, 3/16"

8шт.

14

L79129

KNOB

- air vent slide plate, if used

2шт.

15

195-518

WASHER,1/4", SAE

- flat, 1/4", plated, if used

2шт.

16

N9889

PLATE

- vented, sliding, if used

2шт.

17

N9888

BRACKET

- slide, vent plate, if used

4шт.

18

182-559

SCREW,Cross Pan Hd, #10-24 x 3/4"

MACHINE SCREW - pan Phillips head, no. 10 - 24 NC x 3/4", plated, if used

8шт.

19

195-516

WASHER,#12

- flat, no. 10, plated, if used

8шт.

20

129-17

NUT,Hex, #10 - 24

NUT - hex, no. 10 - 24 NC, plated, if used

8шт.

21

F89673

GUARD

LOUVER - square type

2шт.

22

A42575

CLIP

- louver

4шт.

23

151-502

RIVET,Pop, 1/8" x 5/16"

- dome head, 1/8" x 13/32"

4шт.

24

L78688

PANEL

- control cover, 2 spool, used before hydraulic assist

1шт.

25

L78659

PANEL

- control cover, 3 spool, used before hydraulic assist, not shown

1шт.

26

L104307

COVER

PANEL - control cover, 2 spool, used with hydraulic assist, black

1шт.

26

L111756

COVER

PANEL - control cover, 2 spool, used with hydraulic assist, brown

1шт.

27

L104306

COVER

PANEL - control cover, 3 spool, used with hydraulic assist, black, not shown

1шт.

27

L111757

COVER

PANEL - control cover, 3 spool, used with hydraulic assist, black, not shown

1шт.

28

187-1098

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - self-tapping, no. 10 - 16 NC x 3/4"

6шт.

29

353-416

PLUG,Dome, 1.750" hole, Nylon

- nylon, 1-3/4" diameter

1шт.

30

N9887

VENT (AIR)

LOUVER - rectangular, self-retaining, if used

2шт.

31

N9886

STEERING KNUCKLE

LOUVER - ball-type, self-retaining, if used

2шт.

32

182-559

SCREW,Cross Pan Hd, #10-24 x 3/4"

MACHINE SCREW - pan Phillips head no. 10 - 24 NC x 3/4", plated, if used

11шт.

33

195-516

WASHER,#12

- flat, 1/4" x 9/16", plated, if used

11шт.

34

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

- J-type, no. 10 - 24 NC, if used

16шт.
