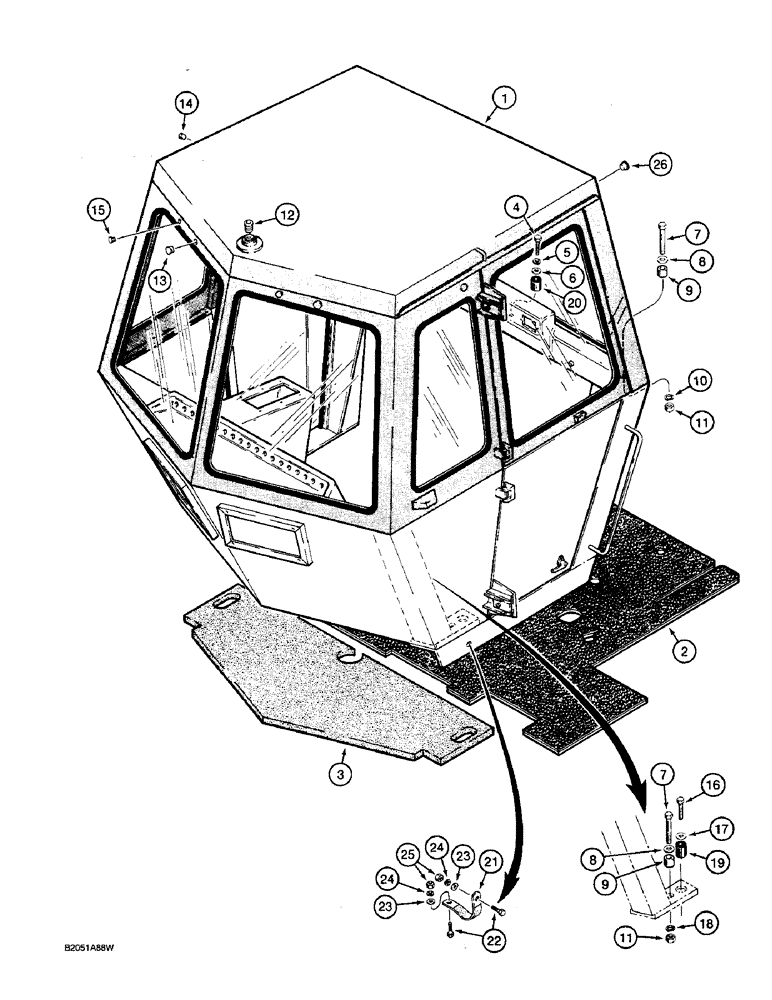

Запчасти Case W36 (9-508) - CAB MOUNTING (09) - CHASSIS

1

REF

INSTRUCTION

CAB - operators, machinery item, order from Machinery Price List

1шт.

2

L71663

MAT

- floor, used without remote loader control

1шт.

2a

L118010

MAT

- floor, used without loader controls, not shown, also order L114090 horn valve spacer, (2) 13-420 bolts and (2) 131-2 nuts on Fig. 7-354

1шт.

3

L71329

SEAL

- floor

1шт.

4

L113564

BOLT

BOLT - hex head, 1/2" - 13 NC x 3-3/4", special

1шт.

5

92-8

LOCK WASHER,1/2"

1шт.

6

195-2054

WASHER,17/32" x 2" x .238"

- flat, 1/2"

1шт.

7

26-1680

BOLT,Hex, 1" - 8 x 5", Gr 8

- hex head, 1" - 8 NC x 5"

4шт.

8

L71658

WASHER

- flat, special

4шт.

9

L71657

SPACER

- mounting

4шт.

10

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- hardened

2шт.

11

131-199

LOCK NUT,1"-8, GC

NUT - hex, self-locking, 1" - 8 NC

4шт.

12

353-679

PLUG,Hex Soc, 1"-11 1/2 NPT

- pipe, 3/4" NPT

1шт.

13

353-406

PLUG,Dome, .625" hole, Nylon

- button, 5/8"

2шт.

14

353-405

PLUG,Dome, .562" hole, Nylon

- 9/16", if used

2шт.

14

353-407

PLUG,Dome, .687" hole, Nylon

- 11/16", if used

2шт.

15

353-421

PLUG,Dome, .187" hole, Nylon

2шт.

16

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex head, 1/2" - 13 NC x 3"

2шт.

17

195-2055

WASHER,17/32" x 2 1/4" x .180"

- flat, 1/2"

2шт.

18

92-8

LOCK WASHER,1/2"

2шт.

19

D74445

RUBBER MOUNTING

CUSHION - rubber mount

2шт.

20

N8800

RUBBER MOUNTING

CUSHION - rubber mount

1шт.

21

D120366

STRAP

- ground, cab

1шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

23

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - flat, 3/8"

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

26

353-676

PLUG - pipe, hex socket, plastic, 3/8" NPT

2шт.
