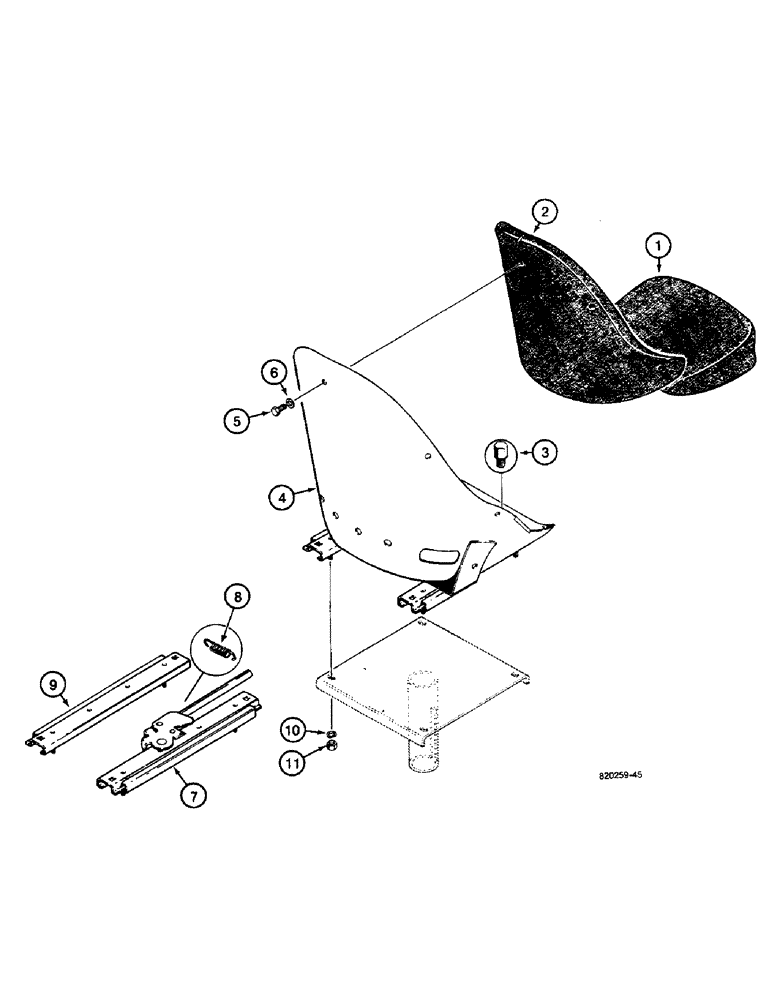

Запчасти Case W36 (9-498) - L46484, L77247 AND D124790 SEAT ASSEMBLIES (09) - CHASSIS

L46484

SEAT

ASSEMBLY - side adjustment lever, not available, order D124790 seat, Includes: Ref. 1 - 11

1шт.

L77247

SEAT

ASSEMBLY - front adjustment lever, not available, order D124790 seat, Includes: Ref. 1 - 11

1шт.

D124790

SEAT

ASSEMBLY - side adjustment lever, Includes: Ref. 1 - 11

1шт.

1

D52470

CUSHION

- seat, L46484 or L77247 seat only

1шт.

1

N8761

CUSHION

- seat, D124790 seat only

1шт.

2

A42747

BACKREST

CUSHION - backrest, L46484 or L77247 seat only

1шт.

2

N8762

CUSHION

- backrest, D124790 seat only

1шт.

3

D77386

PIN

- cushion alignment

2шт.

4

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

5шт.

6

195-103

WASHER,5/16"

- flat, , plated 5/16"

5шт.

7

D59688

SLIDE

- with handle, replaces side adjustment lever, Includes: Ref. 8

1шт.

8

L35503

SPRING

- adjusting

2шт.

9

L35272

ADJUSTER

SLIDE - without handle

1шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

11

129-122

NUT,5/16"-24, G5

4шт.
