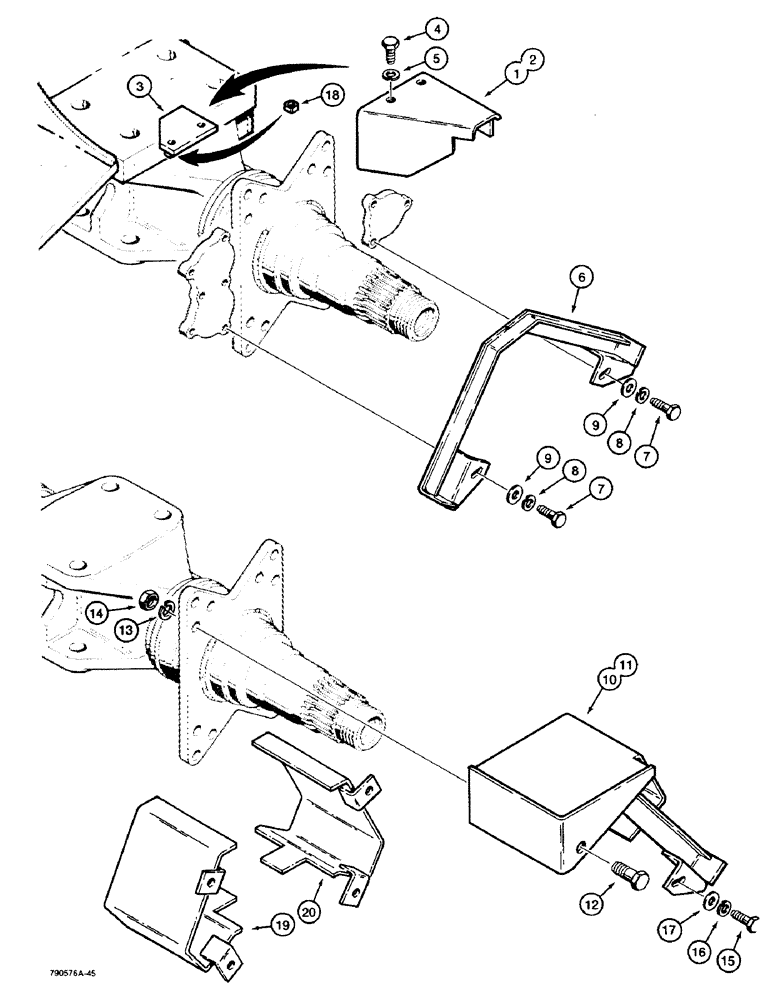

Запчасти Case W36 (9-494) - FORESTRY BRAKE LINE GUARDS (09) - CHASSIS

1

L74304

DEFLECTOR

- brake line, right-hand

1шт.

2

L74305

DEFLECTOR

- brake line, left-hand

1шт.

3

L74814

PLATE

- deflector, weld in place

2шт.

4

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

5

92-8

LOCK WASHER,1/2"

4шт.

6

L74272

GUARD ASSY.

GUARD - brake line, front, Rockwell axles

2шт.

7

26-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

- hex head, 1/2" - 13 NC x 2"

4шт.

8

92-8

LOCK WASHER,1/2"

4шт.

9

95-8

WASHER,1/2"

flat 1/2"

4шт.

10

L77185

GUARD ASSY.

GUARD - brake line, right-hand, rear, Rockwell axles

1шт.

11

L77186

GUARD ASSY.

GUARD - brale line, left-hand, rear, Rockwell axles

1шт.

12

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

13

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

14

25-1012

NUT,3/4"-10, G5

2шт.

15

26-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

- hex head, 1/2" - 13 NC x 2"

2шт.

16

92-8

LOCK WASHER,1/2"

2шт.

17

95-8

WASHER,1/2"

flat 1/2"

2шт.

18

25-288

SQUARE NUT,Sq, 1/2"-13, G2, Hvy

- square, 1/2" - 13 NC

2шт.

19

L110873

GUARD ASSY.

GUARD - brake line, GKN axle, mount to brake piston cover plate

2шт.

20

L110874

GUARD ASSY.

GUARD - brake line, GKN axle, mount to brake piston cover plate

2шт.
