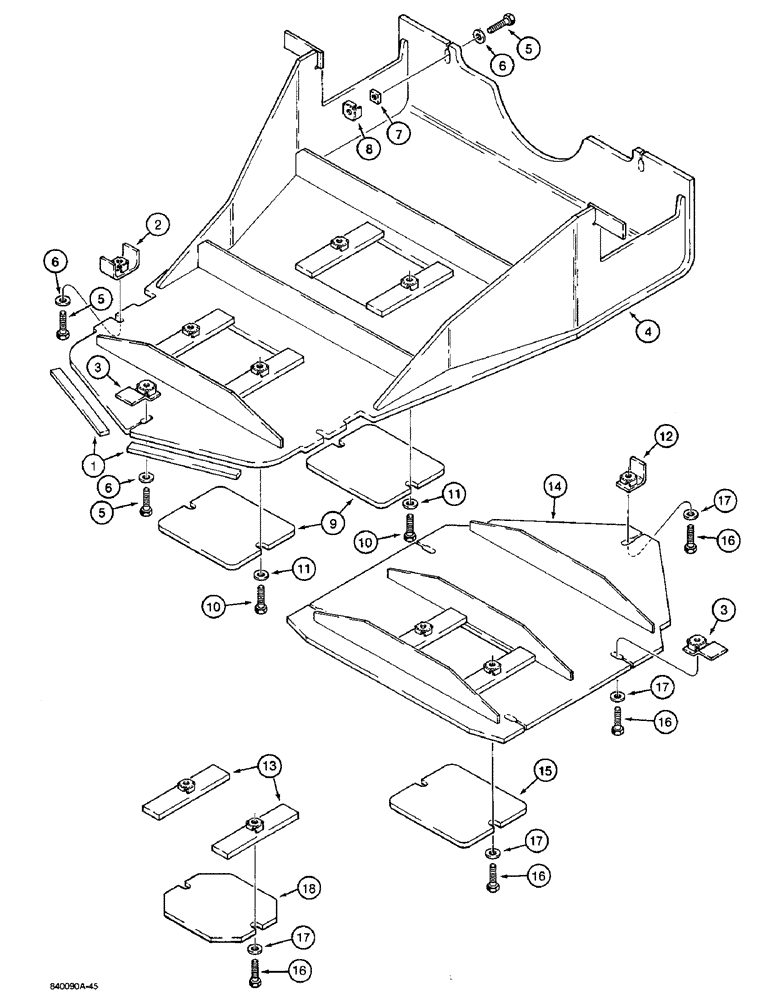

Запчасти Case W36 (9-492) - DRIVE LINE GUARDS (09) - CHASSIS

1

L77272

STOP

- guard, weld on

2шт.

2

L77273

MOUNTING PARTS

MOUNT - guard, weld on

2шт.

3

L76497

COMPENSATOR

BRACKET - guard mounting, weld on

5шт.

4

L76494

SUMP

GUARD - front drive line, Includes: Ref. 9, 10 and 11

1шт.

5

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

5шт.

6

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - 5/8", special

5шт.

7

25-2210

NUT,Sq, 5/8"-11

- square, 5/8" - 11 NC

2шт.

8

D35240

CAGE

- nut, weld on

2шт.

9

L77116

PLATE

- access cover

2шт.

10

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

11

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - 5/8", special

4шт.

12

L76499

COMPENSATOR

MOUNT - rear guard, weld on

1шт.

13

L77108

COMPENSATOR

BRACKET - access cover plate, weld on

2шт.

14

L76495

SUMP

GUARD- rear drive line, includes (1) Ref. 15

1шт.

15

L77116

PLATE

- access cover

1шт.

16

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

9шт.

17

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - 5/8", special

9шт.

18

L78789

COVER PLATE

PLATE - access cover

1шт.
