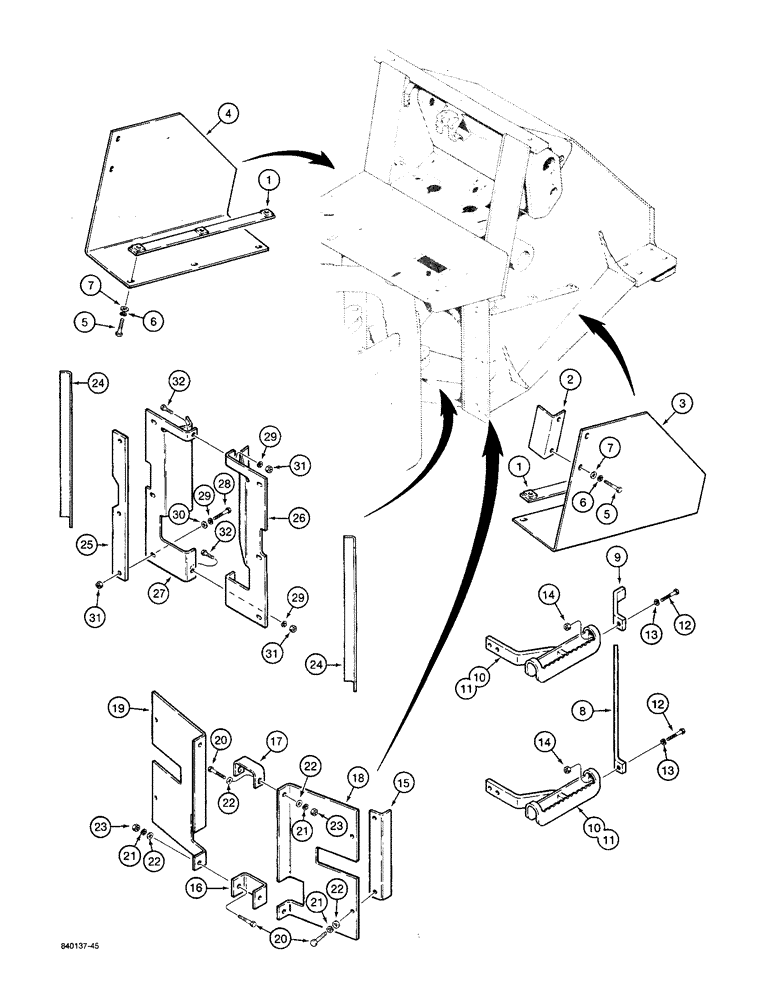

Запчасти Case W36 (9-490) - GUARDS - FORESTRY MODELS (09) - CHASSIS

1

L77232

SUPPORT

- lift cylinder guard, lower, weld on

2шт.

2

L77222

SUPPORT

- lift cylinder guard, upper, weld on

2шт.

3

L77211

GUARD

- lift cylinder, right-hand

1шт.

4

L77212

GUARD

- lift cylinder, left-hand

1шт.

5

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

10шт.

6

92-8

LOCK WASHER,1/2"

10шт.

7

95-8

WASHER,1/2"

flat 1/2"

10шт.

8

L78805

SUPPORT

- lower step, weld on

2шт.

9

L78806

SUPPORT

- upper step, weld on

2шт.

10

L79770

STEP

- right-hand, forestry

2шт.

11

L79771

STEP

- left-hand, forestry

2шт.

12

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

4шт.

13

95-8

WASHER,1/2"

- lock, 1/2"

4шт.

14

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

15

L77275

GUARD ASSY.

BRACKET - steering cylinder guard, weld on

2шт.

16

L74278

PLATE

- shield mounting, lower, weld on

1шт.

17

L74279

COVER PLATE

PLATE - shield mounting, upper, weld on

1шт.

18

L74300

COVER

GUARD - drive train, right-hand

1шт.

19

L74301

COVER

GUARD - drive train, left-hand

1шт.

20

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

21

92-8

LOCK WASHER,1/2"

8шт.

22

95-8

WASHER,1/2"

flat 1/2"

10шт.

23

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

24

L74276

PLATE

- guard, rear frame, weld on

2шт.

25

L74273

PLATE

- mounting, drive train guard, weld on, if used

2шт.

26

L74285

COVER

- drive train, right-hand, if used

1шт.

27

L74286

COVER

- drive train, left-hand, if used

1шт.

28

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

29

92-8

LOCK WASHER,1/2"

8шт.

30

95-8

WASHER,1/2"

flat 1/2"

6шт.

31

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

8шт.

32

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.
