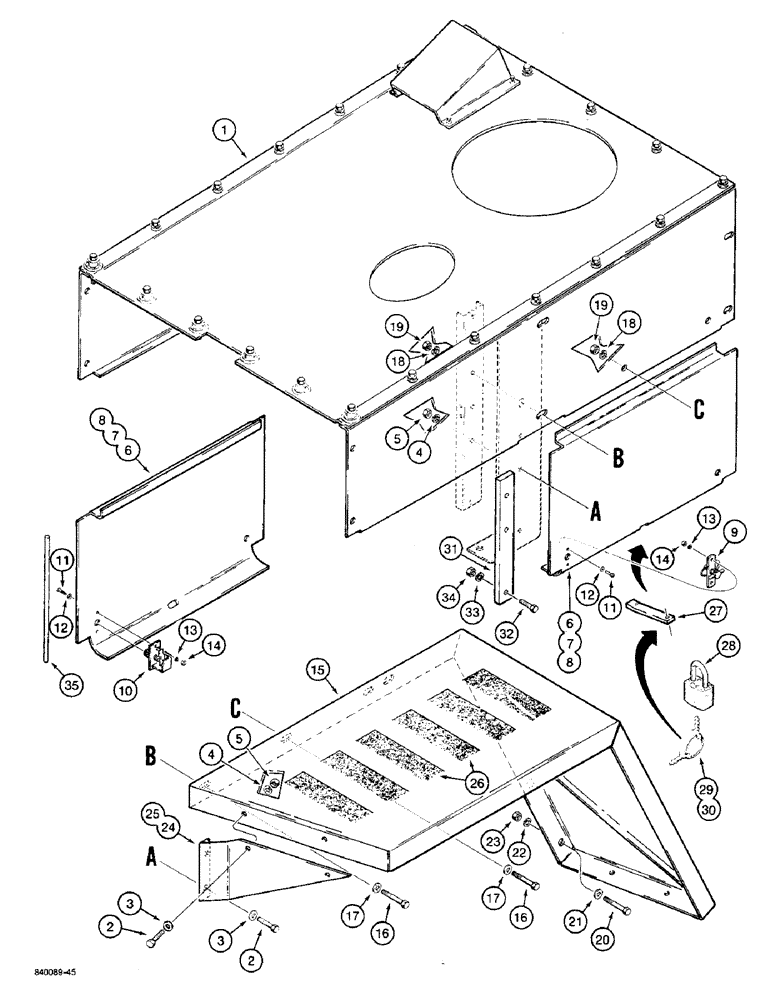

Запчасти Case W36 (9-484) - SIDE PANELS AND REAR FENDERS (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
HOOD - engine, see Figure 8-402
1шт.
2
13-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
8шт.
3
95-8
WASHER,1/2"
flat 1/2"
8шт.
4
92-8
LOCK WASHER,1/2"
8шт.
5
25-108
NUT,1/2"-13, G5
- hex, 1/2" - 13 NC
8шт.
6
L71325
PANEL
- standard models with R25164 latch, use L102509 panel and L102515 latch
4шт.
6
L77172
PANEL
- forestry models with R25164 latch, use L101204 panel and L102515 latch
4шт.
7
L102509
PANEL
- standard models with L102515 latch
4шт.
8
L101204
PANEL
- forestry models with L102515 latch
4шт.
9
L102515
LATCH
- L102509 and L101204 panels
8шт.
10
R25164
FASTENER
LATCH - L71325 and L77172 panels
8шт.
11
171-77
SCREW,Sl Flat Hd, #8 - 32 x 1/2"
- flat head, no. 8 - 32 NC x 1/2"
16шт.
12
195-10
WASHER,#8
16шт.
13
192-10
WASHER - lock, no. 8
16шт.
Ref. 13 - (Not set up) Use 192-16, or 192--80
1шт.
14
129-6
NUT,#8-32
16шт.
15
L70898
FENDER
- rear
2шт.
16
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
8шт.
17
95-8
WASHER,1/2"
flat 1/2"
8шт.
18
92-8
LOCK WASHER,1/2"
8шт.
19
25-108
NUT,1/2"-13, G5
- hex, 1/2" - 13 NC
8шт.
20
13-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
4шт.
21
95-8
WASHER,1/2"
flat 1/2"
4шт.
22
92-8
LOCK WASHER,1/2"
4шт.
23
25-108
NUT,1/2"-13, G5
- hex, 1/2" - 13 NC
4шт.
24
L70888
BRACKET
- right-hand
1шт.
25
L70889
BRACKET
- left-hand
1шт.
26
D55216
PAD,2" x 9"
PAD - non skid
12шт.
27
L71624
STRIP
BRACKET - side panel lock, weld on, if used
4шт.
28
D93753
PADLOCK
- includes keys, if used, Includes: Ref. 29 and 30
4шт.
29
D93751
SET OF 2 KEYS
KEY - for Yale padlock only, if used
2шт.
30
R29555
KEY
- for Master padlock only, if used
2шт.
31
L77175
COVER PLATE
PLATE - deflector, forestry guard, if used
2шт.
32
13-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
- hex head, 1/2" - 13 NC x 1-3/4"
6шт.
33
92-8
LOCK WASHER,1/2"
6шт.
34
25-108
NUT,1/2"-13, G5
- hex, 1/2" - 13 NC
6шт.
35
L74284
ROD
- side panel, forestry guard, weld on, if used
4шт.
Выбрано товаров: 37
