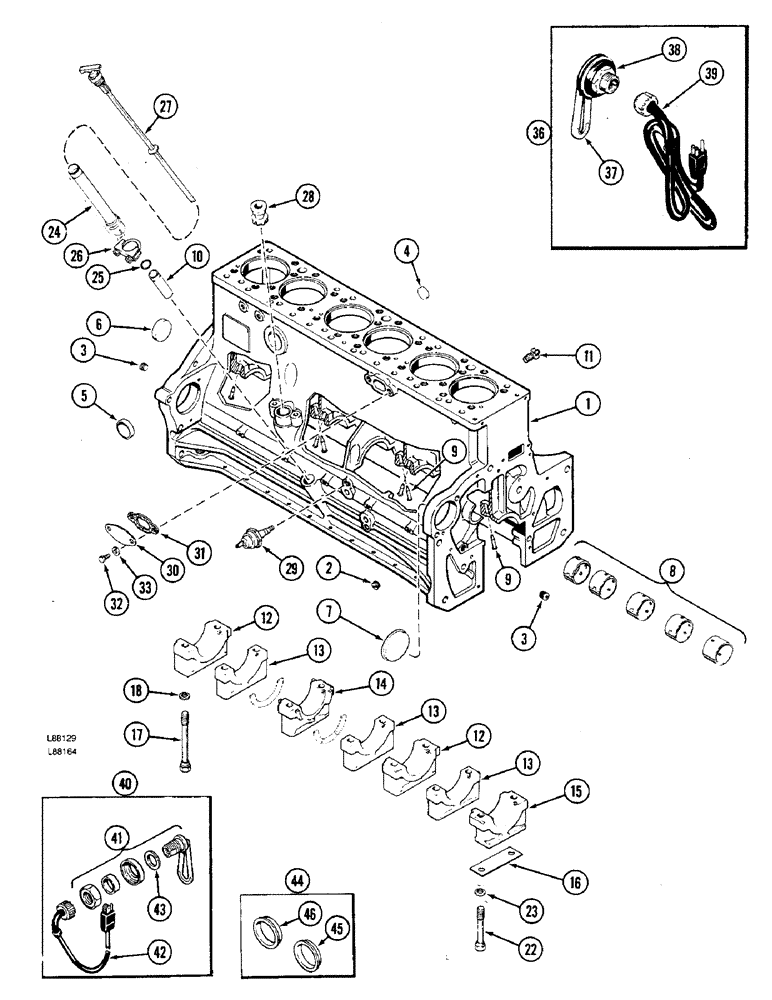

Запчасти Case W36 (2-30) - CYLINDER BLOCK, 504BDTI ENGINE (02) - ENGINE

A152855

SKELETON ENGINE

BLOCK ASSEMBLY - short (Includes stripped block, piston assembly, connecting rods and bearings, camshaft, crankshaft and bearings and timing gears), Includes: Ref. 1 - 18

1шт.

AR152855

REMAN-SHORT ENGINE

Remanufactured, For N.A. Only

1шт.

AC152855

CORE-SHORT ENGINE

Return Number, For N.A. Only

1шт.

1

A44077

CRANKCASE

BLOCK ASSEMBLY - stripped (Casting no. A66527), Includes: Ref. 2 - 18

1шт.

2

221-1849

PLUG

PLUG - oil gallery, slotted head, 1/8 inch PT

5шт.

3

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - oil gallery, socket head, 3/8 inch PT

4шт.

4

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - water gallery, cup, 1-3/8 inch

3шт.

5

A58569

PLUG,Cup, 2", Stainless

PLUG - heater hole, cup, 2 inch

1шт.

6

A24361

PLUG

PLUG - camshaft hole, cup, 2-3/8 inch

1шт.

7

41-1052

PLUG,Cup, 3 1/4"

PLUG - auxiliary drive opening, cup, 3-1/4 inch

1шт.

8

REF

INSTRUCTION

BUSHING - camshaft (See Fig. 2-28)

1шт.

9

A63903

NOZZLE CAP

NOZZLE - piston oil cooling

6шт.

10

A34540

TUBE

TUBE - oil filler socket

1шт.

11

A23656

COCK, DRAIN

VALVE - drain, water

1шт.

12

A154398

BEARING CAP

CAP - main bearing, wide (Replaces A58562)

2шт.

13

A154397

BEARING CAP

CAP - main bearing, narrow (Replaces A58563)

3шт.

14

A154395

CAP

CAP - main bearing, thrust (Replaces A58564)

1шт.

15

A154396

BEARING CAP

CAP - main bearing, front (Replaces A63902)

1шт.

16

A58859

SHIM,.005" Thk

SHIM, , Oil pump to front brg. cap .005" Thk

1шт.

17

A66948

STEP BOLT

BOLT - bearing caps, special, 5/8 NC x 5 inch

12шт.

18

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - bearing cap bolts, 5/8 x 1 x 1/8 inch

12шт.

22

A66949

STEP BOLT

BOLT - front bearing cap, special, 5/8 NC x 7-1/4 inch

2шт.

23

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - front bearing cap bolt, 5/8 x 1 x 1/8 inch

2шт.

24

A153835

TUBE

TUBE - oil filler extension (Replaces A65778)

1шт.

25

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

O-RING - extension tube, 1-1/8 x 1-3/8 x 1/8 inch

1шт.

26

L47766

CLAMP

CLAMP - tube (Replaces 214-256)

1шт.

27

A155796

DIPSTICK

DIPSTICK ASSEMBLY - (Replaces A138327)

1шт.

28

A34266

DRIVE

DRIVE ASSEMBLY - tachometer

1шт.

29

A66737

SWITCH, PRESSURE

PRESSURE SWITCH SENDING UNIT - oil pressure switch, front oil gallery hole

1шт.

30

A58851

PLATE

PLATE - oil cooler water opening

1шт.

31

A58670

GASKET

GASKET - plate

1шт.

32

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

BOLT - plate to block, hex, 1/2 NC x 7/8 inch

2шт.

33

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

2шт.

36

A44812

HEATER

HEATER ASSEMBLY - block (Order A182017 or A182020), Includes: Ref. 37 - 39

1шт.

37

NSS

NOT SOLD SEPARAT

ELEMENT - heater, block

1шт.

38

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

O-RING - 1-3/4 x 2 x 1/8 inch, block heater

1шт.

39

A44813

CABLE EXTENSION

CORD - heater, block

1шт.

40

A182017

HEATER ASSY.

HEATER ASSEMBLY - block (USA), block, Includes: Ref. 41 - 43

1шт.

40

A182020

HEATER ASSY.

HEATER ASSEMBLY - block (Canada), Includes: Ref. 41 - 43

1шт.

41

NSS

NOT SOLD SEPARAT

ELEMENT - heater, block

1шт.

42

A44813

CABLE EXTENSION

CORD - 12 inch, block heater

1шт.

43

A45114

GASKET

GASKET - element, block heater

1шт.

44

A44006

SLEEVE

SLEEVE KIT - heater installation, block, Includes: Ref. 45 and 46

1шт.

45

NSS

NOT SOLD SEPARAT

SLEEVE - for 2-1/16 inch diameter hole, block heater

1шт.

46

NSS

NOT SOLD SEPARAT

SLEEVE - for 2-1/8 inch diameter hole, block heater

1шт.

AR44090

ENGINE, EXCHANGE

ENGINE (EXCHANGE) BLOCK reman short, can be used, heater

1шт.
