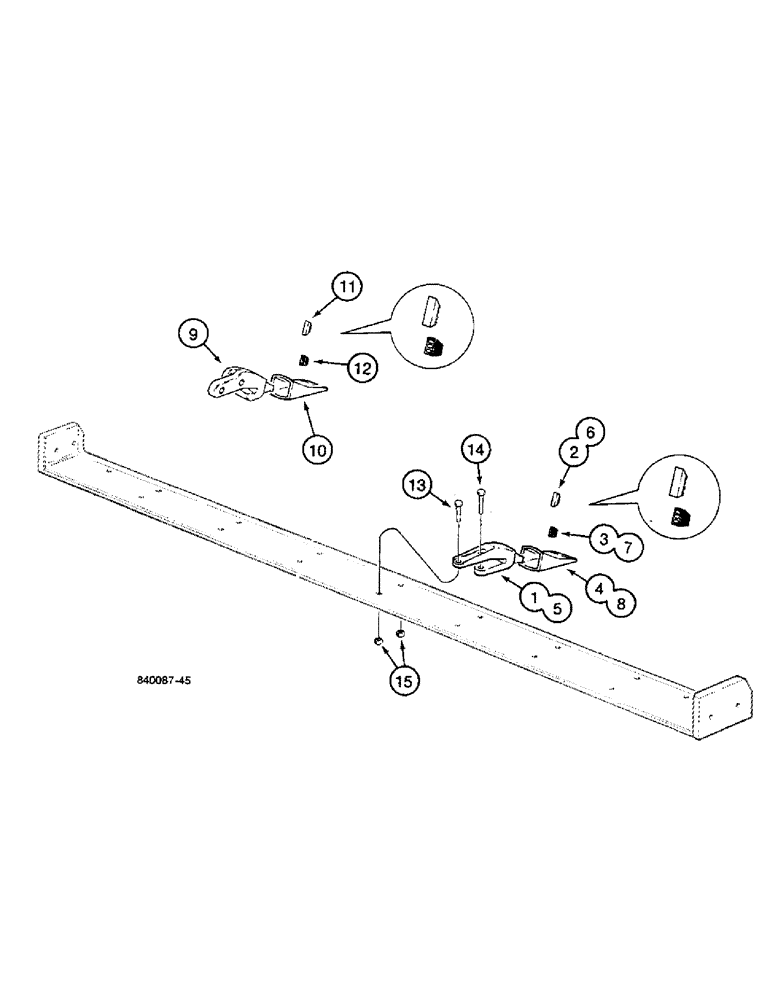

Запчасти Case W36 (9-474) - BUCKET TEETH (09) - CHASSIS

L74010

TOOTH

ASSEMBLY - bucket, 25 point, 25 is marked on tooth, used on buckets without corner teeth, Includes: Ref. 1 - 4

9шт.

1

D75879

SHANK

- tooth

1шт.

2

R31916

PIN

- tooth

1шт.

3

R31917

KEY

LOCK - pin

1шт.

4

R35707

TOOTH

POINT - tooth

1шт.

L105102

TOOTH

ASSEMBLY - bucket, 30 point, 30 is marked on tooth, used on buckets with corner teeth, Includes: Ref. 5 - 8

7шт.

5

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

6

R31916

PIN

- tooth

1шт.

7

R31917

KEY

LOCK - pin

1шт.

8

R31915

POINT

- tooth

1шт.

L106664

TOOTH

ASSEMBLY - bucket corner, right-hand, used with L105102 teeth, Includes: Ref. 9 - 12

1шт.

L106665

TOOTH

ASSEMBLY - bucket corner, left-hand, used with L105102 teeth, Includes: Ref. 9 - 12

1шт.

9

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

10

R31915

POINT

- tooth

1шт.

11

R31916

PIN

- tooth

1шт.

12

R31917

KEY

LOCK - pin

1шт.

13

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

If used Hex, 3/4"-10 x 2 1/2", G5

9шт.

14

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

If used Hex, 3/4"-10 x 3", G5

9шт.

15

25-1012

NUT,3/4"-10, G5

18шт.

16

13-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

If used Hex, 3/4"-10 x 3 1/4", G5

18шт.
