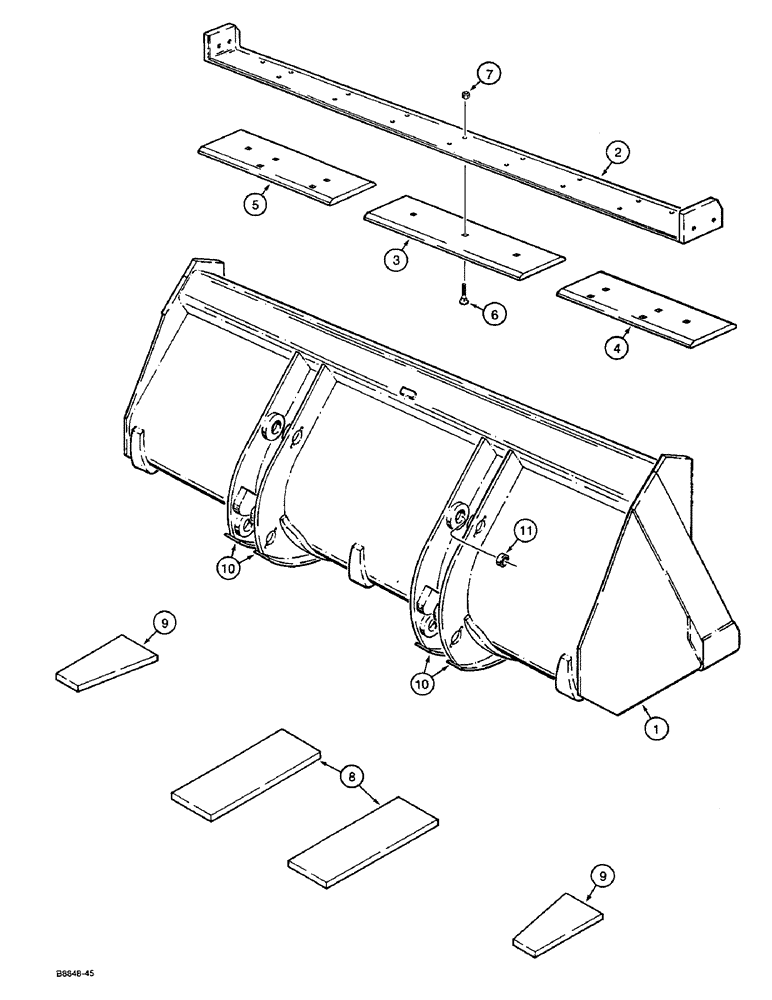

Запчасти Case W36 (9-472) - LOADER BUCKETS, 3-1/2 CUBIC YD (2.7 CUBIC METER) BUCKET, 4 CUBIC YD (3.1 CUBIC METER) BUCKET (09) - CHASSIS

L79018

BUCKET ASSEMBLY - loader, machinery item, replaced by L104932 bucket, Includes: Ref. 1 and 2

1шт.

L104932

BUCKET

ASSEMBLY - loader, machinery item, replaced by L113256 bucket, Includes: Ref. 1 and 2

1шт.

L113256

BUCKET ASSEMBLY - loader, order from Machinery Price List, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

L111835

EDGE

PLATE - cutting edge, weld on, used on L79018 and L104932 buckets

1шт.

2

L112526

EDGE, CUTTING

PLATE - cutting edge, weld on, used on L113256 bucket

1шт.

3

L111773

EDGE

PLATE - cutting edge, center, bolt on, 3 bolt holes, if used

1шт.

3

L115724

EDGE, CUTTING

PLATE - cutting edge, center, bolt on, 6 bolt holes, if used

1шт.

4

L111774

EDGE

PLATE - cutting edge, end, right-hand, bolt on, 3 bolt holes, if used

1шт.

4

L115725

EDGE, CUTTING

PLATE - cutting edge, end, right-hand, bolt on, 5 bolt holes, if used

1шт.

5

L111774

EDGE

PLATE - cutting edge, end, left-hand, bolt on, 3 bolt holes, if used

1шт.

5

L118158

EDGE, CUTTING

PLATE - cutting edge, end, left-hand, bolt on, 5 bolt holes, if used

1шт.

6

118-507

PLOW BOLT,3/4"-10 x 3 1/4", G8

BOLT - plow, 3/4" - 10 NC x 3-1/4"

16шт.

7

129-572

NUT,3/4"-10, G8

16шт.

8

L116323

PLATE

- skid

2шт.

9

L116634

PLATE

- skid, outer

2шт.

10

L72799

PLATE

- wear

4шт.

11

D51545

BUSHING,63.75mm ID x 76.2mm OD x 38.1mm L

- bucket

8шт.

L105010

BUCKET ASSEMBLY - loader, long lip, order from Machinery Price List, 4 cubic yard (3.1 cubic meter), Includes: Ref. 1 and 2

1шт.

L79019

BUCKET ASSEMBLY - loader, machinery item, replaced by L104931 bucket, 4 cubic yard (3.1 cubic meter), Includes: Ref. 1 and 2

1шт.

L104931

BUCKET

ASSEMBLY - loader, machinery item, replaced by L112622 bucket, 4 cubic yard (3.1 cubic meter), Includes: Ref. 1 and 2

1шт.

L112622

BUCKET ASSEMBLY - loader, order from Machinery Price List, 4 cubic yard (3.1 cubic meter), Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 4 cubic yard (3.1 cubic meter)

1шт.

2

L111835

EDGE

PLATE - cutting edge, weld on, used on L79019 and L104931 buckets, 4 cubic yard (3.1 cubic meter)

1шт.

2

L112526

EDGE, CUTTING

PLATE - cutting edge, weld on, used on L105010 and L112622 buckets, 4 cubic yard (3.1 cubic meter)

1шт.

3

L111773

EDGE

PLATE - cutting edge, center, bolt on, 3 bolt holes, if used, 4 cubic yard (3.1 cubic meter) bucket

1шт.

3

L115724

EDGE, CUTTING

PLATE - cutting edge, center, bolt on, 6 bolt holes, if used, 4 cubic yard (3.1 cubic meter) bucket

1шт.

4

L111774

EDGE

PLATE - cutting edge, end, right-hand, bolt on, 3 bolt holes, if used, 4 cubic yard (3.1 cubic meter) bucket

1шт.

4

L115725

EDGE, CUTTING

PLATE - cutting edge, end, right-hand, bolt on, 5 bolt holes, if used, 4 cubic yard (3.1 cubic meter) bucket

1шт.

5

L111774

EDGE

PLATE - cutting edge, end, left-hand, bolt on, 3 bolt holes, if used, 4 cubic yard (3.1 cubic meter) bucket

1шт.

5

L118158

EDGE, CUTTING

PLATE - cutting edge, end, left-hand, bolt on, 5 bolt holes, if used, 4 cubic yard (3.1 cubic meter) bucket

1шт.

6

118-507

PLOW BOLT,3/4"-10 x 3 1/4", G8

BOLT - plow, 3/4" - 10 NC x 3-1/4", 4 cubic yard (3.1 cubic meter) bucket

16шт.

7

129-572

NUT,3/4"-10, G8

4 cubic yard (3.1 cubic meter) bucket 3/4"-10, G8

16шт.

8

L116323

PLATE

- skid, 4 cubic yard (3.1 cubic meter) bucket

2шт.

9

L116634

PLATE

- skid, outer, 4 cubic yard (3.1 cubic meter) bucket

2шт.

10

L72799

PLATE

- wear, 4 cubic yard (3.1 cubic meter) bucket

4шт.

11

D51545

BUSHING,63.75mm ID x 76.2mm OD x 38.1mm L

- bucket, 4 cubic yard (3.1 cubic meter)

8шт.
