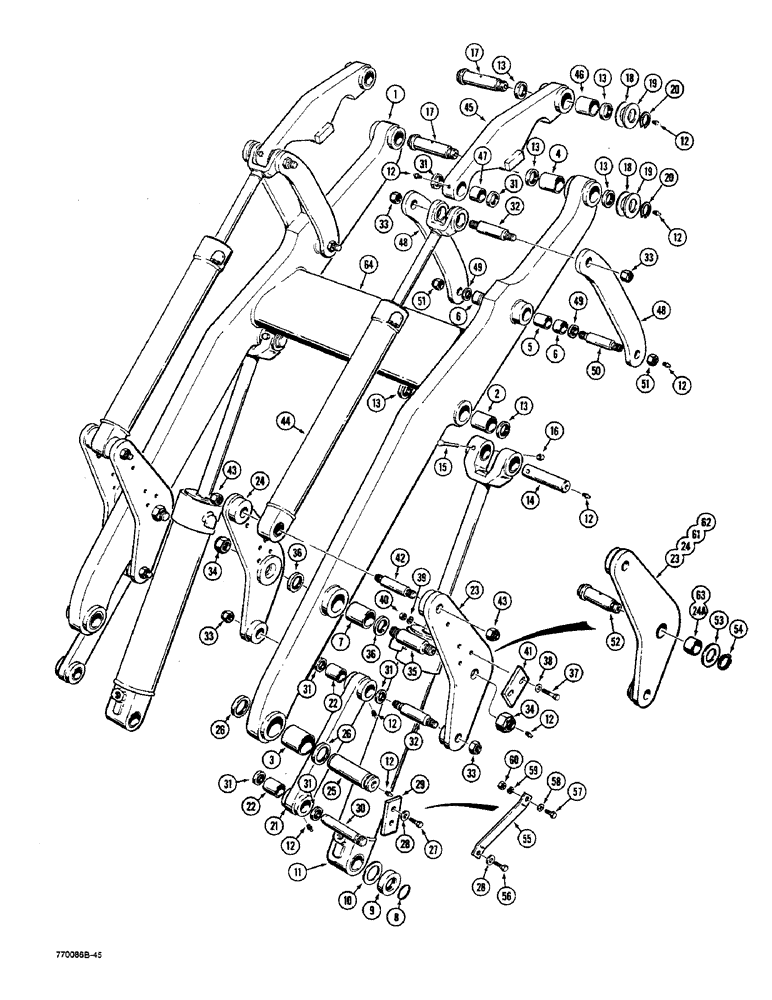

Запчасти Case W36 (9-464) - LOADER LIFT FRAME AND LINKAGE, THREADED OR GROOVED BELLCRANK PIVOT PINS (09) - CHASSIS

1

L111242

ARM, LIFT

FRAME ASSEMBLY - loader lift, see notes on Figs. 9-468 and 9-470 for replacement, Includes: Ref. 2 - 7

1шт.

2

L105214

BUSHING,63.7mm ID x 76.33mm OD x 71.1mm L

- 2-1/2" (64 mm) ID

2шт.

3

L70757

BUSHING

- 3-1/2" (89 mm) ID

2шт.

4

L105211

BUSHING,63.7mm ID x 76.33mm OD x 76mm L

- 2-1/2" (64 mm) ID

2шт.

5

L73513

SPACER

- bushing

2шт.

6

L72998

BUSHING,51.13mm ID x 63.63mm OD x 31.75mm L

- 2" (51 mm) ID

4шт.

7

L73525

BUSHING

- 3" (76 mm) ID x 4" (102 mm) long

2шт.

8

L73091

RING

SNAP RING - cylinder mounting

2шт.

9

L73170

WASHER

RETAINER - shim

2шт.

10

L76425

WASHER

SHIM - .112" (2.8 mm) thick

1шт.

11

REF

INSTRUCTION

CYLINDER - lift, see Fig. 8-410 for proper cylinder

2шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

20шт.

13

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

SEAL - pin

12шт.

14

L109584

PIN,63.5mm OD x 209.55mm L

- lift cylinder

2шт.

15

26-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 8

- hex head, 5/8" - 11 NC x 5-1/2"

2шт.

16

131-1105

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

17

L124491

PIN,63.5mm OD x 230.38mm L

- bucket

4шт.

18

L77511

SHIM,64.26mm ID x 127mm OD x 1.8mm Thk

- 5/64" (2 mm) thick

1шт.

19

L105802

WASHER

- hardened, replaces A31261

4шт.

20

F40807

SNAP RING,#225, Ext

Ring, Snap, , pin #225, Ext

4шт.

21

L77071

LINK

- leveling, Includes: Ref. 22

2шт.

22

L72200

BUSHING

- 2-1/4" (57 mm) ID

2шт.

23

L79413

LINK

BELLCRANK - right-hand, Serial Range: -9131129

1шт.

23

L100007

LINK

BELLCRANK - right-hand, order L103616 bellcrank and L103620 pin, see below, Start Serial: 9131129

1шт.

24

L79414

LINK

BELLCRANK - left-hand, Includes: Ref. 24A, Serial Range: -9131129

1шт.

24

L100008

LINK

BELLCRANK - left-hand, order L103617 bellcrank and L103620 pin, see below, Includes: Ref. 24A, Start Serial: 9131129

1шт.

24a

L78954

BUSHING

- for L79413, L79414, L100007 or L100008 bellcrank

2шт.

25

L72222

PIN

- lift arm

2шт.

26

L70843

WIPER SEAL

SEAL - pin

4шт.

27

26-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8

used without light bracket Hex, 3/4"-10 x 1 1/2", G8

2-4шт.

28

L79179

WASHER

- hardened, used without light bracket

2-4шт.

29

L73509

PLATE

- lock

2шт.

30

L72226

AXLE PIN

PIN - link

2шт.

31

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

- pin

12шт.

32

L72225

PIN

- threaded

4шт.

33

131-53

NUT,1 1/2"-12

NUT - hex, self-locking, 1-1/2" - 12 NF

8шт.

34

129-671

NUT

JAM NUT - special, if used

4шт.

35

L70302

PIN

- threaded, if used

2шт.

36

D95148

WIPER SEAL

SEAL - pin

4шт.

37

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

If used Hex, 1/2"-13 x 2", G5

8шт.

38

R24323

WASHER

- hardened, if used

8шт.

39

92-8

LOCK WASHER,1/2"

", if used 1/2"

8шт.

40

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC, if used

8шт.

41

L77322

PLATE - lock, if used

4шт.

42

L73885

PIN

- threaded

4шт.

43

131-43

LOCK NUT,1 1/2"-12

NUT - hex, self-locking, 1-1/2" - 12 NF

4шт.

44

REF

INSTRUCTION

CYLINDER - bucket tilt, parts list Figs. 8-412 and 8-414

2шт.

45

L77660

LINK

- bucket, Includes: Ref. 46 and 47

2шт.

46

L73527

BUSHING

- 2-1/2" (64 mm) ID

1шт.

47

L72204

BUSHING

- 2-1/4" (57 mm) ID

1шт.

48

L70344

LINK

- guide

4шт.

49

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

- Pin

4шт.

50

L72169

AXLE PIN

PIN - threaded

2шт.

51

131-43

LOCK NUT,1 1/2"-12

NUT - hex, self-locking, 1-1/2" - 6 NC

2шт.

52

L103620

AXLE PIN

PIN - pivot, if used

2шт.

53

L78956

WASHER

- special, if used

2шт.

54

A31227

SNAP RING,#275, Ext

Ring, Snap, , pin #275, Ext

2шт.

55

L79569

SUPPORT

- light bracket, Start Serial: 9131129

2шт.

56

26-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

- hex head, 3/4" - 10 NC x 1-3/4", used with light bracket

2шт.

57

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Used with light bracket Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

58

95-8

WASHER,1/2"

used with light bracket 1/2"

2шт.

59

92-8

LOCK WASHER,1/2"

used with light bracket 1/2"

2шт.

60

25-108

NUT,1/2"-13, G5

- 1/2" - 13 NC, used with light bracket

2шт.

61

L103616

LINK

BELLCRANK - right-hand, uses Ref. 52, L103620 pin

2шт.

62

L103617

LINK

BELLCRANK - left-hand, used Ref. 52, L103620 pin, Includes: Ref. 63

2шт.

63

L78954

BUSHING

- bellcrank, both L103616 and L103617

1шт.

64

L77791

ANGLE

CHANNEL - lift frame spacer, if used

1шт.
