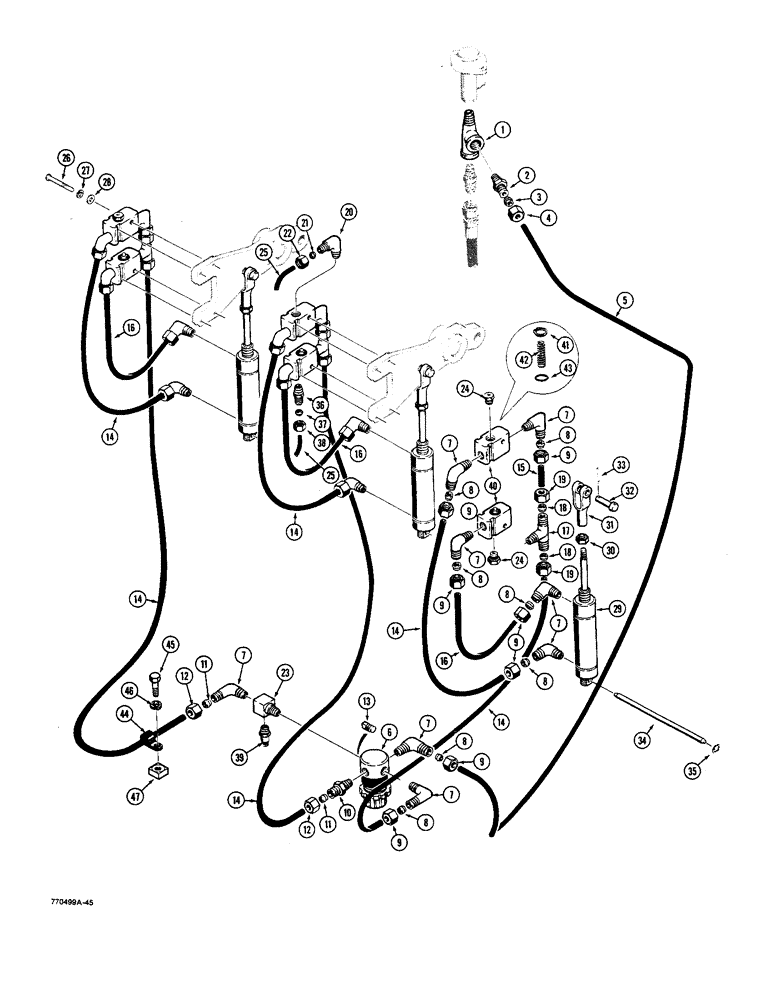

Запчасти Case W36 (8-456) - LOADER CONTROLS, AIR ASSIST SYSTEM (08) - HYDRAULICS

1

221-1691

TEE,Street, 1/4" NPT

- air supply

1шт.

222-2630

FITTING,7/16"-24 x 1/4" NPT, Comp

- compression, straight, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

3

222-2610

SLEEVE

- fitting

1шт.

4

222-2600

NUT

COMPRESSION NUT - fitting

1шт.

5

L78626

TUBE,0.25" OD x 60" L

- 1/4" (6 mm) OD x 60" (1520 mm) long

1шт.

6

L78650

VALVE

- pressure regulator, parts list Fig. 7-366

1шт.

222-2640

ELBOW,90 Degree, 7/16"-24 x 1/8" NPT, Comp

FITTING - compression, 90 degrees, Includes: Ref. 7 - 9

18шт.

7

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

8

222-2610

SLEEVE

- fitting

1шт.

9

222-2600

NUT

COMPRESSION NUT - fitting

1шт.

222-2625

FITTING,7/16"-24 x 1/8" NPT, Comp

- compression, straight, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

11

222-2610

SLEEVE

- fitting

1шт.

12

222-2600

NUT

COMPRESSION NUT - fitting

1шт.

13

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - hex head, 1/8" NPT, 2 spool models only

1шт.

14

L46373

TUBE,0.25" OD x 40" L

- 1/4" (6 mm) OD x 14" (356 mm) long

6шт.

15

L78478

TUBE,0.25" OD x 1.26" L

- 1/4" (6 mm) OD x 1-1/4" (32 mm) long

3шт.

16

L48192

TUBE,0.25" OD

- 1/4" (6 mm) OD x 12-1/4" (311 mm) long

3шт.

222-2675

FITTING - compression, tee, Includes: Ref. 17 - 19 7/16"-14 x 1/8" NPT Br

3шт.

17

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

18

222-2610

SLEEVE

- fitting

2шт.

19

222-2600

NUT

COMPRESSION NUT - fitting

2шт.

222-5115

ELBOW,90 Degree, 5/16"-24 x 1/8" NPTF

FITTING - compression, 90 degrees, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

21

NSS

NOT SOLD SEPARAT

SLEEVE - fitting

1шт.

22

NSS

NOT SOLD SEPARAT

COMPRESSION NUT - fitting

1шт.

23

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

- 1/8" NPT

1шт.

24

REF

INSTRUCTION

FILTER AND MUFFLER - use L80672 kit, if used

4шт.

25

D36945

TUBE

- 1/8" (3 mm) OD x 25" (835 mm) long

1шт.

26

182-52

SCREW,Sl Pan Hd, #6 - 32 x 1 1/4"

MACHINE SCREW - no. 6 - 32 NC x 1-1/4"

12шт.

27

192-105

LOCK WASHER,#6

WASHER - lock, no. 6

12шт.

28

195-7

WASHER,#6

- flat, no. 6

12шт.

29

L78211

CYLINDER

- air

3шт.

30

25-155

JAM NUT,Jam, 5/16"-24, G5

JAM NUT - hex, 5/16" - 18 NC

3шт.

31

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - rod

3шт.

32

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

3шт.

33

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

3шт.

34

L78358

ROD

- cylinder

1шт.

35

S67607

SNAP RING,#25, Ext

Ring, Snap, , rod #25, Ext

2шт.

222-5104

FITTING,5/16"-24 x 1/8" NPT

- compression, straight, Includes: Ref. 36 - 38

1шт.

36

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

37

NSS

NOT SOLD SEPARAT

SLEEVE - fitting

1шт.

38

NSS

NOT SOLD SEPARAT

COMPRESSION NUT - fitting

1шт.

39

L41244

VALVE

- pressure check

1шт.

40

L78633

IGNITION SWITCH

VALVE - air, Includes: Ref. 41 - 43

6шт.

D78344

SEAL PACKAGE

KIT - repair, Includes: Ref. 41 - 43

1шт.

41

NSS

NOT SOLD SEPARAT

SNAP RING - spring

1шт.

42

NSS

NOT SOLD SEPARAT

SPRING - air valve

1шт.

43

NSS

NOT SOLD SEPARAT

O-RING - air valve

3шт.

44

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- tube

2шт.

45

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

46

92-6

LOCK WASHER,3/8"

2шт.

47

25-286

NUT,Sq, 3/8"-16, G2, Hvy

- square, 3/8" - 16 NC

2шт.
