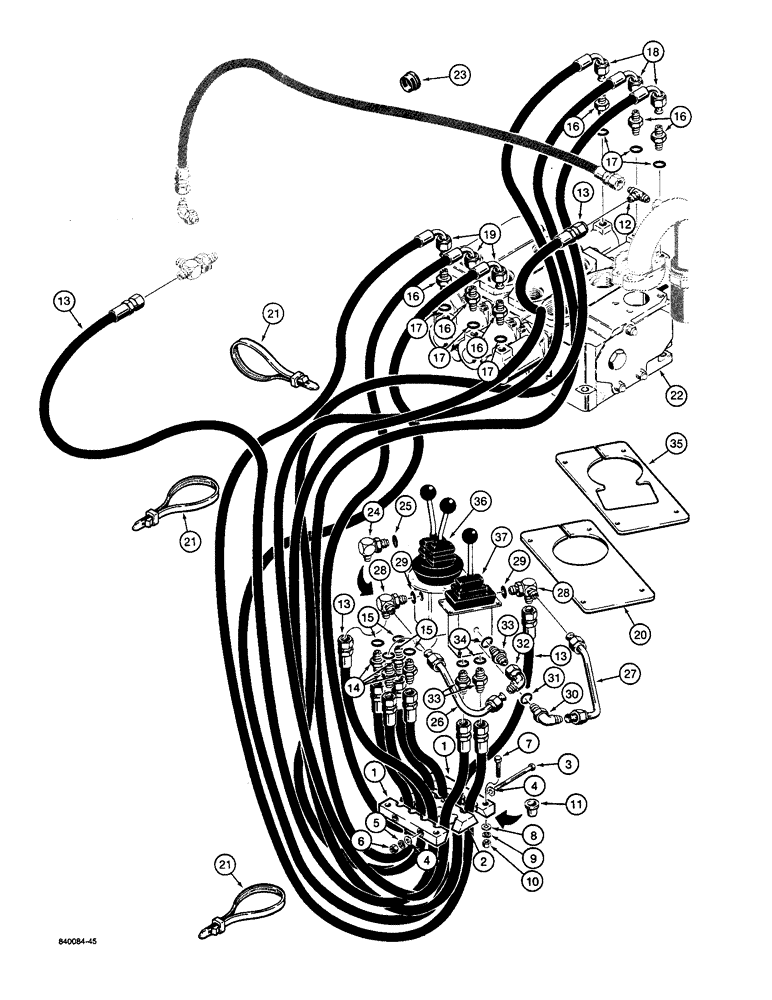

Запчасти Case W36 (8-444) - REMOTE LOADER CONTROL CIRCUIT, CONTROL VALVE, TO REMOTE VALVES (08) - HYDRAULICS

1

L104508

CLAMP

SEAL SUPPORT - hose, half

2шт.

2

L104309

CLAMP

SEAL SUPPORT - hose, full

1шт.

3

113-49

BOLT,Hex, 1/4" - 20 x 4", Gr 5

- hex head, 1/4" - 20 NC x 4"

2шт.

4

95-4

WASHER,1/4"

- flat, 1/4"

4шт.

5

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

25-104

NUT,1/4"-20, G5

2шт.

7

13-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"-20 x 1 1/2", G5

4шт.

8

95-4

WASHER,1/4"

- flat, 1/4"

4шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

10

25-104

NUT,1/4"-20, G5

4шт.

11

353-15

PLUG,Cap, .824" OD

- seal support

2шт.

12

218-625

TEE,3/4"-16, 37 Degree x 1/2"-14, NPTF Run

- hose to tube, used with internal hydraulic filter

1шт.

13

L102630

HOSE,0.38" ID x 77.00"

Reducer Valve to Control and Return 0.38" ID x 77.00"

1-2шт.

14

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, male, Incl. Ref. 15

4шт.

16

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, male, Incl. Ref. 17

6шт.

18

L101989

HOSE

- supply, "B" Ports from control valve, 76" (1930 mm) long

2-3шт.

19

L101988

PIPE

HOSE - supply, "A" Ports from control valve, 57" (1448 mm) long

2-3шт.

20

L104307

COVER

- used with dual lever

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

22

REF

INSTRUCTION

VALVE - control, used with remote hydraulics, parts list Fig. 8-426

1шт.

23

353-414

PLUG,Dome, 1.375" Hole, Nylon

front chassis, 2 spool only Dome, 1.375" hole, Nylon

2шт.

24

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, 2 spool only, Includes: Ref. 25

2шт.

26

L101868

TUBE,0.375" OD

- supply, 3 spool valve

1шт.

27

L101870

TUBE,0.375" OD

- return, 3 spool valve

1шт.

28

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

ELBOW, 90, , Special, Incl. Ref. 29 9/16"-18 x 9/16"-18 ORB

2шт.

30

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degrees, adjustable, return tube, Includes: Ref. 31

1шт.

32

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree swivel

1шт.

33

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, Incl. Ref. 34

3шт.

35

L104306

COVER

- used with dual lever and single lever

1шт.

36

REF

INSTRUCTION

VALVE - remote, dual lever, see Fig. 8-450

1шт.

37

REF

INSTRUCTION

VALVE - remote, single lever, see Fig. 8-448

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Adapter

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Adapter

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Fitting

1шт.

29

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Tee

1шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Elbow

1шт.

34

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Connector

1шт.
