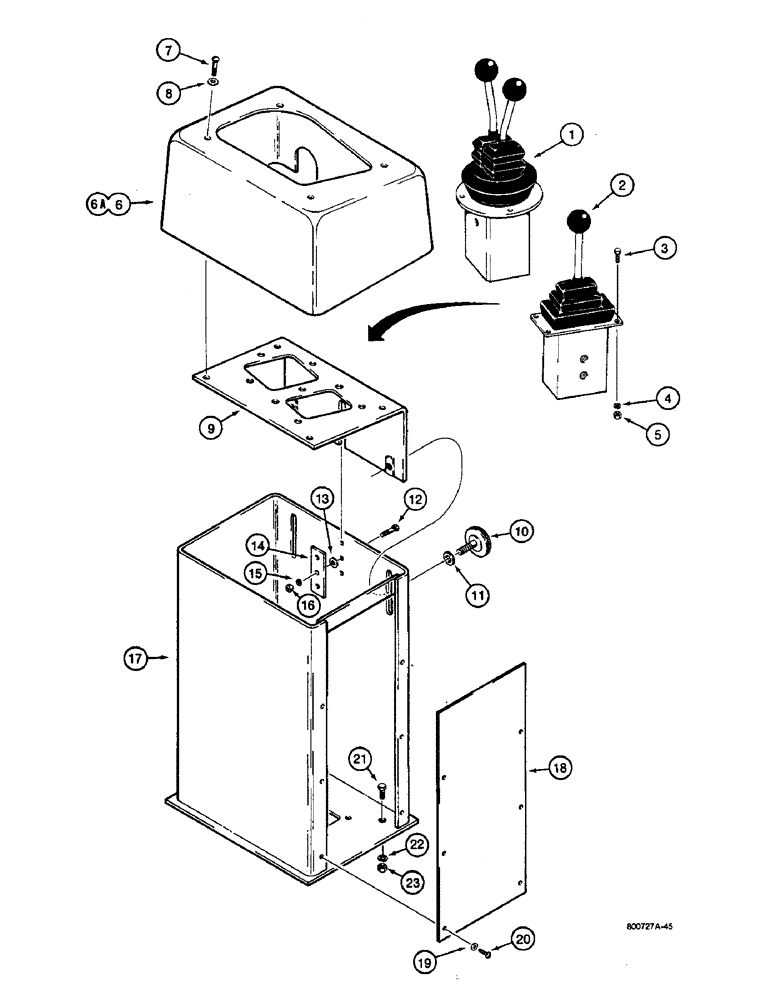

Запчасти Case W36 (8-442) - REMOTE LOADER CONTROL VALVES, AND CONTROL TOWER, WITH REMOTE HYDRAULICS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - dual lever, parts list Fig. 8-450

1шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - single lever, parts list Fig. 8-448

1шт.

3

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex head, 1/4" - 20 NC x 3/4"

8шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

5

25-104

NUT,1/4"-20, G5

8шт.

6

L104097

CAP

- control tower, black, if used

1шт.

6a

L111752

CAP

- control tower, brown, if used

1шт.

7

179-163

SCREW,Cross Oval Hd, #10 - 24 x 1"

- no. 10 - 24 NC x 1"

4шт.

8

F43576

WASHER

- special

4шт.

9

L104100

SUPPORT

BRACKET - hydraulic control tower

1шт.

10

L104103

KNOB

- console

2шт.

11

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

12

111-139

CARRIAGE BOLT,Short NK, 1/4"-20 x 1", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 1", G2

3шт.

13

L104101

SPACER

- bracket

3шт.

14

L104102

COVER PLATE

PLATE - bracket

1шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

16

25-104

NUT,1/4"-20, G5

3шт.

17

L104108

STEEL PLATE

TOWER - control console

1шт.

18

L104104

COVER

- console, outside

1шт.

19

F43576

WASHER

- special

6шт.

20

187-1921

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - self-tapping, no. 10 - 16 NC x 3/4"

6шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.
