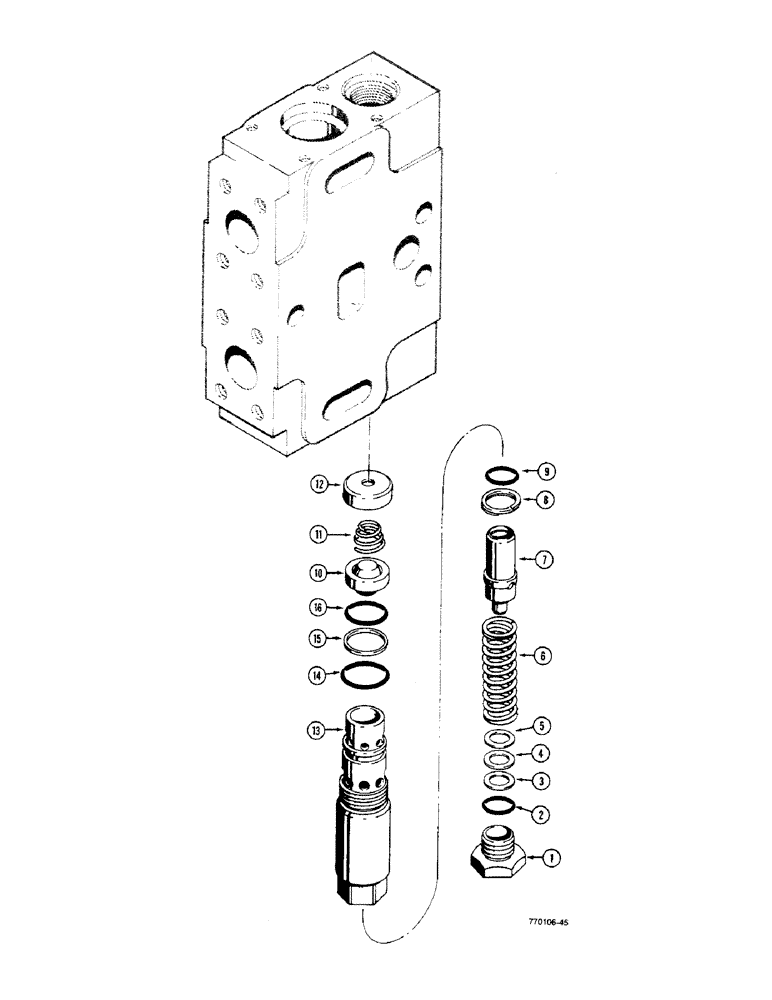

Запчасти Case W36 (8-436) - RELIEF VALVES (08) - HYDRAULICS

D76991

VALVE

CIRCUIT RELIEF VALVE - control valve

1шт.

D59129

VALVE

CIRCUIT RELIEF VALVE - control valve

1шт.

D76993

LOCK VALVE

CIRCUIT RELIEF VALVE - control valve, Includes: Ref. 1 - 16

1шт.

1

L32988

CAP

- relief valve

1шт.

2

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- cap

1шт.

3

L48109

SHIM

- .0149" (.378 mm)

1шт.

4

L48112

SHIM

- .0156" (.396 mm)

1шт.

5

L48111

SHIM

- .093" (2.36 mm)

1шт.

6

L33239

SPRING

- L76993 and D59129 valves

1шт.

6

L33238

SPRING

- L76991 valve

1шт.

7

L32987

SEAT

- relief valve

1шт.

8

L33237

RING

BACKUP RING - seat

1шт.

9

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- seat seal

1шт.

10

D80526

BALL

CHECK POPPET - relief valve

1шт.

11

D80527

SPRING

- check

1шт.

12

L33442

SEAT

RETAINER - cap

1шт.

13

L32986

BODY

- relief valve

1шт.

14

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- large

1шт.

15

L32619

RING

BACKUP RING - small o-ring

1шт.

16

L32993

O-RING,40756" ID x 40756" OD x 1"

- small

1шт.
