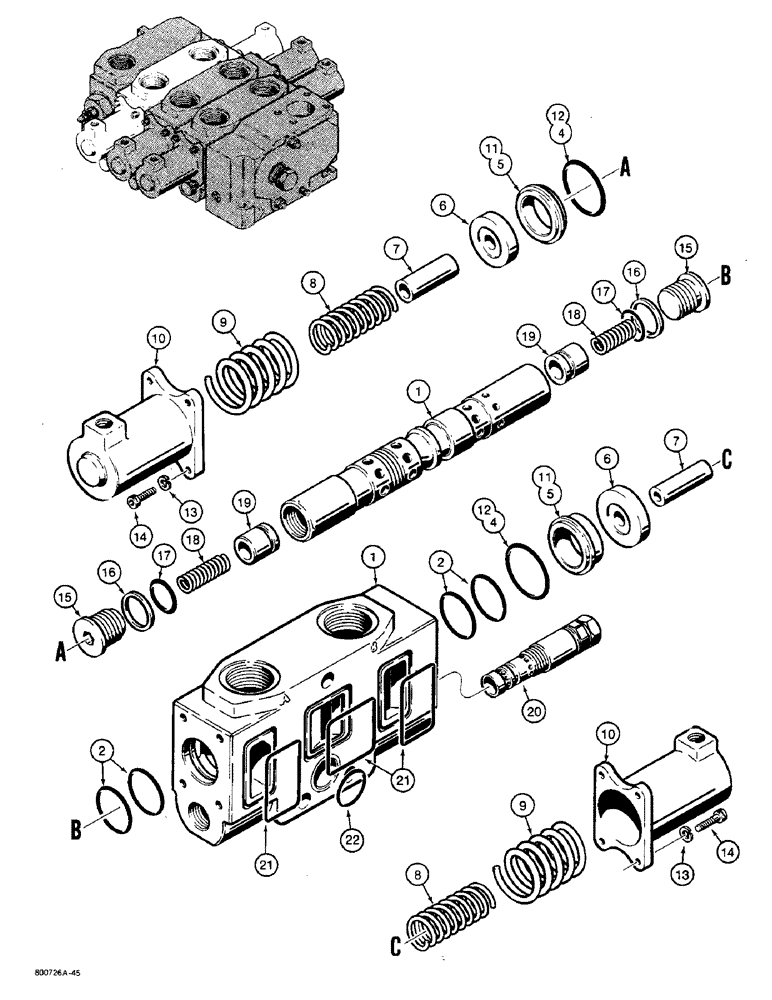

Запчасти Case W36 (8-434) - L104152 CONTROL VALVE, L101990 CLAM SECTION (08) - HYDRAULICS

L101990

VALVE

CLAM SECTION - control valve, Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

SPOOL AND HOUSING - valve section

1шт.

2

D77421

OIL SEAL

BACKUP RING - spool seal

4шт.

3

RESERVED

1шт.

4

S5730

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

- retainer, used with Ref. 5, L101221 seal retainer

2шт.

5

L101221

RETAINER

- seal, with 2.067" (52.5 mm) diameter o-ring groove, no longer available, order Ref. 11, L105923 seal retainer and Ref. 12, L105925 o-ring

2шт.

6

L104951

LARGE PLATE

PLATE - spring retainer

2шт.

7

L102534

SLEEVE

- spacer

2шт.

8

L101986

SPRING

- remote, 2-5/8" long

2шт.

9

L101985

SPRING

- remote, 2-7/16" long

2шт.

10

L104584

COVER

CAP - end

2шт.

11

L105923

RETAINER

- seal, with 2.001" (50.83 mm) diameter o-ring groove, uses Ref. 12, L105925 o-ring

2шт.

12

L105925

O-RING,0.139" Thk x 1.984" ID, -226, Cl 6, 90 Duro

- seal, used with Ref. 11, L105923 seal retainer

2шт.

13

192-404

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

14

61-516

HEX SOC SCREW,5/16"-18 x 1"

SCREW - hex socket head, 5/16" - 18 NC x 1"

8шт.

15

L101980

PLUG

- special

2шт.

16

D77420

RING

BACKUP RING - o-ring

2шт.

17

D54806

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

- plug

2шт.

18

D77402

SPRING

- check, poppet

2шт.

19

D77401

VALVE POPPET

POPPET - single groove

2шт.

20

D59129

VALVE

- relief, parts list Fig. 8-436

2шт.

21

D77399

SEAL,63.17mm ID x 68.26mm OD x 2.38mm Thk

- large

3шт.

22

D77400

SEAL,36.17mm ID x 41.27mm OD x 2.38mm Thk

- small

1шт.
