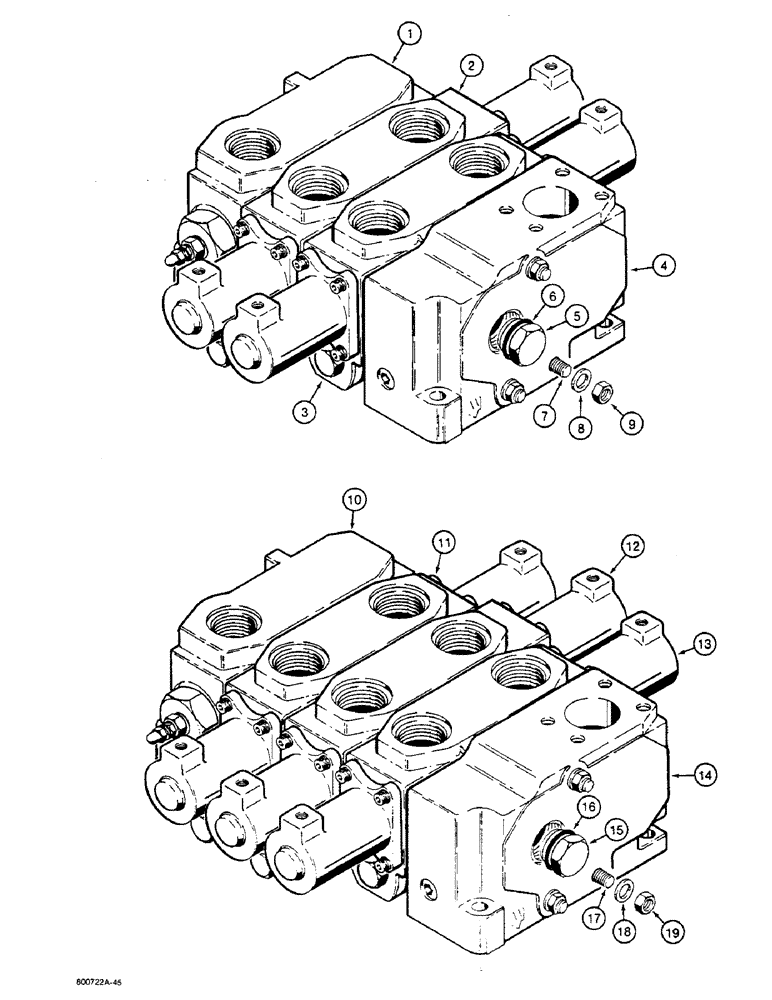

Запчасти Case W36 (8-426) - LOADER CONTROL VALVES,WITH REMOTE HYDRAULIC,L104151 TWO SPOOL LOADER CONTROL VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
L104151
VALVE
CONTROL VALVE - two spool, Includes: Ref. 1 - 9
1шт.
1
D76983
HYDRAULIC VALVE
INLET SECTION - parts list Fig. 8-428
1шт.
2
N6844
SPOOL
BUCKET SECTION - parts list Fig. 8-432
1шт.
3
N6845
ELEMENT
LIFT SECTION - parts list Fig. 8-430
1шт.
4
D76986
BLOCK
OUTLET SECTION - control valve, Includes: Ref. 5 and 6
1шт.
5
218-5158
PLUG,Hex Hd, 1 1/16"-12 ORB
Includes: Ref. 6 Hex Hd, 1 1/16"-12 ORB
1шт.
6
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk, Plug
1шт.
7
D76988
STUD
- two spool valve
3шт.
8
524443R1
WASHER,0.66" ID x 1.25" OD x 0.19" Thk
- hardened
6шт.
9
86625068
NUT,5/8"-11, G8
- hex, self-locking, 5/8" - 11 NC
6шт.
L104152
VALVE
CONTROL VALVE - three spool, L104152 loader
1шт.
10
D76983
HYDRAULIC VALVE
INLET SECTION - parts list Fig. 8-428, L104152 three spool loader control valve
1шт.
11
L101990
VALVE
CLAM SECTION - parts list Fig. 8-434, L104152 three spool loader control valve
1шт.
12
N6844
SPOOL
BUCKET SECTION - parts list Fig. 8-432, L104152 three spool loader control valve
1шт.
13
N6845
ELEMENT
LIFT SECTION - parts list Fig. 8-430, L104152 three spool loader control valve
1шт.
14
D76986
BLOCK
OUTLET SECTION - control valve, L104152 three spool loader, Includes: Ref. 15 and 16
1шт.
15
218-5158
PLUG,Hex Hd, 1 1/16"-12 ORB
L104152 three spool loader control valve, Includes: Ref. 16 Hex Hd, 1 1/16"-12 ORB
1шт.
16
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk, Plug, L104152 three spool loader control valve
1шт.
17
D76989
STUD
- three spool valve, L104152 loader control
3шт.
18
524443R1
WASHER,0.66" ID x 1.25" OD x 0.19" Thk
- hardened, L104152 three spool loader control valve
6шт.
19
86625068
NUT,5/8"-11, G8
- hex, self-locking, 5/8" - 11 NC, L104152 three spool loader control valve
6шт.
L301357
VALVE
4-spool, used when unit has a Harricana Grapple, L104152 three spool loader control valve
1шт.
