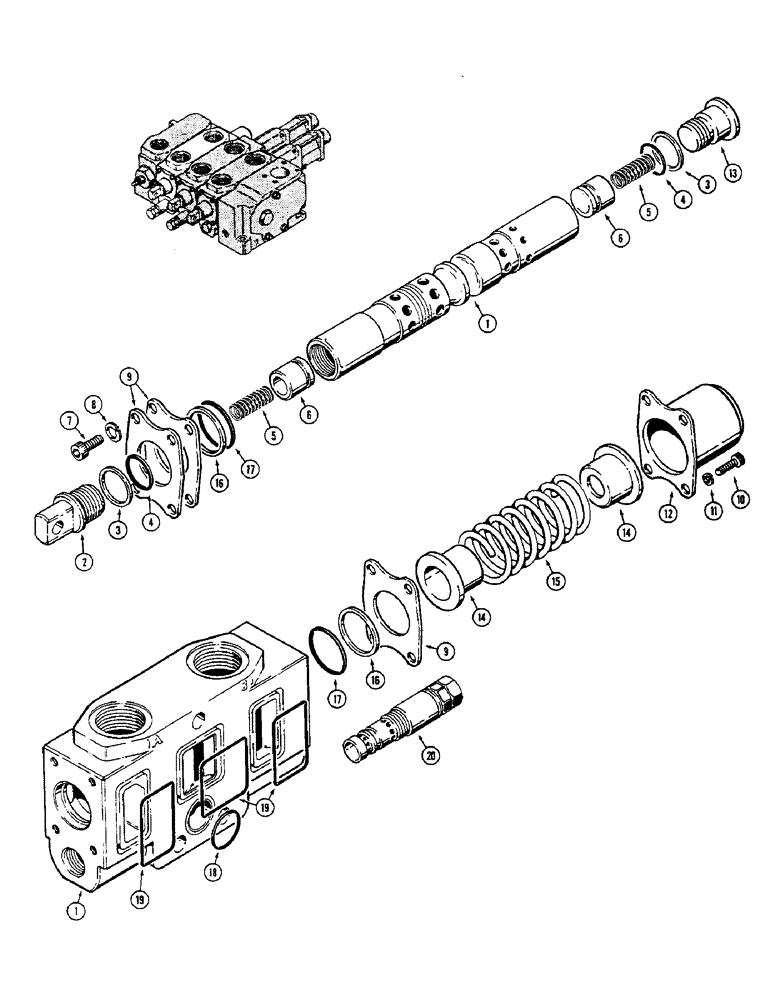

Запчасти Case W36 (8-424) - L70875 AND L70876 LOADER CONTROL VALVE, D76987 CLAM SECTION (08) - HYDRAULICS

D76987

VALVE

CLAM SECTION - control valve, Includes: Ref. 1 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

SPOOL AND HOUSING - valve section

1шт.

2

D77403

PLUNGER

EYE - spool

1шт.

3

D77420

RING

BACKUP RING - o-ring

2шт.

4

D54806

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

- spool seal

2шт.

5

D77402

SPRING

- check

2шт.

6

D77401

VALVE POPPET

POPPET - check

2шт.

7

61-510

HEX SOC SCREW,5/16"-18 x 5/8"

SCREW - hex socket head, 5/16" - 18 NC x 5/8"

4шт.

8

192-404

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9

D77405

PLATE

- seal retainer

3шт.

10

61-520

HEX SOC SCREW,5/16"-18 x 1 1/4"

SCREW - hex socket head, 5/16" - 18 NC x 1-1/4"

4шт.

11

192-404

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

12

D77530

COVER

CAP - spool

1шт.

13

D77527

BOLT

- special

1шт.

14

D77528

GUIDE

- spring

2шт.

15

N6585

CENTERING SPRING - spool

1шт.

16

D77421

OIL SEAL

BACKUP RING - seal

2шт.

17

D27878

O-RING,1.609" ID x 1.887" OD

- spool seal

2шт.

18

D77400

SEAL,36.17mm ID x 41.27mm OD x 2.38mm Thk

- small

1шт.

19

D77399

SEAL,63.17mm ID x 68.26mm OD x 2.38mm Thk

- large

3шт.

20

D59129

VALVE

- relief, parts list Fig. 8-436

2шт.
