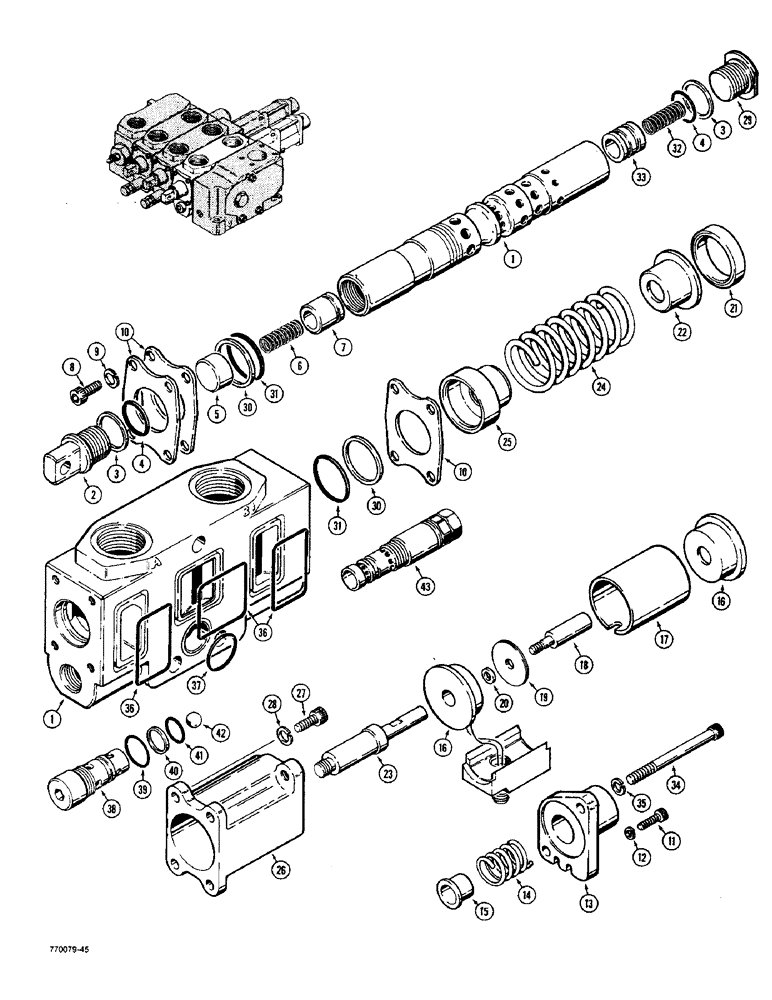

Запчасти Case W36 (8-420) - L70875 AND L70876 LOADER CONTROL VALVE, D76985 LIFT SECTION (08) - HYDRAULICS

D76985

ELEMENT

LIFT SECTION - control valve, Includes: Ref. 1 - 43

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - valve section

1шт.

2

D77403

PLUNGER

EYE - spool

1шт.

3

D77420

RING

BACKUP RING - o-ring

2шт.

4

D54806

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

- spool seal

2шт.

5

D77423

WASHER

SPACER - spring

1шт.

6

D77402

SPRING

- check

1шт.

7

D77401

VALVE POPPET

POPPET - check

1шт.

8

61-510

HEX SOC SCREW,5/16"-18 x 5/8"

SCREW - hex socket head, 5/16" - 18 NF x 5/8"

4шт.

9

192-404

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

D77405

PLATE

- seal retainer

3шт.

11

61-416

HEX SOC SCREW,1/4"-20 x 1"

SCREW - hex socket head, 1/4" - 20 NC x 1"

2шт.

12

95-4

WASHER,1/4"

- flat, 1/4"

2шт.

13

D77419

CAP

- magnet assembly

1шт.

14

D77412

SPRING

- detent

1шт.

15

D77411

GUIDE

- spring

1шт.

16

D77428

MAGNETO

MAGNET ASSEMBLY - height control

1шт.

17

D77418

TUBE

- magnet assembly

1шт.

18

D77410

SHAFT

BOLT - special

1шт.

19

D77413

PLATE

WASHER - detent

1шт.

20

D77414

SPACER

- washer

1шт.

21

D77415

SPACER

- centering spring

1шт.

22

D77407

GUIDE

- spring

1шт.

23

D77409

BOLT

- special

1шт.

24

D77408

SPRING

CENTERING SPRING - spool

1шт.

25

D77406

GUIDE

- spring

1шт.

26

D77422

CAP

COVER - valve spool

1шт.

27

61-520

HEX SOC SCREW,5/16"-18 x 1 1/4"

SCREW - hex socket head, 5/16" - 18 NC x 1-1/4"

4шт.

28

192-404

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

29

D77426

SCREW,1/4" - 16 x 13/16"

BOLT - special

1шт.

30

D77421

OIL SEAL

BACKUP RING - o-ring

2шт.

31

D27878

O-RING,1.609" ID x 1.887" OD

- spool seal

2шт.

32

D77425

SPRING

- check

1шт.

33

D77242

PISTON

POPPET - check

1шт.

34

61-668

HEX SOC SCREW,3/8"-16 x 4 1/4"

SCREW - hex socket head, 3/8" - 16 NC x 4-1/4"

2шт.

35

192-401

LOCK WASHER,3/8"

3/8"

2шт.

36

D77399

SEAL,63.17mm ID x 68.26mm OD x 2.38mm Thk

- large

3шт.

37

D77400

SEAL,36.17mm ID x 41.27mm OD x 2.38mm Thk

- small

1шт.

L33219

VALVE, CHECK

CHECK VALVE - lift section, Includes: Ref. 38 - 42

1шт.

38

NSS

NOT SOLD SEPARAT

BODY - check valve

1шт.

39

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- large

1шт.

40

L32619

RING

BACKUP RING - o-ring

1шт.

41

L32993

O-RING,40756" ID x 40756" OD x 1"

- small

1шт.

42

211-16

BALL

- steel, 11/16" diameter

1шт.

43

D76993

LOCK VALVE

RELIEF VALVE - parts list Fig. 8-436

1шт.
