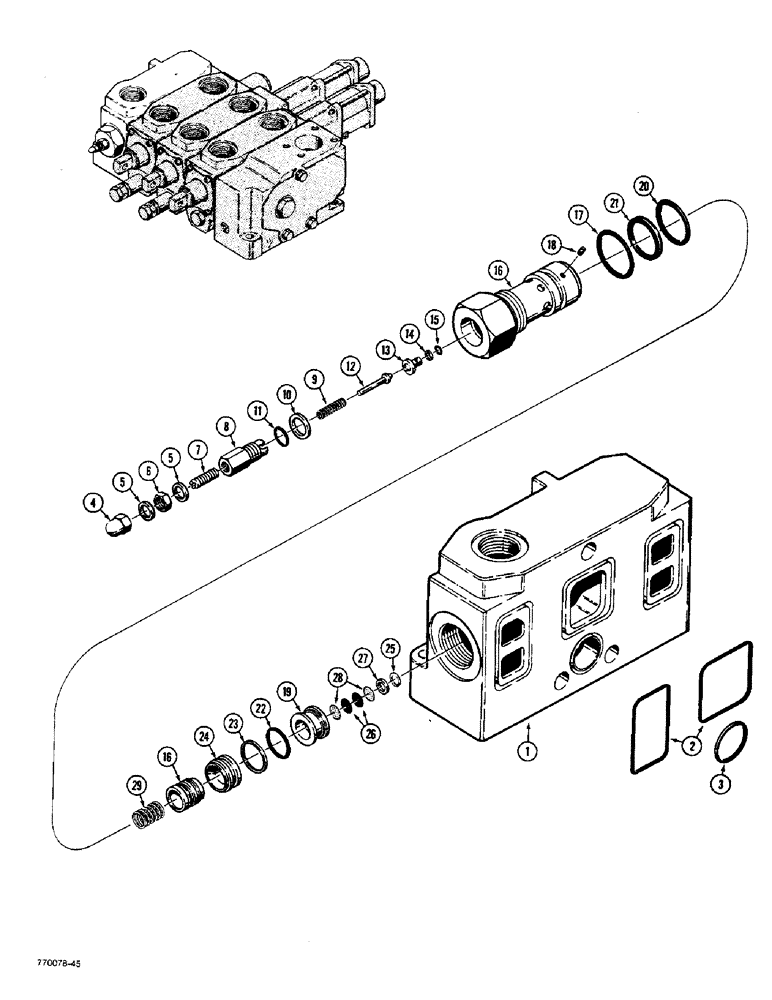

Запчасти Case W36 (8-418) - L70875 AND L70876 LOADER CONTROL VALVES, D76983 INLET SECTION (08) - HYDRAULICS

D76983

HYDRAULIC VALVE

INLET SECTION - control valve, Includes: Ref. 1 - 29

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve section

1шт.

2

D77399

SEAL,63.17mm ID x 68.26mm OD x 2.38mm Thk

- large

3шт.

3

D77400

SEAL,36.17mm ID x 41.27mm OD x 2.38mm Thk

- small

1шт.

D76990

LOCK VALVE

RELIEF VALVE - inlet section, Includes: Ref. 4 - 29

1шт.

4

129-526

CROWN NUT,Low, 3/8" - 24

DOME NUT - 3/8" - 14 NF

1шт.

5

23150

WASHER

GASKET - copper

2шт.

6

125-156

NUT - hex, lock, 3/8" - 24 NF

1шт.

7

D38814

ADJUSTMENT SCREW,3/8" - 24

SCREW - adjusting

1шт.

8

D77546

RETAINER

- spring

1шт.

9

D77548

SPRING

- small

1шт.

10

D31450

WASHER

GASKET - copper

1шт.

11

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- retainer

1шт.

12

D77547

SEAT

- poppet

1шт.

13

D77544

VALVE POPPET

POPPET - relief valve

1шт.

14

L35305

RING

BACKUP RING - o-ring

1шт.

15

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, poppet

1шт.

16

D76990

LOCK VALVE

HOUSING AND POPPET - relief valve

1шт.

17

T52486

O-RING

- housing

1шт.

18

178-880

SCREW,Hdls Hex Skt, 1/4" - 20 x 1/4", Half Dog Pt

- Allen head, 1/4" - 20 NC x 1/4"

2шт.

19

D77539

RETAINER

- seat

1шт.

20

A41184

O-RING,1.234" ID x 1.512" OD x 0.139"

- relief valve

1шт.

21

T22277

OIL SEAL

BACKUP RING - o-ring

1шт.

22

R30989

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

- seat

1шт.

23

D77537

BACK-UP RING

BACKUP RING - o-ring

1шт.

24

D77536

SEAT

- poppet

1шт.

25

D77535

RING, SNAP

SNAP RING - screen

1шт.

26

D77533

SCREEN

- 325 mesh

2шт.

27

D77534

SPACER

- screen

1шт.

28

D77532

SCREEN

- 30 mesh

2шт.

29

D54858

VALVE SPRING

SPRING - large

1шт.
