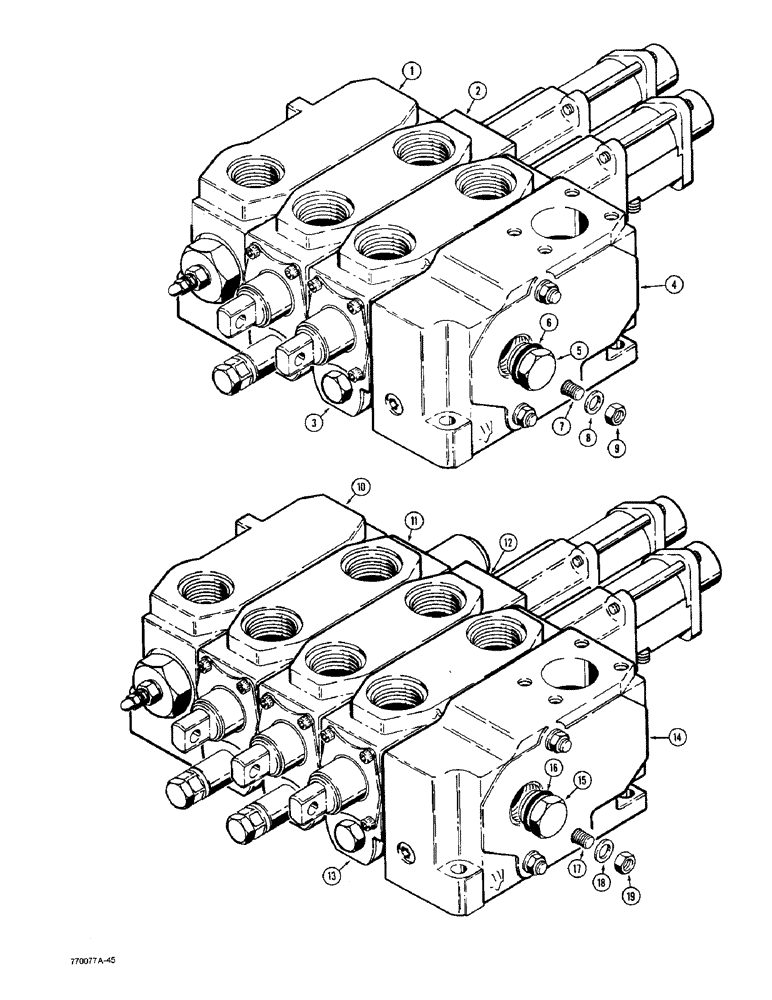

Запчасти Case W36 (8-416) - LOADER CONTRL VALVES,WITHOUT REMOTE HYDRAULICS,L70875 TWO SPOOL LOADER CONTROL VALVE (08) - HYDRAULICS

L70875

VALVE

CONTROL VALVE - two spool, Includes: Ref. 1 - 9

1шт.

1

D76983

HYDRAULIC VALVE

INLET SECTION - parts list Fig. 8-418

1шт.

2

D76984

HYDRAULIC VALVE

BUCKET SECTION - parts list Fig. 8-422

1шт.

3

D76985

ELEMENT

LIFT SECTION - parts list Fig. 8-420

1шт.

4

D76986

BLOCK

OUTLET SECTION - control valve, Includes: Ref. 5 and 6

1шт.

5

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes: Ref. 6 Hex Hd, 1 1/16"-12 ORB

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Plug

1шт.

7

D76988

STUD

- two spool valve

3шт.

8

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

- hardened

6шт.

9

86625068

NUT,5/8"-11, G8

- hex, self-locking, 5/8" - 11 NC

6шт.

L70876

VALVE

CONTRL VALVE - three spool, L70876 loader, Includes: Ref. 10 - 19

1шт.

10

D76983

HYDRAULIC VALVE

INLET SECTION - parts list Fig. 8-418, L70876 three spool loader control

1шт.

11

D76987

VALVE

CLAMP SECTION - parts list Fig. 8-424, L70876 three spool loader control valve

1шт.

12

D76984

HYDRAULIC VALVE

BUCKET SECTION - parts list Fig. 8-422, L70876 three spool loader control valve

1шт.

13

D76985

ELEMENT

LIFT SECTION - parts list Fig. 8-420, L70876 three spool loader control valve

1шт.

14

D76986

BLOCK

OUTLET SECTION - control valve, L70876 three spool loader, Includes: Ref. 15 and 16

1шт.

15

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

L70876 three spool loader control valve, Includes: Ref. 16 Hex Hd, 1 1/16"-12 ORB

1шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Plug, L70876 three spool loader control valve

1шт.

17

D76989

STUD

- three spool valve, L70876 loader control

3шт.

18

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

- hardened, L70876 three spool loader control valve

6шт.

19

86625068

NUT,5/8"-11, G8

- hex, self-locking, 5/8" - 11 NC, L70876 three spool loader control valve

6шт.
