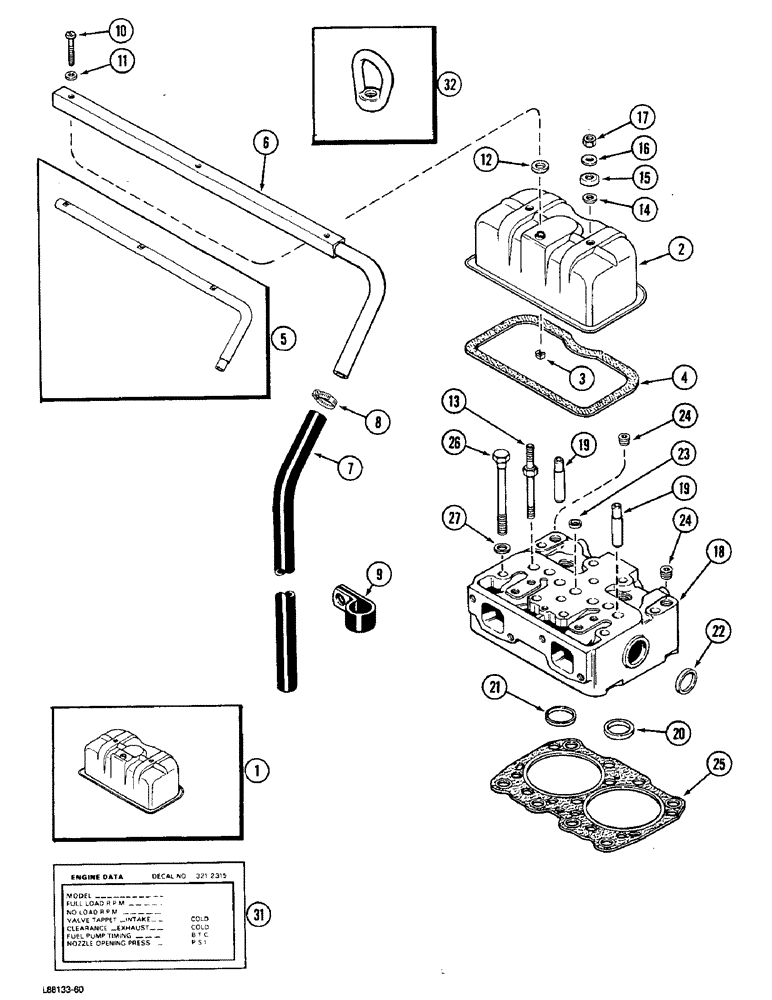

Запчасти Case W36 (2-24) - CYLINDER HEAD AND COVER, 504BDTI ENGINE (02) - ENGINE

1

A58929

COVER

COVER ASSEMBLY - cylinder head (If equipped) (Includes: Ref no. 3)

3шт.

2

A166170

COVER

COVER ASSEMBLY - cylinder head (If equipped), Includes: Ref. 3

3шт.

3

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - cover tube bolt, Tinnerman, 1/4 inch

1шт.

4

REF

INSTRUCTION

GASKET - cylinder head cover (See Fig. 2-40)

3шт.

5

A66640

TUBE

TUBE - breather (If equipped)

1шт.

6

A166120

TUBE

TUBE - breather (If equipped)

1шт.

7

A156416

HOSE,25.4 mm ID x 1016.00 mm, SAE J200F

Breather (Replaces A66132)

1шт.

8

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch

1шт.

9

D34033

CLAMP

CLIP - breather hose, to flywheel housing bolt

1шт.

10

182-587

SCREW,Cross Pan Hd, 1/4"-20 x 2 1/2"

SCREW - tube to cover, pan head, 1/4 x 2-1/2 inch

3шт.

11

A166102

WASHER,6.45mm ID x 12.7mm OD x 0.81mm Thk

GASKET - tube, upper, fiber, 1/4 x 1/2 x 3/4 inch (Replaces A34133)

3шт.

12

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET - tube, lower, 11/16 x 1-1/4 x 1/4 inch

3шт.

13

A67121

STUD

STUD - rocker arm bracket and cover

6шт.

14

A142098

GROMMET

GROMMET - cover stud

6шт.

15

A156097

WASHER,11.94mm ID x 31.22mm OD x 1.32mm Thk

WASHER - cover stud

6шт.

16

195-529

WASHER,7/16", SAE

WASHER - cover nut, 1/2 x 15/16 x 1/16 inch

6шт.

17

129-104

NUT,7/16"-14, G5

NUT, 7/16"-14, G5

6шт.

18

A138261

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder (Casting no. A152437), Includes: Ref. 19 - 23

3шт.

18

AR152265

REMAN-CYLINDER HEAD

Cylinder Head

3шт.

18

AC152265

CORE-CYLINDER HEAD

Return Number

3шт.

19

A57448

GUIDE

GUIDE - intake and exhaust valve (Replaces A41783)

4шт.

20

A66192

INSERT

INSERT - exhaust valve seat

2шт.

21

A66191

INSERT

INSERT - intake valve seat

2шт.

22

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG - cylinder head, ends, cup 1-5/8 inch

2шт.

23

A58620

PLUG,Cup, 3/4", Stainless

PLUG - cylinder head, top, cup, 3/4 inch

3шт.

24

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - cylinder head, top, socket head, 3/8 inch PT

5шт.

25

REF

INSTRUCTION

GASKET - head to block (See Fig. 2-40)

3шт.

26

A76638

BOLT

BOLT - cylinder head to block, hex, 5/8 NC x 6-1/4 inch

30шт.

27

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - flat, 5/8 x 1 x 1/8 inch

30шт.

31

321-3991

DECAL

DECAL - engine data

1шт.

32

A60567

EYE

EYE - engine lifting

2шт.
