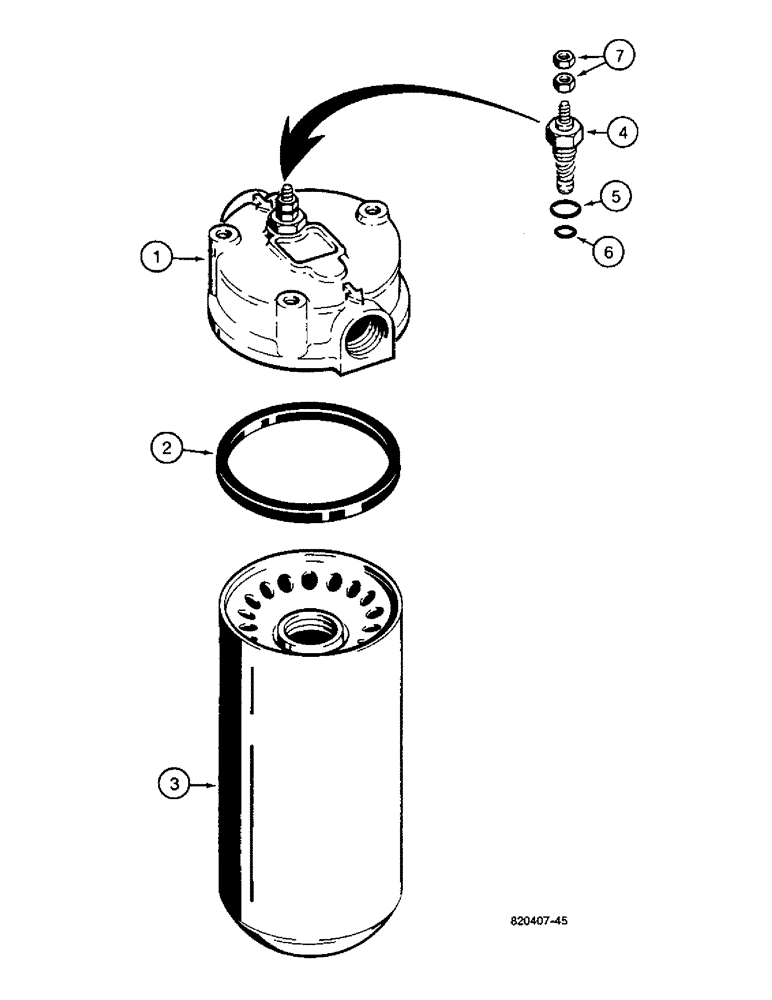

Запчасти Case W36 (8-408) - L114122 HYDRAULIC OIL FILTER (08) - HYDRAULICS

L114122

FILTER

ASSEMBLY - hydraulic oil, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

2

NSS

NOT SOLD SEPARAT

GASKET - filter

1шт.

3

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

N7782

TRANSMITTER

SENDER - filter restriction, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

SWITCH - sender

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Sender

1шт.

6

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- seal, piston

1шт.

7

129-17

NUT,Hex, #10 - 24

NUT - hex, no. 10 -24 NC

2шт.

A45625

HYDRAULIC OIL FILTER

KIT - filter element, includes (2) A139281 gasket and (2) A143382 elements

1шт.
