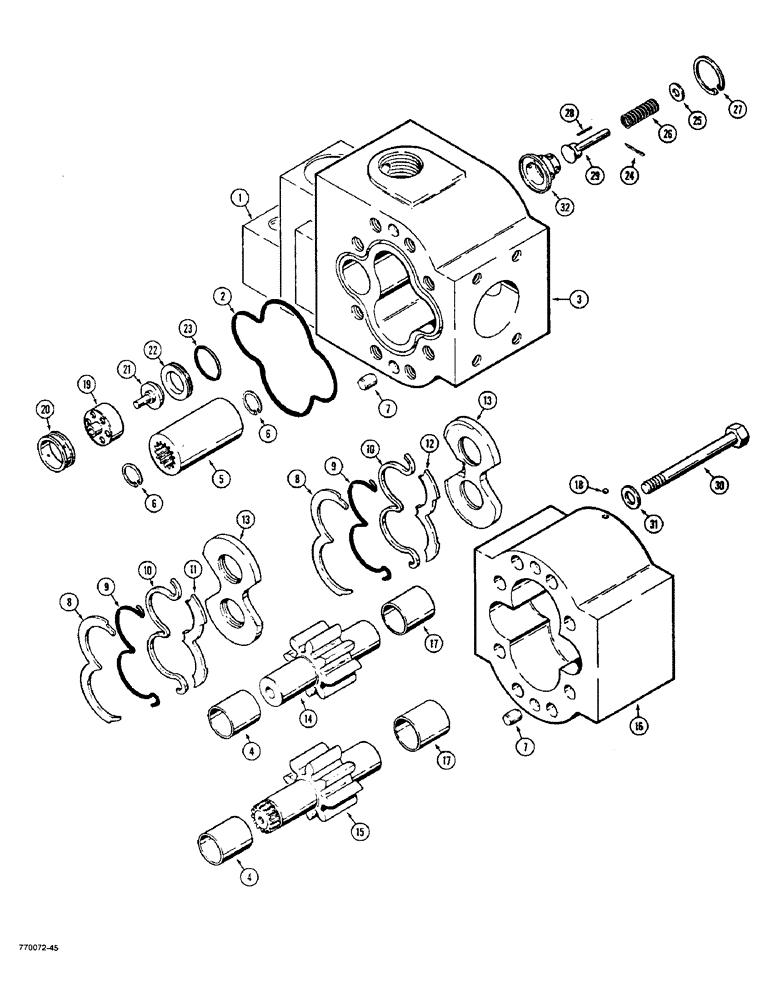

Запчасти Case W36 (8-404) - L72333 EQUIPMENT AND STEERING PUMP, REAR AND INLET SECTIONS (08) - HYDRAULICS

D77433

HYDRAULIC VALVE

REAR AND INLET SECTIONS - includes all parts on Figs. 8-404 and 8-406, Includes: Ref. 1 - 32

1шт.

1

REF

INSTRUCTION

UNLOADING VALVE - parts list Figure 8-404

1шт.

2

D77440

O-RING,0.103" Thk x 4.737" ID, -158, Cl 6, 90 Duro

- seal, also included with D77431 steering section on Fig. 8-402

1шт.

3

D77439

BODY

INLET SECTION - pump, Includes: Ref. 4

1шт.

4

L32840

BUSHING

- inlet section

2шт.

5

S109076

COUPLING

- splined, also included with D77431 section on Fig. 8-402

1шт.

6

A36277

SNAP RING,1.125", Int, #112

coupling 1.125", Int, #112

2шт.

7

D41414

PIN

DOWEL PIN - pump

4шт.

8

D44102

RING

RETAINING RING - seal

2шт.

9

L32845

O-RING

O-RING - seal

2шт.

10

D44099

RING

BACKUP RING - o-ring

2шт.

11

D44101

PLATE

- top

1шт.

12

D44100

PLATE

- bottom

1шт.

13

D42856

PLATE

- pressure

2шт.

14

NSS

NOT SOLD SEPARAT

DRIVEN GEAR - rear section

1шт.

15

NSS

NOT SOLD SEPARAT

DRIVE GEAR - rear section

1шт.

16

NSS

NOT SOLD SEPARAT

REAR SECTION - pump, Includes: Ref. 17

1шт.

17

L32840

BUSHING

- rear section

2шт.

18

211-7

BALL,1/4" Dia

- steel 1/4" Dia

1шт.

19

D77449

RETAINER

- piston

1шт.

20

D77452

SPACER

PLUG - check valve

1шт.

21

D77450

PISTON

- check valve

1шт.

22

D77444

SEAT

- check valve

1шт.

23

A59066

O-RING,1.239" ID x 1.379" OD

- seat

1шт.

24

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

25

D77467

WASHER

- special

1шт.

26

D77466

SPRING

- bypass valve

1шт.

27

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, , orifice 1.50", Int, #150

1шт.

28

138-52

PIN,1/8" x 7/16", Slotted

1шт.

29

D77465

PISTON

- bypass valve

1шт.

30

26-880

BOLT,Hex, 1/2" - 13 x 5", Gr 8

- hex head, 1/2" - 13 NC x 5"

8шт.

31

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- hardened

8шт.

32

D77451

FILTER ASSY

ORIFICE - bypass valve

1шт.
