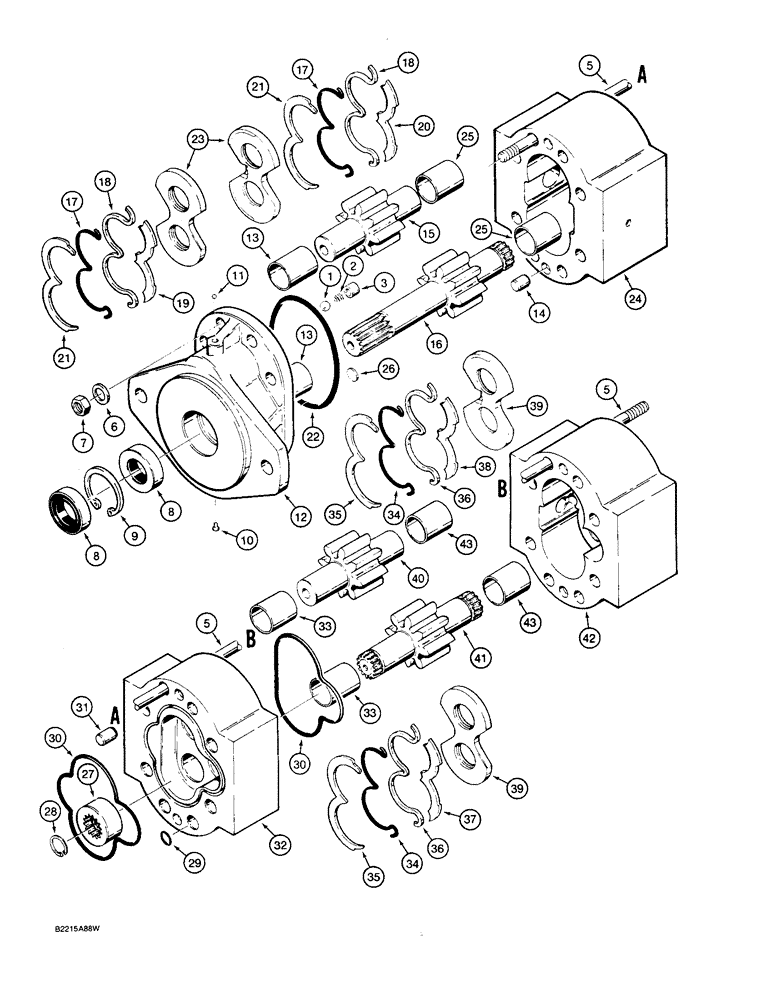

Запчасти Case W36 (8-402) - L72333 EQUIPMENT AND STEERING PUMP, EQUIPMENT AND STEERING SECTIONS (08) - HYDRAULICS

1

211-13

BALL,1/2" Dia

- steel, 3/8" diameter

1шт.

2

D77435

SPRING

- ball check

1шт.

3

S98641

RETAINER

- spring

1шт.

4

RESERVED

1шт.

5

D77434

STUD

- pump assembly

8шт.

6

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- special

8шт.

7

L32829

NUT

- special

8шт.

D77432

VALVE

EQUIPMENT SECTION - pump, also Includes Refs. 8 - 26, 27, 28, and 30

1шт.

8

N6843

SEAL

- shaft

2шт.

Part of Flange Kit P/N N6842

1шт.

9

D41419

RING

- retaining, shaft seal

1шт.

Part of Flange Kit P/N N6842

1шт.

10

S108886

PLUG

- drain

1шт.

11

211-7

BALL,1/4" Dia

- steel 1/4" Dia

1шт.

Part of Flange Kit P/N N6842

1шт.

12

D77469

KIT

FLANGE - mounting, Includes: Ref. 13

1шт.

Part of Flange Kit P/N N6842

1шт.

13

L32840

BUSHING

- flange

2шт.

14

D41414

PIN

DOWEL PIN - pump

4шт.

15

NSS

NOT SOLD SEPARAT

DRIVEN GEAR - equipment section

1шт.

16

NSS

NOT SOLD SEPARAT

DRIVE GEAR - equipment section

1шт.

17

L32845

O-RING

O-RING - seal

2шт.

18

D44099

RING

BACKUP RING - o-ring

2шт.

19

D44101

PLATE

- top

1шт.

20

D44100

PLATE

- bottom

1шт.

21

D44102

RING

RETAINING RING - seal

2шт.

22

L35781

O-RING,4-1/4" ID x 4-7/16" OD x 3/32"

- seal

1шт.

Part of Flange Kit P/N N6842

1шт.

23

D42856

PLATE

- pressure

2шт.

24

NSS

NOT SOLD SEPARAT

BODY - equipment section, Includes: Ref. 25

1шт.

25

L32840

BUSHING

- body

2шт.

26

L35776

PLUG

- body, discharge seal drain

1шт.

Part of Flange Kit P/N N6842

1шт.

D77431

VALVE

STEERING SECTION - pump, also includes Refs. 2 and 5 on Fig. 8-404, Includes: Ref. 27 - 43

1шт.

27

L32844

COUPLING

- splined, also comes with D77432 equipment section

1шт.

28

A36277

SNAP RING,1.125", Int, #112

also comes with D77432 equipment section 1.125", Int, #112

2шт.

30

L35782

O-RING,0.103" Thk x 4.487" ID, -157, Cl 6, 90 Duro

- section seal, also comes with D77432 equipment section

2шт.

31

D41414

PIN

DOWEL PIN - pump

6шт.

32

S105780

BODY

- steering section, Includes: Ref. 33

1шт.

33

L32840

BUSHING

- body

2шт.

34

L32845

O-RING

O-RING - seal

2шт.

35

D44102

RING

RETAINING RING - seal

2шт.

36

D44099

RING

BACKUP RING - o-ring

2шт.

37

D44101

PLATE

- top

1шт.

38

D44100

PLATE

- bottom

1шт.

39

D42856

PLATE

- pressure

2шт.

40

NSS

NOT SOLD SEPARAT

DRIVEN GEAR - steering section

1шт.

41

NSS

NOT SOLD SEPARAT

DRIVE GEAR - steering section

1шт.

42

NSS

NOT SOLD SEPARAT

BODY - steering section

1шт.

43

L32840

BUSHING

- body

2шт.

N6842

PACKAGE

KIT - flange, Includes: Ref. 8, 9, 11, 12, 22 and 26

1шт.

29

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Stud seal

8шт.
